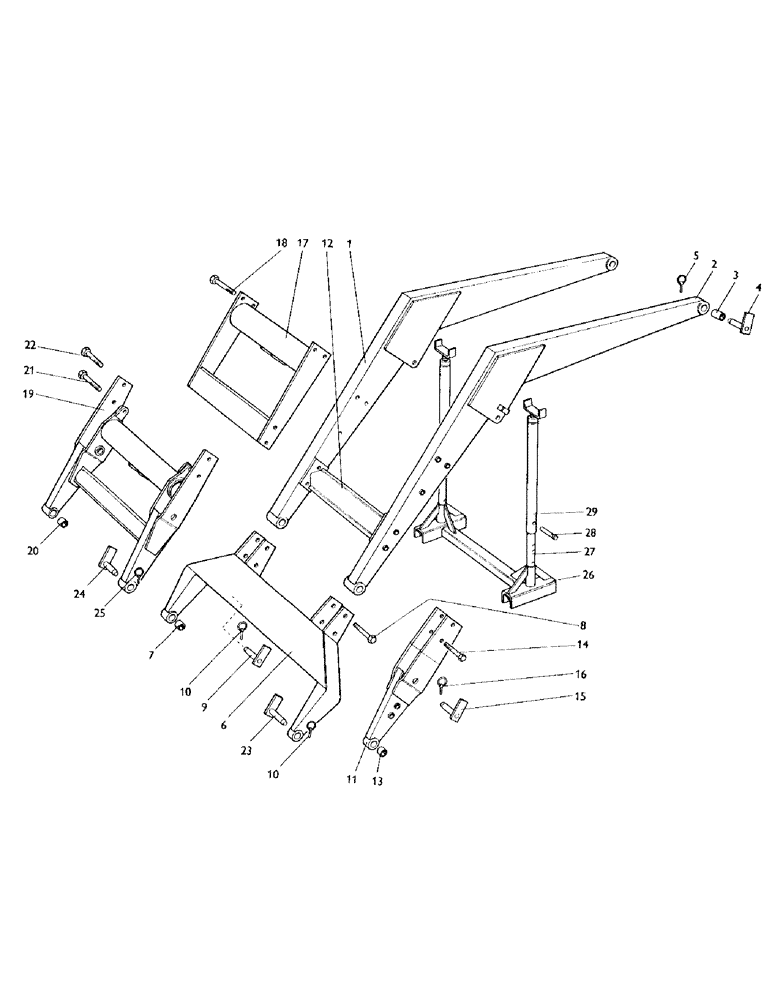

Запчасти Case IH LF-SERIES (06) - BOOM, LF12 MODEL 1212, 1210, LF9 MODEL 996, 995, 990, LF8 MODEL 885

1

K771193

BOOM

right-hand, LF12 (1212, 1210)

1шт.

1

K771876

BOOM

right-hand, LF9 (996-5, 990)

1шт.

1

K771974

BOOM

right-hand, LF8 (885)

1шт.

2

K771192

SUPPORT

BOOM, left-hand, LF12 (1212, 1210)

1шт.

2

K771885

BOOM

left-hand, LF9 (996-5, 990)

1шт.

2

K771985

BOOM

left-hand, LF8 (885)

1шт.

3

K690719

BUSHING

TENSION BUSH - booms

4шт.

7

K771251

FRAME

PIVOT PIN -, Serial Range: boom-supports

2шт.

5

K691509

PIN

LINCH PIN AND RING

2шт.

K771626

FASTENER

SPRING CLIP

2шт.

6

K771323

FORK

BOOM FORK, loaders with mechanical dump, LF12 (1212, 1210), LF9 (996-5, 990)

1шт.

6

K772037

FORK

BOOM FORK, loaders with mechanical dump, LF8 (885)

1шт.

7

K690721

BUSHING

TENSION BUSH - fork, loaders with mechanical dump

2шт.

8

K691831

BOLT

5/8 UNC x 5 in., fork to boom, loaders with mechanical dump

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., fork to boom, loaders with mechanical dump

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Fork to boom, loaders with mechanical dump 5/8"-11, G5

4шт.

9

K771251

FRAME

PIVOT PIN, fork to boom, loaders with mechanical dump

2шт.

10

K691509

PIN

LINCH PIN AND RING, fork to boom, loaders with mechanical dump

2шт.

11

K773160

BOOM

EXTENSION, loaders with mechanical dump

2шт.

12

K772954

STAY

CROSS MEMBER, loaders with mechanical dump

1шт.

13

K690719

BUSHING

TENSION BUSH, loaders with mechanical dump

2шт.

14

K691831

BOLT

5/8 UNC x 5 in., extension to boom, loaders with mechanical dump

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., extension to boom, loaders with mechanical dump

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Extension to boom, loaders with mechanical dump 5/8"-11, G5

4шт.

15

K757263

ARM

PIVOT PIN, extension to boom, loaders with mechanical dump

2шт.

K14687

WASHER

1-1/8 in., extension to boom, loaders with mechanical dump

4шт.

16

K691509

PIN

LINCH PIN AND RING, extension to boom, loaders with mechanical dump

2шт.

17

K771857

STAY

CROSS MEMBER, loaders with hydraulic dump

1шт.

K772849

STAY

SHIM, loaders with hydraulic dump

1шт.

18

K691830

BOLT

5/8 UNC x 4-1/4 in., loaders with hydraulic dump

10шт.

K19485

WASHER

SPRING WASHER, 5/8 in., loaders with hydraulic dump

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Loaders with hydraulic dump 5/8"-11, G5

10шт.

19

K772935

BOOM

EXTENSION, loaders with hydraulic dump

1шт.

20

K690719

BUSHING

TENSION BUSH, loaders with hydraulic dump

2шт.

21

K691852

BOLT

5/8 UNC x 5-1/4 in., extension to boom, loaders with hydraulic dump

2шт.

22

K691831

BOLT

5/8 UNC x 5 in., extension to boom, loaders with hydraulic dump

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in., extension to boom, loaders with hydraulic dump

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Extension to boom, loaders with hydraulic dump 5/8"-11, G5

4шт.

23

K757260

PIN

PIVOT PIN -, Serial Range: fork-bucket

2шт.

24

K771251

FRAME

PIVOT PIN -, Serial Range: boom-bucket

2шт.

25

K691509

PIN

LINCH PIN AND RING

2шт.

26

K773300

STAND - loader boom, loader stand ULF37

1шт.

27

K773308

ADJUSTMENT TUBE, loader stand ULF37

2шт.

28

K773313

PIN

loader stand ULF37

2шт.

K771626

FASTENER

SPRING CLIP, loader stand ULF37

2шт.

29

K773375

ADJUSTING SCREW, loader stand ULF37

2шт.
