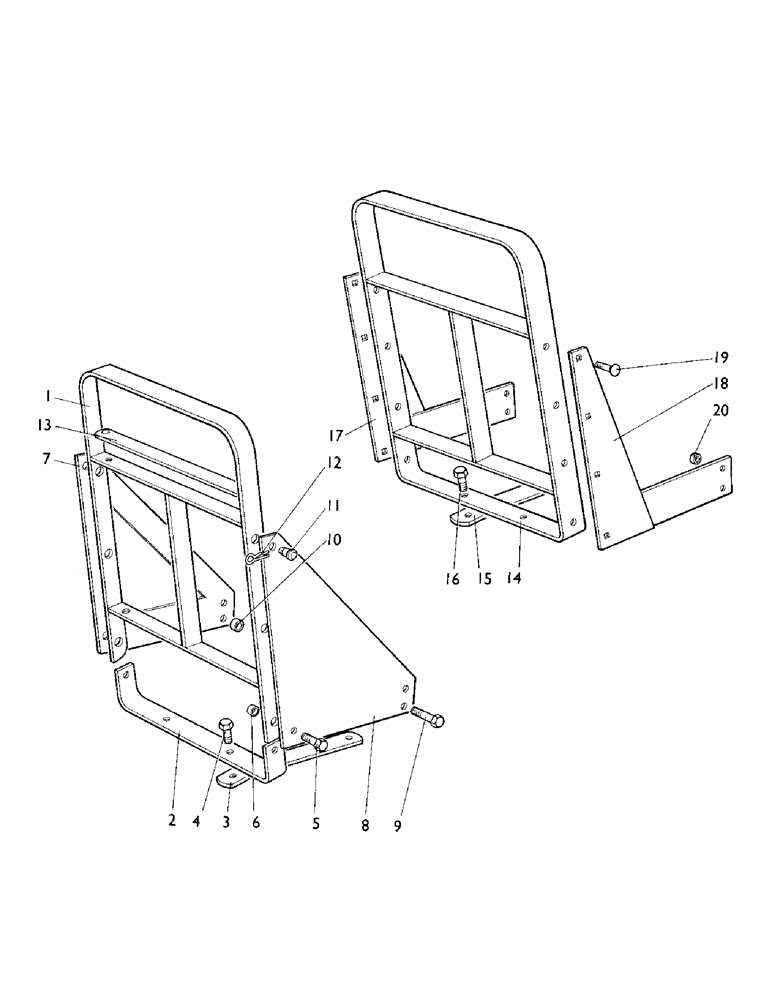

Запчасти Case IH LF-SERIES (04) - RADIATOR GUARDS ULF 35 & ALTERNATIVE UNITS TO ULF 35
№
Артикул
Название
Примечание
Количество
RADIATOR GUARDS, ULF35/12 (1212, 1210), ULF35/9 (996-5, 990), ULF35/8 (885)
1шт.
1
K771282
GUARD
RADIATOR GUARD, ULF35/12 (1212, 1210)
1шт.
1
K772244
GUARD
RADIATOR GUARD, ULF35/9 (996-5, 990)
1шт.
1
K772498
RADIATOR
GUARD, ULF35/8 (885)
1шт.
2
K771284
FRAME
LOWER MEMBER, ULF35/12 (1212, 1210)
1шт.
2
K772249
FRAME
LOWER MEMBER, ULF35/9 (996-5, 990)
1шт.
2
K772509
FRAME
LOWER MEMBER, ULF35/8 (885)
1шт.
3
K766646
STAY
LOWER STAY, ULF35/12 (1212, 1210)
2шт.
4
K691817
SCREW
SETSCREW, 5/8 UNC x 1-3/4 in., stay fixing, ULF35/12 (1212, 1210)
6шт.
K19485
WASHER
SPRING WASHER, 5/8 in., stay fixing, ULF35/12 (1212, 1210)
6шт.
5
K691909
BOLT
1/2 UNC x 1-3/4 in., special, Serial Range: guard-supports
2шт.
6
K772253
BUSHING
BUSH, Serial Range: guard-supports
2шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in., Serial Range: guard-supports
2шт.
7
K771256
SUPPORT
right-hand, ULF35/12 (1212, 1210)
1шт.
7
K772247
SUPPORT
right-hand, ULF35/9 (996-5, 990)
1шт.
7
K772506
SUPPORT
right-hand, ULF35/8 (885)
1шт.
8
K771257
SUPPORT
left-hand, ULF35/12 (1212, 1210)
1шт.
8
K772246
SUPPORT
left-hand, ULF35/9 (996-5, 990)
1шт.
8
K772507
SUPPORT
left-hand, ULF35/8 (885)
1шт.
9
K601360
BOLT
5/8 UNC x 2-1/2 in., supports to tractors, ULF35/12 (1212, 1210), ULF35/9 (996-5, 990)
4шт.
9
K601360
BOLT
5/8 UNC x 2-1/2 in., supports to tractors, ULF35/8 (885)
6шт.
K601355
BOLT
5/8 UNC x 1-7/8 in., supports to tractors, ULF35/9 (996-5, 990)
2шт.
10
K766408
COLLAR
DISTANCE PIECE, supports to tractors, ULF35/12 (1212, 1210), ULF35/9 (996-5, 990)
4шт.
10
K766408
COLLAR
DISTANCE PIECE, supports to tractors, ULF35/8 (885)
6шт.
K626855
WASHER
5/8 in., supports to tractors, ULF35/8 (885)
6шт.
K19485
WASHER
SPRING WASHER, 5/8 in., ULF35/12 (1212, 1210), ULF35/9 (996-5, 990)
4шт.
K19485
WASHER
SPRING WASHER, 5/8 in., supports to tractor, ULF35/8 (885)
6шт.
K773254
BUSHING
LOCATING BOSS, tractors without loader, ULF35/9 (996-5, 990)
2шт.
K601362
BOLT
5/8 UNC x 2-3/4 in., tractors without loader, ULF35/9 (996-5, 990)
2шт.
11
K770632
PIN
2шт.
12
K771626
FASTENER
SPRING CLIP
6шт.
13
K771593
STAY
DIAGONAL STAY, ULF35/12 (1212, 1210), ULF35/9 (996-5, 990) (ULF36/9-12)
2шт.
13
K772513
STAY
DIAGONAL STAY, ULF35/8 (885) (ULF36/8)
2шт.
ALTERNATIVE UNITS TO ULF35 ULS18/12 (1212, 1210), ULS18/9 (996-5, 990), ULS18/7 (885)
1шт.
14
K766618
RADIATOR
GUARD, ULS18/12 (1212, 1210)
1шт.
14
K766685
FRAME
RADIATOR GUARD, ULS18/9 (996-5, 990)
1шт.
14
K766696
FRAME
RADIATOR GUARD, ULS18/7 (885)
1шт.
15
K766646
STAY
LOWER STAY, ULS18/12 (1212, 1210)
2шт.
16
K691817
SCREW
SETSCREW, 5/8 UNC x 1-3/4 in., ULS18/12 (1212, 1210)
6шт.
K19485
WASHER
SPRING WASHER, 5/8 in., ULS18/12 (1212, 1210)
6шт.
17
K766621
SUPPORT
right-hand, ULS18/12 (1212, 1210)
1шт.
17
K766687
FRAME
SUPPORT, right-hand, ULS18/9 (996-5, 990)
1шт.
17
K766699
FRAME
SUPPORT, right-hand, ULS18/7 (885)
1шт.
18
K766622
SUPPORT
left-hand, ULS18/12 (1212, 1210)
1шт.
18
K766686
FRAME
SUPPORT, left-hand, ULS18/9 (996-5, 990)
1шт.
18
K766698
FRAME
SUPPORT, left-hand, ULS18/7 (885)
1шт.
19
K691479
BOLT
COACH BOLT, 1/2 UNC, x 1-3/8 in., supports to guard, ULS18/12 (1212, 1210)
8шт.
19
K691479
BOLT
COACH BOLT, 1/2 UNC x 1-3/8 in., supports to guard, ULS18/9 (996-5, 990), ULS18/7 (885)
6шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in., supports to guard, ULS18/12 (1212, 1210)
8шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in., supports to guard, ULS18/9 (996-5, 990), ULS18/7 (885)
6шт.
20
K766408
COLLAR
DISTANCE PIECE, Serial Range: supports-tractor
4шт.
K601358
BOLT
5/8 UNC x 2-1/4 in., Serial Range: supports-tractor
4шт.
K19485
WASHER
SPRING WASHER, 5/8 in., Serial Range: supports-tractor
4шт.
Выбрано товаров: 59
