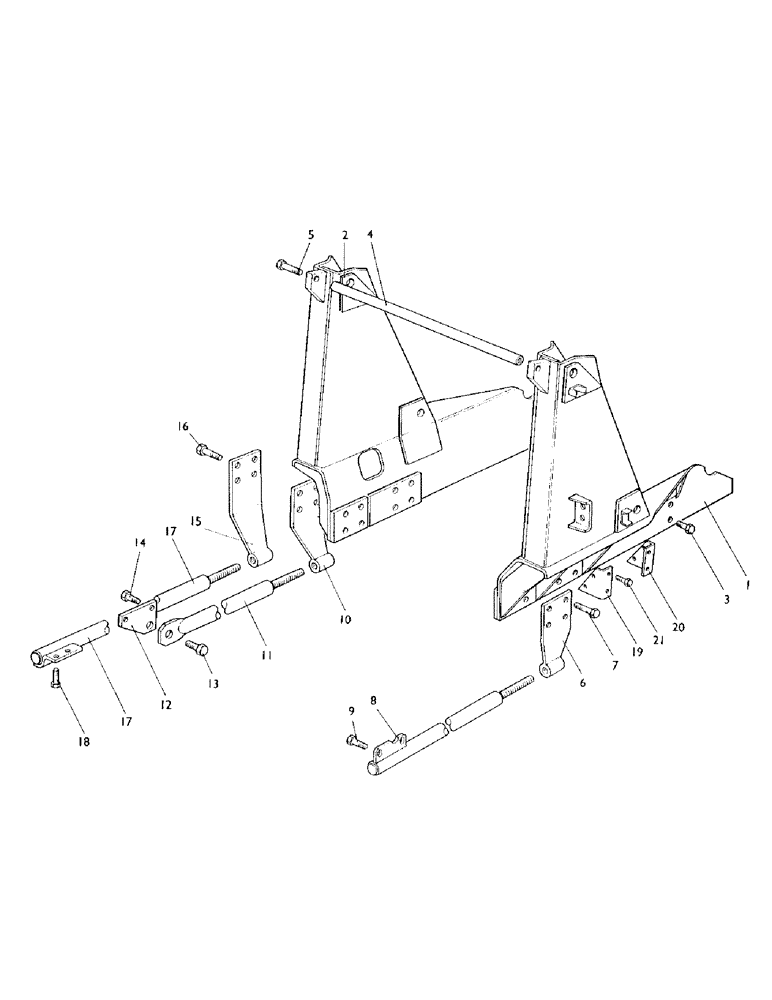

Запчасти Case IH LF-SERIES (02) - SUPPORT FRAME, LF12 FOR MODELS 1212, 1210, LF9 FOR MODEL 995, 9966, 990, LF8 FOR MODEL 885

1

K771222

SUPPORT

FRAME, right-hand, LF12 (1212, 1210)

1шт.

1

K772060

SUPPORT

FRAME, right-hand, LF9 (995-6, 990)

1шт.

1

K772092

SUPPORT

FRAME, right-hand, LF8 (885)

1шт.

2

K771223

SUPPORT

FRAME, left-hand, LF12 (1212, 1210)

1шт.

2

K772059

SUPPORT

FRAME, left-hand, LF9 (995-6, 990)

1шт.

2

K772093

SUPPORT

FRAME, left-hand, LF8 (885)

1шт.

3

K691817

SCREW

SETSCREW, 5/8 UNC x 1-3/4 in., support frames to tractor, LF12 (1212, 1210)

12шт.

3

K691817

SCREW

SETSCREW, 5/8 UNC x 1-3/4 in., support frames to tractor, LF9 (995-6, 990)

8шт.

3

K691817

SCREW

SETSCREW, 5/8 UNC x 1-3/4 in., support frames to tractor, LF8 (885)

4шт.

3

K692037

SCREW

SETSCREW, 5/8 UNC x 2-3/8 in., support frames to tractor, LF9 (995-6, 990)

4шт.

K764670

SUPPORT

DISTANCE PIECE, support frames to tractor, LF8 (885)

6шт.

3

K691836

BOLT

5/8 UNC x 3 in., support frames to tractor, LF8 (885)

6шт.

4

K772186

SHAFT

CROSS STAY, LF12 (1212, 1210), LF9 (995-6, 990)

1шт.

4

K773631

SHAFT

CROSS STAY, LF8 (885)

1шт.

5

K601360

BOLT

5/8 UNC x 2-1/2 in.

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in., LF12 (1212, 1210), LF9 (995-6, 990)

14шт.

K19485

WASHER

SPRING WASHER, 5/8 in., LF8 (885)

12шт.

6

K766474

BRACKET

- right-hand stabilizer, LF12 (1212, 1210)

1шт.

7

K601360

BOLT

5/8 UNC x 2-1/2 in., brackets to tractor, LF12 (1212, 1210) LF9 (995-6, 990)

8шт.

K19485

WASHER

SPRING WASHER, 5/8 in, brackets to tractor, LF12 (1212, 1210), LF9 (995-6, 990)

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Brackets to tractor, LF12 (1212, 1210) 5/8"-11, G5

2шт.

8

K766477

STAY

STABILIZER BAR, LF12 (1212, 1210)

2шт.

K607042

NUT

7/8 UNC, Serial Range: bars-brackets

4шт.

K691861

WASHER

7/8 in., Serial Range: bars-brackets

4шт.

9

K691817

SCREW

SETSCREW, 5/8 UNC x 1-3/4 in., bars to tractor, LF12 (1212, 1210)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., bars to tractor, LF9 (995-6, 990)

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Bars to tractor, LF8 (885) 5/8"-11, G5

4шт.

K773376

STAY

BRACKET - right-hand stabilizer, LF9 (995-6, 990)

1шт.

10

K773378

STAY

BRACKET - left-hand stabilizer, LF9 (995-6, 990)

1шт.

11

K773380

STAY

STABILIZER BAR, LF9 (995-6, 990)

2шт.

12

K765974

STAY

ATTACHMENT PLATE, LF9 (995-6, 990)

2шт.

13

K692041

SCREW

SETSCREW, 1 in. UNC x 2-1/4 in., plate to bars, LF9 (995-6, 990)

2шт.

K692040

WASHER

SPRING WASHER, 1 in., plates to bars, LF9 (995-6, 990)

2шт.

K607041

NUT

1 in. UNC, plates to bars, LF9 (995-6, 990)

2шт.

14

K691849

BOLT

5/8 UNC x 2 in., plates to tractor, LF9 (995-6, 990)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., plates to tractor, LF9 (995-6, 990)

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Plates to tractor, LF9 (995-6, 990) 5/8"-11, G5

4шт.

K772844

STAY

BRACKET - right-hand stabilizer, LF8 (885)

1шт.

15

K772846

STAY

BRACKET - left-hand stabilizer, LF8 (885)

1шт.

16

K691836

BOLT

5/8 UNC x 3 in., brackets to tractor, LF8 (885)

4шт.

K601360

BOLT

5/8 UNC x 2-1/2 in., brackets to tractor, LF8 (885)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., brackets to tractor, LF8 (885)

8шт.

K626855

WASHER

5/8 in., brackets to tractor, LF8 (885)

6шт.

K772842

STAY

STABILIZER BAR, right-hand, LF8 (885)

1шт.

17

K772839

STAY

STABILIZER BAR, left-hand, LF8 (885)

1шт.

18

K691860

BOLT

1/2 UNC x 3 in., bars to tractor, LF8 (885)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in., bars to tractor, LF8 (885)

4шт.

19

K772697

SPARE PART

BRACKET, rear - toolbox, LF12 (1212, 1210)

1шт.

20

K772696

SPARE PART

BRACKET, front - toolbox, LF12 (1212, 1210)

1шт.

21

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW, 3/8 UNC x 1-1/4 in., LF12 (1212, 1210)

8шт.

280136

NUT,3/8"-16, G8

LF12 (1212, 1210) 3/8"-16, G8

4шт.
