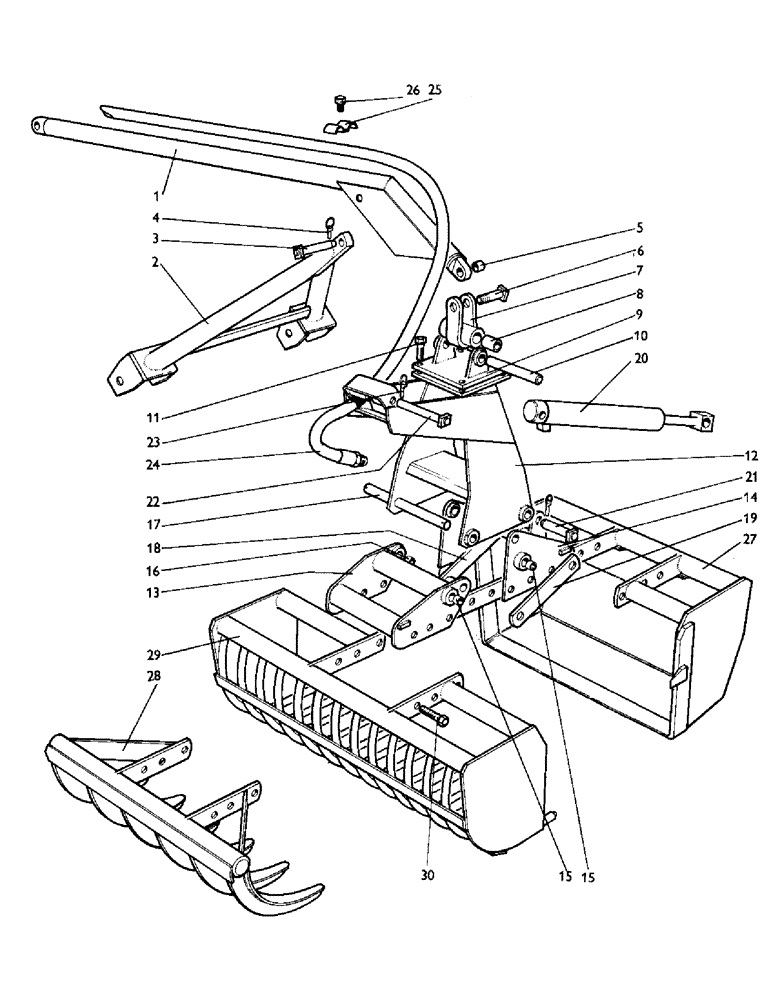

Запчасти Case IH LF-SERIES (32) - EXTENSION JIB AND GRAB, LOADERS WITH HYDRAULIC DUMP, OPTIONAL EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
K773369
X
EXTENSION JIB, ULF39/H
1шт.
2
K768325
SUPPORT - JIB, ULF39/H
1шт.
3
K768341
PIN
PIVOT PIN, 1 x 3-13/16 in., ULF39/H
1шт.
4
K691509
PIN
LINCH PIN AND RING, ULF39/H
1шт.
5
K691258
BUSHING
TENSION BUSH - JIB
1шт.
6
K769298
BOLT
1 in. UNC, special
1шт.
K19477
SPARE PART
WASHER, 1 in.
1шт.
K752684
COLLAR
WASHER, 1 in. x 1/4 in., special
1шт.
K607309
NUT
NYLOC NUT, 1 in. UNC
1шт.
7
K768365
JOINT
UNIVERSAL JOINT
1шт.
K40144
LOCKSCREW, 5/8 BSF
2шт.
8
K691177
BUSHING
TENSION BUSH - universial joint
2шт.
9
K767855
BRACKET
SWIVEL BRACKET
1шт.
10
K765688
JOINT
PIVOT PIN, 1-1/4 x 7-3/8 in.
1шт.
K691411
PIN
SPRING PIN, 10 x 50 MM
1шт.
11
K601204
BOLT
5/8 UNC x 2 in.
4шт.
K19485
WASHER
SPRING WASHER, 5/8 in.
4шт.
K607006
NUT
5/8 UNC
4шт.
12
K768521
FRAME
1шт.
13
K767818
ROCKER
ARM, left-hand
1шт.
14
K768524
ROCKER LEVER
ROCKER ARM, right-hand
1шт.
15
K691578
BUSHING
TENSION BUSH - rocker arms
4шт.
16
K691258
BUSHING
TENSION BUSH
4шт.
17
K767859
SHAFT
PIVOT SHAFT
2шт.
K690955
PIN
SPRING PIN, 10 x 60 MM
4шт.
18
K768151
LINK
CONNECTING LINK
2шт.
K690961
PIN
SPRING PIN, 6.5 x 38 MM
4шт.
19
K767843
LINK
CONNECTING LINK
2шт.
20
K772284
CYLINDER ASSY.
RAM CYLINDER ASSEMBLY - bucket dump and grab, See page 10
1шт.
21
K767332
PIN
PIVOT PIN, 1 in. x 3-13/16 in.
1шт.
22
K768004
PIN
PIVOT PIN, 1 in. x 6-3/16 in.
1шт.
23
K691509
PIN
LINCH PIN AND RING
2шт.
24
K768554
PIPE
3/4 UNF x 100 in.
2шт.
25
K762949
PIPE
CLIP
2шт.
26
K602704
SCREW
SETSCREW, 1/4 UNC x 7/8 in.
2шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in.
2шт.
27
K767815
BUCKET
CLAMSHELL BUCKET, UADD12
2шт.
28
K767850
FORK
MANURE SILAGE TINES, UADD11
2шт.
29
K768288
FRAME
ROOT CROP TINES, UADD13
2шт.
30
K603410
SCREW
SETSCREW, 3/4 UNC x 2 in.
12шт.
K19486
WASHER, LOCK
SPRING WASHER, 3/4 in.
12шт.
K607007
NUT
3/4 UNC
12шт.
Выбрано товаров: 42
