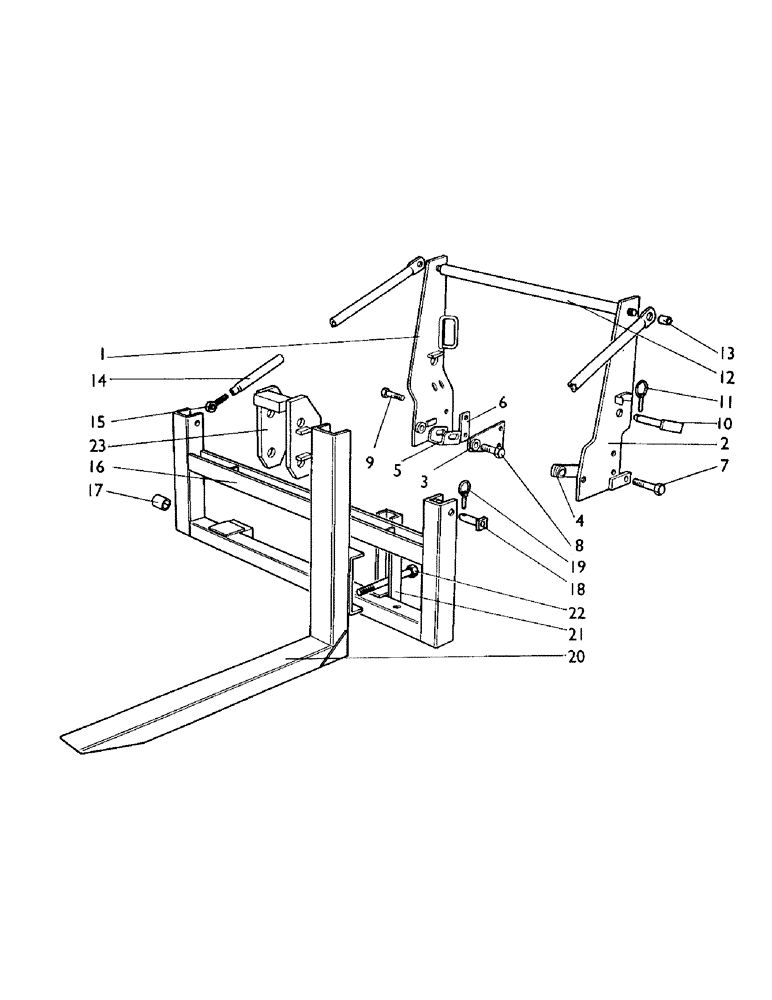

Запчасти Case IH LF-SERIES (30) - PARALLEL FORK LIFT ATTACHMENT, LOADERS W/HYDRAULIC DUMP, OPTIONAL EQUIPMENT

1a

K772474

SUPPORT

PLATE, right-hand, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

1шт.

1b

K772471

SUPPORT

PLATE, right-hand, ULF41/8H (885)

1шт.

2a

K773319

SUPPORT

PLATE, left-hand, ULF41/12H (1212, 1210), ULF41/9H (996-5 990)

1шт.

2b

K772490

SUPPORT

PLATE, left-hand, ULF41/8H (885)

1шт.

3

K773323

PLATE

CLAMPING PLATE, right-hand

1шт.

4a

K773321

PLATE

CLAMPING PLATE, left-hand, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

1шт.

4b

K773323

PLATE

CLAMPING PLATE, left-hand, ULF41/8H (885)

1шт.

5a

K773833

ADJUSTER

BRACKET, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

2шт.

5b

K773823

BRACKET

ADJUSTER BRACKET, ULF41/8H (885)

2шт.

6

K773325

PLATE

SPACING PLATE

2шт.

7

K600498

BOLT

3/8 UNC x 5-3/4 in., support plates to loader, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

2шт.

7

K600498

BOLT

3/8 UNC x 5-3/4 in., support plates to loader, ULF41/8H (885)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., support plates to loader, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., support plates to loader, ULF41/8H (885)

4шт.

280136

NUT,3/8"-16, G8

Support plates to loader, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990) 3/8"-16, G8

2шт.

280136

NUT,3/8"-16, G8

Support plates to loader, ULF41/8H (885) 3/8"-16, G8

4шт.

8

K601358

BOLT

5/8 UNC x 2-1/4 in., support, Serial Range: plates-loader

4шт.

9

K691963

BOLT

5/8 UNC x 6-1/2 in., support plates to loader, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

1шт.

K626855

WASHER

5/8 in., support, Serial Range: plates-loader

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., support plates to loader, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990)

5шт.

K19485

WASHER

SPRING WASHER, 5/8 in., support plates to loader, ULF41/8H (885)

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Support plates to loader, ULF41/12H (1212, 1210), ULF41/9H (996-5, 990) 5/8"-11, G5

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Support plates to loader, ULF41/8H (885) 5/8"-11, G5

4шт.

10

K772481

FORK

PIVOT PIN - boom

2шт.

11

K691509

PIN

LINCH PIN AND RING

2шт.

12

K772477

SHAFT

CROSS SHAFT

1шт.

13

K759952

SHAFT

BUSH

2шт.

K19476

WASHER

3/4 in.

6шт.

K607392

NUT

PHILIDAS NUT, 3/4 UNC

2шт.

14a

K772485

STAY

TUBE, ULF41/12H (1212, 1210)

2шт.

14b

K772479

STAY

TUBE, ULF41/9H (996-5, 990)

2шт.

14c

K772488

STAY

TUBE, ULF41/8H (885)

2шт.

15

K768060

BOLT

EYE BOLT, 3/4 UNC

2шт.

K617057

NUT

LOCKNUT, 3/4 UNC

2шт.

16

K769032

X

MOUNTING FRAME

1шт.

17

6K90719

TENSION BUSH

2шт.

18

K769039

PIN

PIVOT PIN

2шт.

19

K691509

PIN

LINCH PIN AND RING

2шт.

20

K759960

FORK

2шт.

21

K759985

BAR

CLAMP BAR

2шт.

22

K691855

BOLT

3/4 UNC x 5-3/4 in.

4шт.

K19486

WASHER, LOCK

SPRING WASHER, 3/4 in.

4шт.

23

K773334

LINK

TILTING LINK, right-hand

1шт.

K773335

LINK

TILTING LINK, left-hand

1шт.

K691742

FITTING

ADAPTOR, 1/2 BSP-3/4 UNF, Serial Range: pipes-coupling

2шт.

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING, 3/4 in. int. dia., pipes to couplings

2шт.

K692030

FITTING

UNION, 3/4 UNF, pipes to steel pipes

2шт.

K692026

NUT

LOCKNUT, 3/4 UNF, pipes to steel pipes

2шт.
