Запчасти Case IH LF-SERIES (28) - ANGLE DOZER, LOADERS W/HYDRAULIC DUMP, LF12H MDL 1212, 1210, LF9H MDL 996, 995, 990, LF8H MDL885

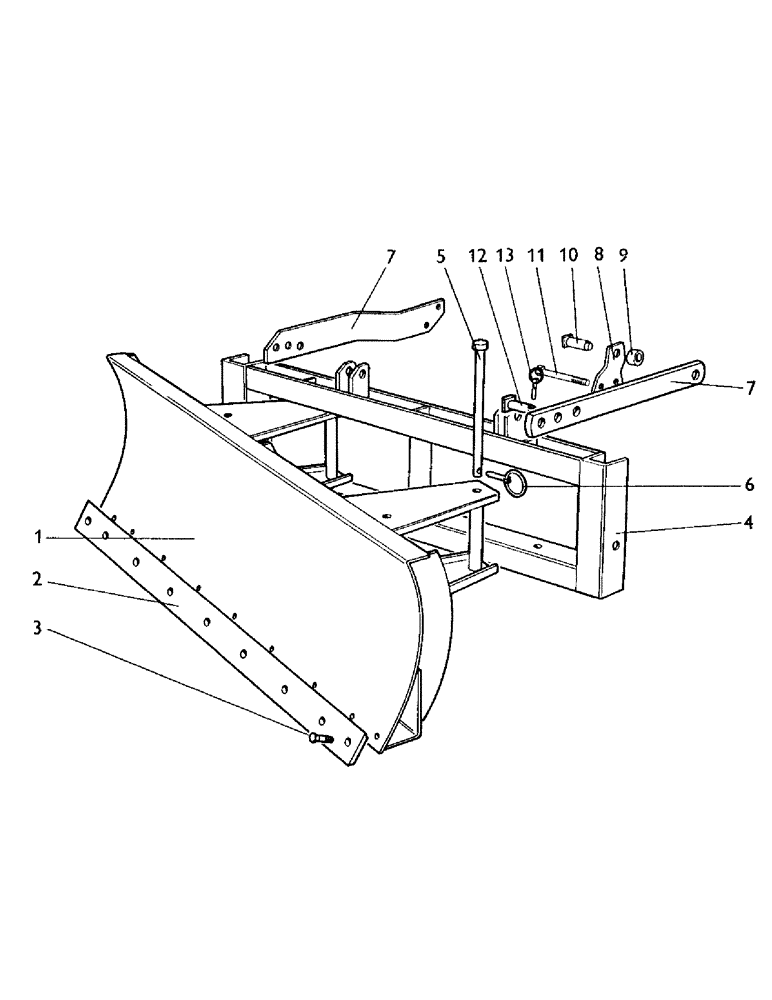

ANGLE DOZER - LOADERS WITH HYDRAULIC DUMP, LF12H (1212, 1210)

1шт.

1

K767515

BLADE

DOZER BLADE, 7 ft., LF12H (1212, 1210), LF9H (996-5, 990), ULF/12-9H

1шт.

1

K765760

BLADE

DOZER BLADE, 6 ft., LF8H (885), ULF43/8H

1шт.

2

K767518

STRIP

CUTTING STRIP, 7 ft., LF12H (1212, 1210), LF9H (996-5, 990)

1шт.

2

K750875

STRIP

CUTTING STRIP, 6 ft., LF8H (885)

1шт.

3

K750879

BOLT

PLOUGH BOLT, 3/8 UNC x 1-1/8 in., strip to blade, LF12H (1212, 1210), LF9H (996-5, 990)

10шт.

3

K750879

BOLT

PLOUGH BOLT, 3/8 UNC x 1-1/8 in., strip to blade, LF8H (885)

9шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., strip to blade, LF12H (1212, 1210), LF9H (996-5, 990)

10шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., strip to blade, LF8H (885)

9шт.

280136

NUT,3/8"-16, G8

Strip to blade, LF12H (1212, 1210), LF9H (996-5, 990) 3/8"-16, G8

10шт.

280136

NUT,3/8"-16, G8

Strip to blade, LF8H (885) 3/8"-16, G8

9шт.

4

K767510

BRACKET

MOUNTING FRAME

1шт.

5

K970102

PIN

LOCATING PIN

2шт.

6

K691509

PIN

LINCH PIN AND RING

2шт.

ANGLE DOZER - LOADERS WITH MECHANICAL DUMP LF12M (1212, 1210), LF9M (996-5, 990), LF8M (885)

1шт.

1

K767608

DOZER BLADE, 7 ft., LF12M (1212, 1210), LF9H (996-5, 990), ULF43/12-9M

1шт.

1

K758761

KIT

DOZER BLADE, 6 ft., LF8M (885), ULF43/8M

1шт.

2

K767518

STRIP

CUTTING STRIP, 7 ft., LF12M (1212, 1210), LF9M (996-5, 990)

1шт.

2

K750875

STRIP

CUTTING STRIP, 6 ft., LF8M (885)

1шт.

3

K750879

BOLT

PLOUGH BOLT, 3/8 UNC x 1-1/8 in., strip to blade, LF12M (1212, 1210), LF9M (996-5, 990)

10шт.

3

K750879

BOLT

PLOUGH BOLT, 3/8 UNC x 1-1/8 in., strip to blade, LF8M (885)

9шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., strip to blade, LF12M (1212, 1210), LF9M (996-5, 990)

10шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., strip to blade, LF8M (885)

9шт.

280136

NUT,3/8"-16, G8

Strip to blade, LF12M (1212, 1210), LF9M (996-5, 990) 3/8"-16, G8

10шт.

280136

NUT,3/8"-16, G8

Strip to blade, LF8M (885) 3/8"-16, G8

9шт.

4

K767594

MOUNTING FRAME, LF12M (1212, 1210), LF9M (996-5, 990)

1шт.

4

K764086

TOOL

MOUNTING FRAME, LF8M (885)

1шт.

5

K970102

PIN

LOCATING PIN

2шт.

6

K691509

PIN

LINCH PIN AND RING

2шт.

7

K773417

STAY, LF12M (1212, 1210), LF9M (996-5, 990), ULF44/12-9M

2шт.

7

K772199

STAY, right-hand, LF8M (885), ULF44/8M

1шт.

7

K772201

STAY, left-hand, LF8M (885)

1шт.

8

K772643

BRACKET, LF12M (1212, 1210), LF9M (996-5, 990)

4шт.

9

K773418

BOSS, LF12M (1212, 1210), LF9M (996-5, 990)

2шт.

10

K768002

PIN

PIVOT PIN, LF12M (1212, 1210), LF9M (996-5, 990)

2шт.

11

K691841

BOLT, 5/8 UNC x 5-1/2 in., Serial Range: brackets-boom

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in., Serial Range: brackets-boom

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Brackets to boom 5/8"-11, G5

4шт.

12

K767600

STAY

PIVOT PIN

2шт.

13

K691509

PIN

LINCH PIN AND RING

2шт.
