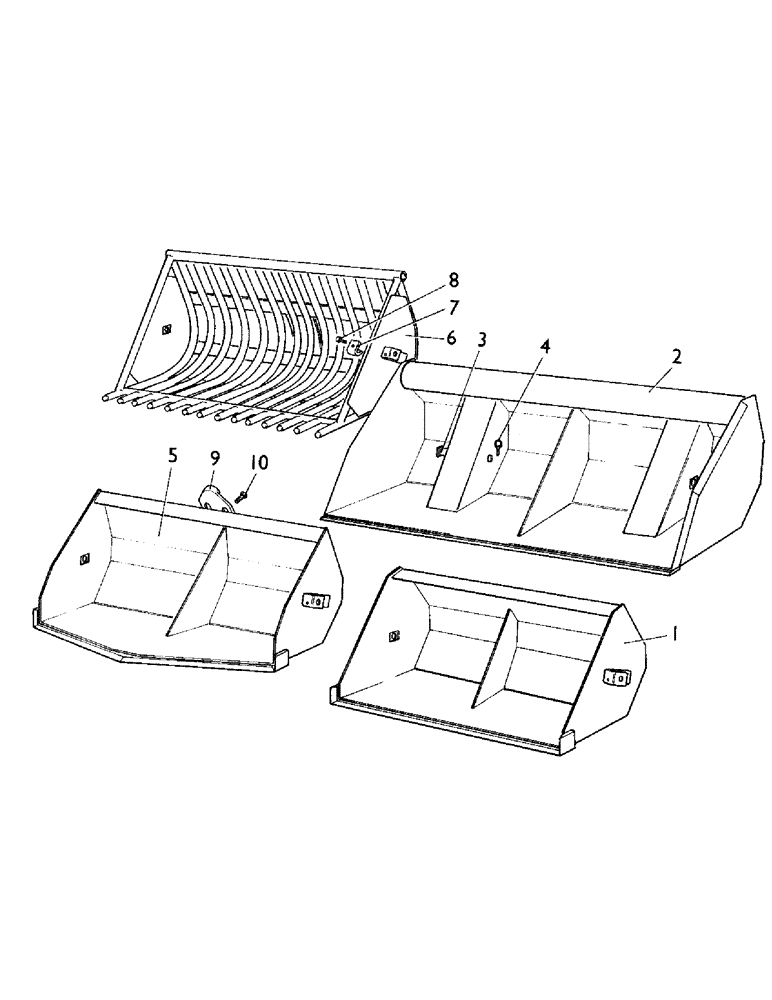

Запчасти Case IH LF-SERIES (26) - BUCKETS, LOADERS WITH MECHANICAL DUMP, LF12H MDL 1212, 1210, LF9M MDL 996, 995, 990, LF8M MDL, 885

1

K767377

BUCKET

DIRT BUCKET, 11 cu. ft., 4 ft. wide, LF12M (1212, 1210), LF9M (996-5, 990), ULF24/12-9M

1шт.

1

K767109

DIRT BUCKET, 9 cu. ft., 3 ft. 6 in. wide, LF8M (885), ULF24/8M)

1шт.

K768373

STRIP

CUTTING STRIP (Part of 767377), LF12M (1212, 1210), LF9M (996-5, 990)

1шт.

K767790

STRIP

CUTTING STRIP (Part of 767109), LF8M (885)

1шт.

2

K767590

LIGHT MATERIALS BUCKET, 6 ft. wide, LF12M (1212, 1210), LF9M (996-5, 990), ULF27/12-9M

1шт.

2

K768988

LIGHT MATERIALS BUCKET, 6 ft. wide, LF8M (885), ULF27/8M

1шт.

K760982

PLATE

CUTTING STRIP (Part of 767590 and 768998)

1шт.

3

K761304

BUCKET

PIVOT PIN -, Serial Range: bucket-boom

2шт.

4

K691509

PIN

LINCH PIN AND RING

2шт.

5

K766587

V-EDGE DIRT BUCKET, 4 ft. wide., LF12M (1212, 1210), LF9M (996-5, 990), UFL26/12-9M

1шт.

5

K761934

V-EDGE DIRT BUCKET, 3 ft. 6 in. wide, LF8M (885), ULF26/8M

1шт.

K767532

STRIP

CUTTING STRIP, right-hand, parts of 766587, LF12M (1212, 1210), LF9M (996-5, 990)

1шт.

K767533

STRIP

CUTTING STRIP, left-hand, parts of 766587, LF12M (1212, 1210), LF9M (996-5, 990)

1шт.

K767489

STRIP

CUTTING STRIP, right-hand, parts of 761934, LF8M (885)

1шт.

K767490

STRIP

CUTTING STRIP, left-hand, parts of 761934, LF8M (885)

1шт.

6

K766605

ROOT CROP BUCKET, 4 ft. wide, LF12M (1212, 1210), LF9M (996-5, 990), ULF28/12-9M

1шт.

6

K762162

ROOT CROP BUCKET, 3 ft. 6 in. wide, LF8M (885), ULF28/8M

1шт.

7

K757292

FORK

STOP BRACKET

2шт.

8

K603305

BOLT

SETSCREW, 5/8 UNC x 1-3/8 in., Serial Range: brackets-bucket

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in., Serial Range: brackets-bucket

2шт.

9

K772195

BUCKET

CATCH - standard boom

1шт.

9

K773550

BUCKET

CATCH - extended boom

1шт.

10

K691819

SCREW

SETSCREW, 7/16 UNC x 1-3/8 in., Serial Range: catch-bucket

4шт.

K626314

WASHER

7/16 in., Serial Range: catch-bucket

4шт.

K626344

WASHER, LOCK

SPRING WASHER, 7/16 in., Serial Range: catch-bucket

4шт.

280717

NUT,7/16"-14, G5

Catch to bucket 7/16"-14, G5

4шт.
