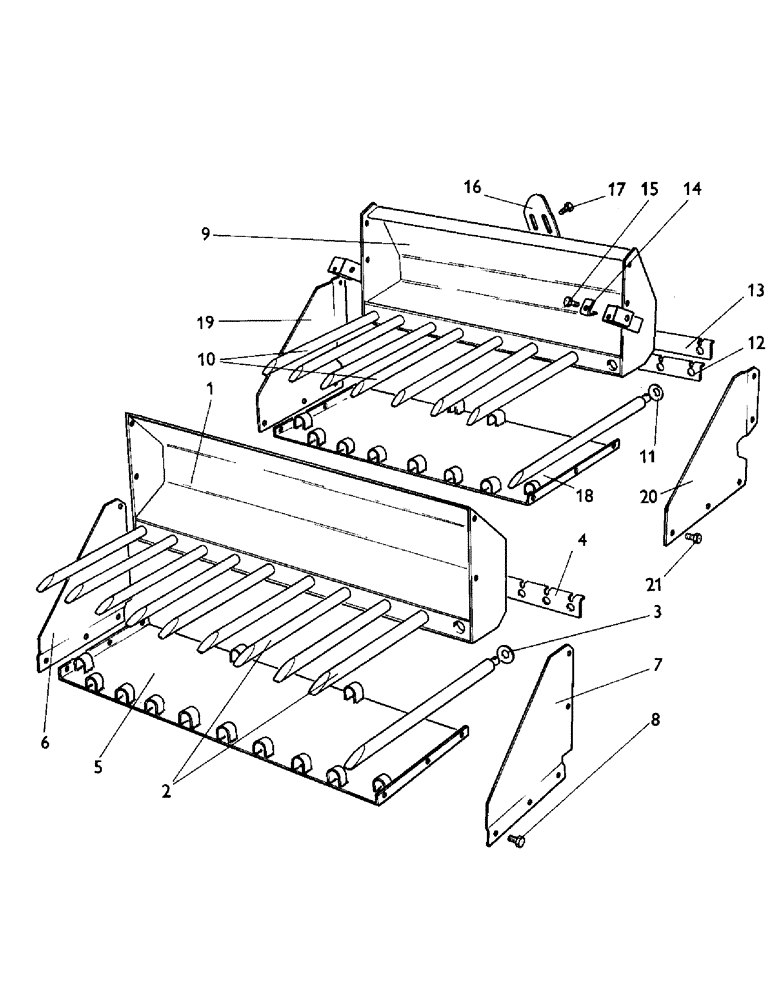

Запчасти Case IH LF-SERIES (22) - MANURE FORKS AND DIRT PLATES, LOADERS WITH HYDRAULIC DUMP AND WITH MECHANICAL DUMP

LOADERS WITH HYDRAULIC DUMP, LF12H (1212, 120), LF9H (996-5, 990), LF8H (885)

1шт.

1

K773087

FORK

MANURE FORK, 5 ft., ULF22H

1шт.

2

K770815

FORK

TINE, 25-1/2 in., ULF22H

10шт.

3

K691124

BELLEVILLE SPRING

SPRING DISC, 3/4 in., ULF22H

10шт.

K690951

PIN

SPRING PIN, 8 x 50 MM, ULF22H

10шт.

4

K770803

PLATE

POSITIONING PLATE - tines, ULF22H

2шт.

5

K770156

PLATE

DIRT PLATE, 5 ft. (For ULF22H), ULF23H

1шт.

6

K765533

PLATE

SIDE PLATE, right-hand, ULF23H

1шт.

7

K765532

PLATE

SIDE PLATE, left-hand, ULF23H

1шт.

8

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3/4 in., plates to fork, ULF23H

10шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., plates to fork, ULF23H

10шт.

280136

NUT,3/8"-16, G8

Plates to fork, ULF23H 3/8"-16, G8

10шт.

1

K773210

FORK

MANURE FORK, 4 ft., LF12H (1212, 1210), LF9H (996-5, 990), ULF20/12-9H

1шт.

1

K773078

FORK

MANURE FORK, 3 ft. 6 in., LF8H (885), ULF20/8H

1шт.

2

K770323

TOOTH

TINE, 28-1/2 in., LF12H (1212, 1210), LF9H (996-5, 990)

7шт.

2

K770323

TOOTH

TINE, 28-1/2 in., LF8H (885)

7шт.

3

K691124

BELLEVILLE SPRING

SPRING DISC, 3/4 in., LF12H (1212, 1210), LF9H (996-5, 990)

8шт.

3

K691124

BELLEVILLE SPRING

SPRING DISC, 3/4 in., LF8H (885)

7шт.

K690951

PIN

SPRING PIN, 8 x 50 MM, LF12H (1212, 1210), LF9H (996-5, 990)

8шт.

K690951

PIN

SPRING PIN, 8 x 50 MM, LF8H (885)

7шт.

4

K770387

PLATE

POSITIONING PLATE - tines, LF12H (1212, 1210), LF9H (996-5, 990)

2шт.

4

K770386

PLATE

POSITIONING PLATE - tines, LF8H (885)

2шт.

K770388

TINE

POSITIONING PLATE - tines, LF8H (885)

1шт.

5

K766338

DIRT PLATE, 4 FT. (For ULF20/12-9H), LF12H (1212, 1210), LF9H (996-5, 990), ULF21/12-9H

1шт.

5

K762982

PLATE

DIRT PLATE, 3 ft. 6 in. (For ULF20/8H), LF8 (885), ULF21/8H

1шт.

6

K765533

PLATE

SIDE PLATE, right-hand

1шт.

7

K765532

PLATE

SIDE PLATE, left-hand

1шт.

8

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3/4 in., Serial Range: plates-fork

10шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., Serial Range: plates-fork

10шт.

280136

NUT,3/8"-16, G8

Plates to fork 3/8"-16, G8

10шт.

LOADERS WITH MECHANICAL DUMP LF12M (1212, 1210), LH9M (996-5, 990), LF8M (885)

1шт.

9

K766376

MANURE FORK, 4 ft., LF12M (1212, 1210), LF9M (996-5, 990), ULF20/12-9M LOADERS WITH MECHANICAL DUMP

1шт.

9

K761954

FORK

MANURE FORK, 3 ft. 6 in., LF8M (885), ULF20/8M LOADERS WITH MECHANICAL DUMP

1шт.

10

K770323

TOOTH

TINE, 28-1/2 in., LF12M (1212, 1210), LF9M (996-5, 990) LOADERS WITH MECHANICAL DUMP

8шт.

10

K770323

TOOTH

TINE, 28-1/2 in., LF8M (885) LOADERS WITH MECHANICAL DUMP

7шт.

11

K691124

BELLEVILLE SPRING

SPRING DISC, 3/4 in., LF12M (1212, 1210), LF9M (996-5, 990) LOADERS WITH MECHANICAL DUMP

8шт.

11

K691124

BELLEVILLE SPRING

SPRING DISC, 3/4 in., LF8M (885) LOADERS WITH MECHANICAL DUMP

7шт.

K690951

PIN

SPRING PIN, 8 x 50 MM, LF12M (1212, 1210), LF9M (996-5, 990) LOADERS WITH MECHANICAL DUMP

8шт.

K690951

PIN

SPRING PIN, 8 x 50 MM, LF8M (885) LOADERS WITH MECHANICAL DUMP

7шт.

12

K770387

PLATE

POSITIONING PLATE - tines, LF12M (1212, 1210), LF9M (996-5, 990) LOADERS WITH MECHANICAL DUMP

2шт.

12

K770387

PLATE

POSITIONING PLATE - tines, LF8M (885) LOADERS WITH MECHANICAL DUMP

1шт.

13

K770386

PLATE

POSITIONING PLATE - tines, LF8M (885) LOADERS WITH MECHANICAL DUMP

1шт.

14

K757292

FORK

STOP BRACKET LOADERS WITH MECHANICAL DUMP

2шт.

15

K603305

BOLT

SETSCREW, 5/8 UNC x 1-3/8 in., brackets to fork LOADERS WITH MECHANICAL DUMP

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in., brackets to fork LOADERS WITH MECHANICAL DUMP

2шт.

16

K772195

BUCKET

CATCH (Standard boom) LOADERS WITH MECHANICAL DUMP

1шт.

16

K773550

BUCKET

CATCH (Extended boom) LOADERS WITH MECHANICAL DUMP

1шт.

17

K691819

SCREW

SETSCREW, 7/16 UNC x 1-3/8 in. LOADERS WITH MECHANICAL DUMP

4шт.

K626314

WASHER

7/16 in., catch to fork LOADERS WITH MECHANICAL DUMP

4шт.

K626344

WASHER, LOCK

SPRING WASHER, 7/16 in., catch to fork LOADERS WITH MECHANICAL DUMP

4шт.

280717

NUT,7/16"-14, G5

Loaders with Mechanical Dump 7/16"-14, G5

4шт.

18

K766388

PLATE

DIRT PLATE, 4 ft. (For ULF20/12-9M), LF12M (1212, 1210), LF9M (996-5, 990), ULF21/12-9M LOADERS WITH MECHANICAL DUMP

1шт.

18

K762982

PLATE

DIRT PLATE, 3 ft. 6 in. (For ULF20/8M), LF8M (885), ULF21/8M LOADERS WITH MECHANICAL DUMP

1шт.

19

K762984

PLATE

SIDE PLATE, right-hand LOADERS WITH MECHANICAL DUMP

1шт.

20

K762985

PLATE

SIDE PLATE, left-hand LOADERS WITH MECHANICAL DUMP

1шт.

21

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3/4 in., plates to fork LOADERS WITH MECHANICAL DUMP

10шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., plates to fork LOADERS WITH MECHANICAL DUMP

10шт.

280136

NUT,3/8"-16, G8

Plates to fork, Loaders with mechanical dump 3/8"-16, G8

10шт.
