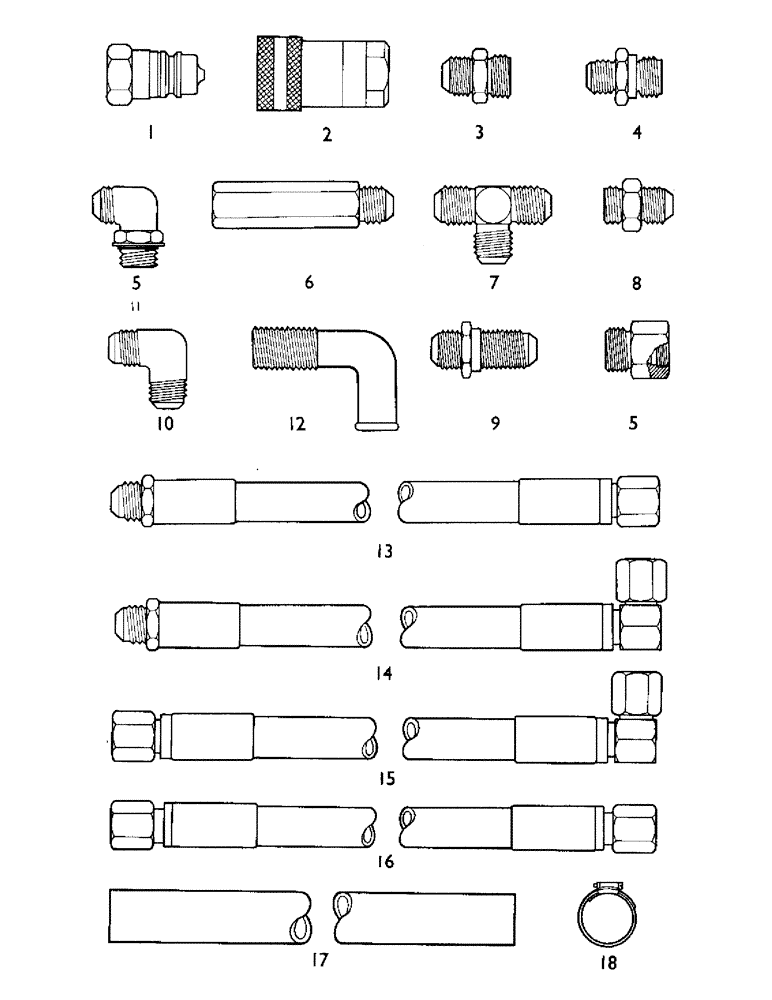

Запчасти Case IH LF-SERIES (20) - HYDRAULIC FITTINGS, COUPLINGS, UNIONS, PIPES, ETC.

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING (Complete)

6шт.

1

K921982

BREAKER POINTS

COUPLING, male half, 1/2 BSP, 921216

1шт.

2

K929247

BREAKER POINTS

COUPLING, female half, 1/2 BSP, 921216

1шт.

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

"O" RING, 13/16 in. int. dia., 921216

1шт.

3

K690908

FITTING

UNION, 1/2 BSP - 3/4 UNF

6шт.

4

K691847

FITTING

UNION, 1/2 BSP - 3/4 UNF

6шт.

5

K691742

FITTING

UNION, 1/2 BSP - 3/4 UNF

2шт.

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING, 3/4 in. int. dia.

6шт.

6

K945364

PIPE

EXTENSION, 3/4 UNF x 3 in.

6шт.

7

K622160

FITTING

TEE-PIECE

2шт.

8

K690907

FITTING

UNION, 3/4 UNF

2шт.

K623591

O-RING

"O" RING, 5/8 in. int. dia.

2шт.

9

K692030

FITTING

UNION, 3/4 UNF (Extended)

2шт.

K692026

NUT

LOCKNUT, 3/4 UNF

2шт.

10

K691891

FITTING

ELBOW, 3/4 UNF x 90 degree

2шт.

11

K622114

FITTING

ELBOW, 3/4 UNF x 90 degree

4шт.

K617585

LOCK NUT

NUT, 3/4 UNF, 622114

1шт.

K626734

WASHER

3/4 in., 622114

1шт.

K623591

O-RING

"O" RING, 3/4 in. int. dia., 622114

1шт.

12

K691461

FITTING

ELBOW, 7/8 UNF x 90 degree

1шт.

K691824

NUT

LOCKNUT, 7/8 UNF

1шт.

K626520

WASHER

SEALING WASHER, 7/8 in.

1шт.

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

ALUMINUM WASHER, 7/8 in.

1шт.

K691651

PLUG

3/4 UNF

1шт.

13

K768554

PIPE

FLEXIBLE PIPE, 3/4 UNF x 100 in.

1шт.

13

K763069

HOSE

FLEXIBLE PIPE, 3/4 UNF x 26 in.

1шт.

13

K766724

PIPE

FLEXIBLE PIPE, 3/4 UNF x 23 in.

1шт.

13

K763788

HOSE

FLEXIBLE PIPE, 3/4 UNF x 20 in.

1шт.

14

K772854

HOSE

FLEXIBLE PIPE, 3/4 UNF x 36 in.

1шт.

14

K773247

PIPE

FLEXIBLE PIPE, 3/4 UNF x 26 in.

1шт.

14

K773156

HOSE

FLEXIBLE PIPE, 3/4 UNF x 21-1/2 in.

1шт.

15

K759669

HOSE

FLEXIBLE PIPE, 3/4 UNF x 52-1/2 in.

1шт.

15

K771755

PIPE

FLEXIBLE PIPE, 3/4 UNF x 46 in.

1шт.

15

K759667

HOSE

FLEXIBLE PIPE, 3/4 UNF x 43-1/2 in.

1шт.

15

K772740

PIPE

FLEXIBLE PIPE, 3/4 UNF x 32 in.

1шт.

15

K763621

PIPE

FLEXIBLE PIPE, 3/4 UNF x 29-1/2 in.

1шт.

15

K770714

HOSE

FLEXIBLE PIPE, 3/4 UNF x 26 in.

1шт.

15

K773036

PIPE

FLEXIBLE PIPE, 3/4 UNF x 17 in.

1шт.

15

K773035

PIPE

FLEXIBLE PIPE, 3/4 UNF x 15 in.

1шт.

16

K769467

HOSE

FLEXIBLE PIPE, 3/4 UNF x 20 in.

1шт.

16

K772741

HOSE

FLEXIBLE PIPE, 3/4 UNF x 17 in.

1шт.

17

K773229

HOSE

3/4 x 52 in.

1шт.

17

K764218

X

HOSE, 3/4 x 40 in.

1шт.

18

K11807

CLIP

HOSE CLIP, 1-1/4 in.

4шт.
