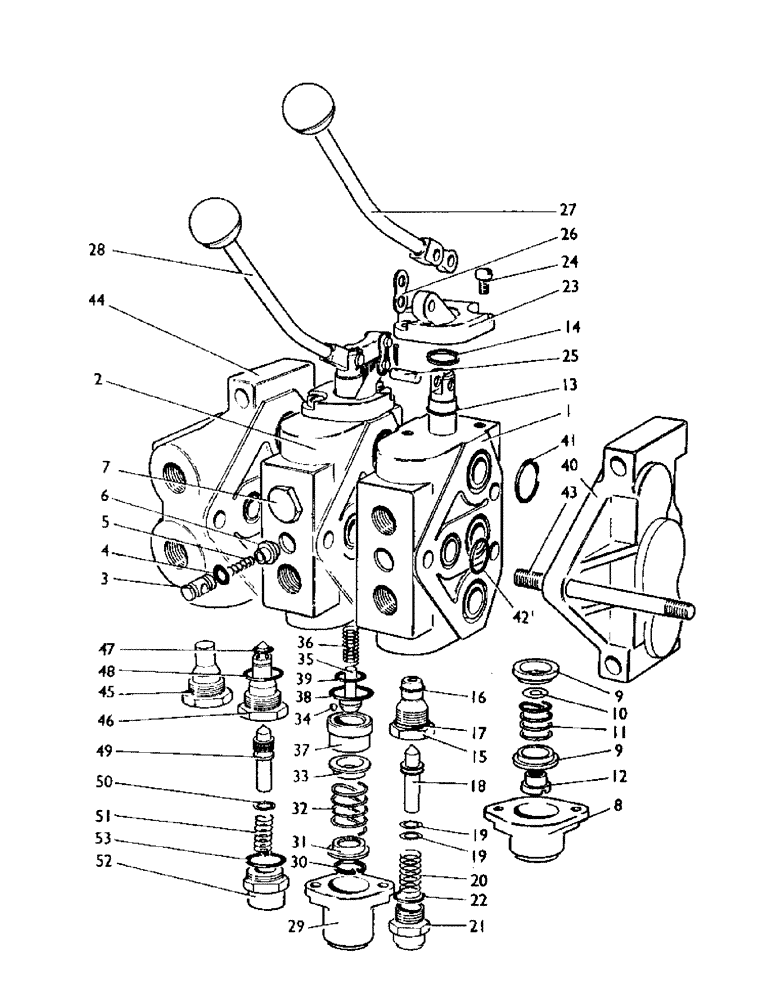

Запчасти Case IH LF-SERIES (18) - LOADER CONTROL VALVE, 773037 AND 773004

K773037

SPOOL

CONTROL VALVE (Complete), 773037, D-A lift rams

1шт.

K773004

VALVE

CONTROL VALVE (Complete), 773004, S-A lift rams

1шт.

K773007

SPOOL

HOUSING (Complete) - double-acting, bucket ram

1шт.

K773038

SPOOL

HOUSING (Complete) - d-a with "float" position, 773037, lift rams

1шт.

K773008

SPOOL

HOUSING (Complete) - single-acting, 773004, lift rams

1шт.

1

K773005

SPARE PART

HOUSING AND SPOOL - double-acting, bucket ram

1шт.

2

K773039

SPARE PART

HOUSING AND SPOOL - double-acting, 773037, lift rams

1шт.

2

K773006

SPARE PART

HOUSING AND SPOOL - single-acting, 773004, lift rams

1шт.

3

K769507

VALVE

BODY, non-return valve

2шт.

4

K691663

O-RING

"O" RING - body, non-return valve

2шт.

5

K691662

WASHER

SPRING, non-return valve

2шт.

6

K769508

X

POPPET, non-return valve

2шт.

7

K691651

PLUG

3/4 UNF - outlet port, 773004

1шт.

8

K769501

SPRING

COVER, 773037

1шт.

8

K769501

SPRING

COVER, 773004

2шт.

9

K769502

SPRING

CUP - spring, 773037

2шт.

9

K769502

SPRING

CUP - spring, 773004

4шт.

10

K769503

PLATE

773037

1шт.

10

K769503

PLATE

773004

2шт.

11

K691652

SPRING

- spool, 773037

1шт.

11

K691652

SPRING

- spool, 773004

2шт.

12

K691655

SCREW

SETSCREW, special, 773037

1шт.

12

K691655

SCREW

SETSCREW, special, 773004

2шт.

13

K691653

O-RING

"O" RING - spool

4шт.

14

K691654

RING

WIPER SEAL - spool

2шт.

K772858

VALVE

SERVICE RELIEF VALVE ASSEMBLY

1шт.

15

K769645

VALVE

BODY, 772858

1шт.

16

K691701

O-RING

"O" RING (Small) - body, 772858

1шт.

17

K691700

O-RING

"O" RING (Large) - body, 772858

1шт.

18

K769643

VALVE POPPET

PLUNGER, 772858

1шт.

19

K691707

SHIM,.020" Thk

772858 .020" Thk

1шт.

19

K691706

SHIM,.003" Thk

772858 .003" Thk

2шт.

20

K691703

SPRING

772858

1шт.

21

K769644

VALVE

CAP, 772858

1шт.

22

K691702

O-RING

"O" RING - cap, 772858

1шт.

23

K769504

SUPPORT

BRACKET - handle

2шт.

24

K691665

SCREW

1/4 x 5/8 in.

8шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

8шт.

25

K769638

PIN

CLEVIS PIN - spool

2шт.

K11934

PIN

SPLIT PIN, 1/16 x 1/2 in.

2шт.

26

K691661

LINK

-, Serial Range: bracket-handle

2шт.

27

K769640

HANDLE

773037

1шт.

27

K769640

HANDLE

773004

2шт.

28

K773665

HANDLE

773037

1шт.

29

K771334

COVER

773037

1шт.

30

K691794

RING, SNAP

CIRCLIP - spool, 773037

1шт.

31

K771333

SPARE PART

CUP - spring, 773037

1шт.

32

K691795

SPRING

- spool, 773037

1шт.

33

K771332

SPRING

CUP - spring, 773037

1шт.

34

K691796

BALL

STEEL BALL, 773037

4шт.

35

K771336

VALVE POPPET

PLUNGER - spool, 773037

1шт.

36

K691797

SPRING

- plunger, 773037

1шт.

37

K774109

HOUSING

SUPPORT SLEEVE, 773037

1шт.

38

K691798

O-RING

"O" RING (Outer) - sleeve, 773037

1шт.

39

K691799

O-RING

"O" RING (Inner) - sleeve, 773037

1шт.

40

K773661

COVER

END COVER, right-hand

1шт.

41

K691656

O-RING

"O" RING, 13/16 in. int. dia.

9шт.

42

K691657

O-RING

"O" RING, 11/16 in. int. dia.

3шт.

43

K691658

STUD

3/8 UNF x 5-3/4 in.

3шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

6шт.

K617002

NUT

3/8 UNF

6шт.

44

K769641

COVER

END COVER, left-hand

1шт.

45

K692028

PLUG

- end cover (With "O" rings), 773004

1шт.

K772857

VALVE

MAIN RELIEF VALVE ASSEMBLY, 773037

1шт.

46

K769664

SPARE PART

BODY, 773037, 772857

1шт.

47

K691653

O-RING

"O" RING (Small), 773037, 772857

1шт.

48

K691699

O-RING

"O" RING (Large), 773037, 772857

1шт.

49

K769663

VALVE POPPET

PLUNGER, 773037, 772857

1шт.

50

K691706

SHIM,.003" Thk

773037, 772857 .003" Thk

1шт.

50

K691707

SHIM,.020" Thk

773037, 772857 .020" Thk

1шт.

51

K691705

SPRING

773037, 772857

1шт.

52

K769662

VALVE

CAP, 773037, 772857

1шт.

53

K691700

O-RING

"O" RING - cap, 773037, 772857

1шт.
