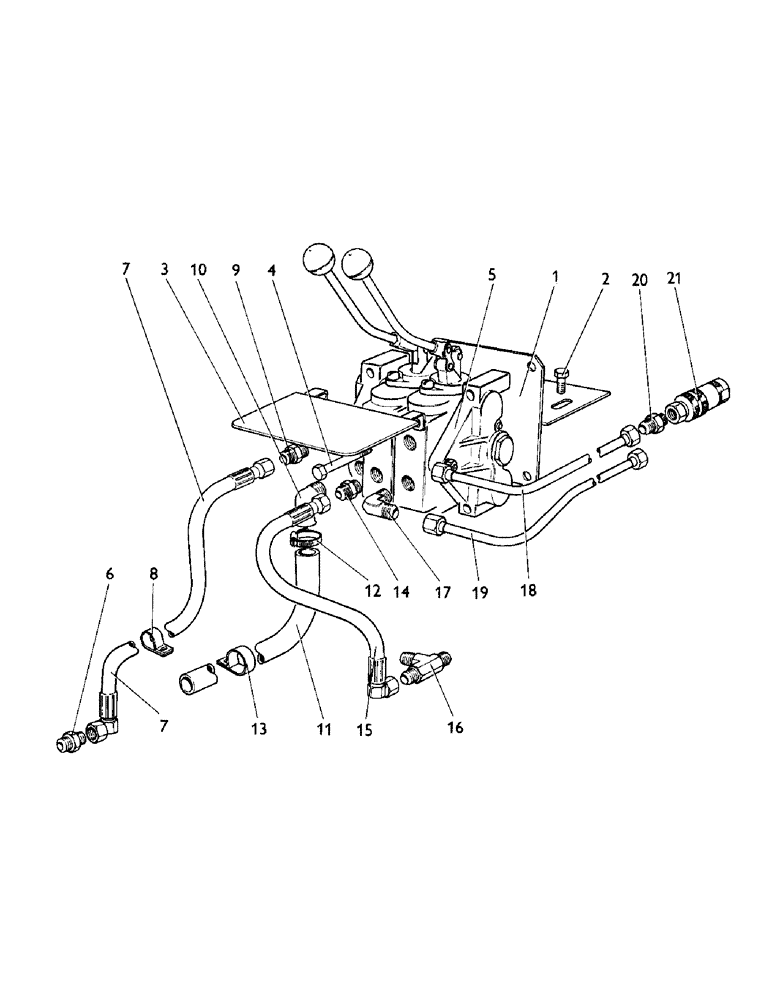

Запчасти Case IH LF-SERIES (16) - LOADER VALVE FITTINGS, LF12 MODEL 1212, 1210, LF9 MODEL 996, 995, 990, LF8 MODEL 885

1

K772971

VALVE

SUPPORT BRACKET - control valve, LF12 (1212, 1210), tractors without cab

1шт.

1

K773144

VALVE

SUPPORT BRACKET - control valve, LF9 (996-5, 990), tractors without cab

1шт.

1

K773148

VALVE

SUPPORT BRACKET - control valve, LF8 (885), tractors without cab

1шт.

2

K691864

BOLT

3/8 UNC x 5 in., bracket to loader, tractors without cab

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., bracket to loader, tractors without cab

2шт.

280136

NUT,3/8"-16, G8

Bracket to loader, tractors without cab 3/8"-16, G8

2шт.

K773427

BRACKET

EXTENSION - support bracket, 996 tractors, LF9 (996-5, 990), tractors without cab

2шт.

K602983

SCREW

SETSCREW, 3/8 UNC x 7/8 in., 996 tractors, LF9 (996-5, 990), tractors without cab

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., 996 tractors, LF9 (996-5, 990), tractors without cab

4шт.

280136

NUT,3/8"-16, G8

996 tractors, LF9 (996-5, 990), tractors without cab 3/8"-16, G8

4шт.

1

K772933

VALVE

SUPPORT BRACKET - control valve, LF12 (1212, 1210), tractors with DB cab

1шт.

1

K773136

VALVE

SUPPORT BRACKET - control valve, LF9 (996-5, 990), tractors with DB cab

1шт.

1

K773141

VALVE

SUPPORT BRACKET - control valve, LF8 (885), tractors with DB cab

1шт.

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW, 3/8 UNC x 1-1/4in., support to cab, tractors with DB cab

2шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Support cab, Tractors with DB cab Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

K773291

BRACKET - cab to loader, LF12 (1212, 1210), tractors with DB cab

1шт.

K773292

CAB

BRACKET - cab to loader, LF9 (996-5, 990), tractors with DB cab

1шт.

K773293

CAB

BRACKET - cab to loader, LF8 (885), tractors with DB cab

1шт.

2

K691818

SPARE PART

BOLT, 3/8 UNC x 4-3/4in., bracket to cab and loader, tractors with DB cab

1шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to cab and loader, Tractors with DB cab Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

K25906

WASHER

3/8 in., special, bracket to cab and loader, tractors with DB cab

1шт.

K19472

WASHER

3/8 in., tractors with DB cab

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., tractors with DB cab

5шт.

280136

NUT,3/8"-16, G8

Tractors with DB cab 3/8"-16, G8

5шт.

3

K772969

PLATE

INSTRUCTION PLATE, double-acting boom rams

1шт.

K770923

PLATE

TRANSFER - instruction plate, double-acting boom rams

1шт.

3

K772968

PLATE

INSTRUCTION PLATE, single-acting boom rams

1шт.

K769386

PLATE

TRANSFER - instruction plate, single-acting boom rams

1шт.

4

K691823

SPARE PART

BOLT, 3/8 UNC x 2-3/4 in., Serial Range: valve-support

3шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., Serial Range: valve-support

3шт.

280136

NUT,3/8"-16, G8

Valve to support 3/8"-16, G8

3шт.

5

K773037

SPOOL

CONTROL VALVE ASSEMBLY (DA lift arms), see page 10

1шт.

5

K773004

VALVE

CONTROL VALVE ASSEMBLY (SA lift arms), see page 18

1шт.

6

K690907

FITTING

UNION, 3/4 UNF, pipe to tractor valve

1шт.

K623591

O-RING

"O" RING, 5/8 in. int. dia., pipe to tractor valve

1шт.

7

K759669

HOSE

PIPE, 3/4 UNF x 52-1/2 in.

1шт.

8

K691502

CLIP

-, Serial Range: pipe-gearbox

2шт.

9

K690907

FITTING

UNION, 3/4 UNF, valve inlet

1шт.

K623591

O-RING

"O" RING, 5/8 in. int. dia., valve inlet

1шт.

10

K691461

FITTING

ELBOW, 7/8 UNF, oil, Serial Range: return-tractor

2шт.

K691824

NUT

LOCKNUT, 7/8 UNF, oil, Serial Range: return-tractor

2шт.

K626520

WASHER

SEALING WASHER, 7/8 in., oil, Serial Range: return-tractor

2шт.

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

ALUMINUM WASHER, 7/8 in., oil, Serial Range: return-tractor

1шт.

11

K764218

X

HOSE, 3/4 x 40 in., oil return to tractor, LF12 (1212, 1210), LF9 (996-5, 990)

1шт.

11

K773229

HOSE

3/4 x 52 in., oil return to tractor, LF8 (885)

1шт.

12

K11807

CLIP

HOSE CLIP, 1-1/4 in., oil, Serial Range: return-tractor

4шт.

13

K691519

CLIP

- hose to gearbox cover

2шт.

14

K690907

FITTING

UNION, 3/4 UNF

2шт.

K623591

O-RING

"O" RING, 3/4 in. int. dia.

4шт.

15

K773036

PIPE

3/4 UNF x 17 in., LF12 (1212, 1210), LF9 (996-5, 990)

2шт.

15

K773036

PIPE

3/4 UNF x 17 in., LF8 (885)

1шт.

15

K770714

HOSE

PIPE, 3/4 UNF x 26 in., LF8 (885)

1шт.

16

K622160

FITTING

TEE-PIECE, 3/4 UNF

2шт.

17

K622114

FITTING

ELBOW, 3/4 UNF

2шт.

18

K772963

CONDUIT

STEEL PIPE - upper, LF12 (1212, 1210), bucket dump

1шт.

18

K773197

CONDUIT

STEEL PIPE - upper, LF9 (996-5, 990), bucket dump

1шт.

18

K773236

CONDUIT

STEEL PIPE - upper, LF8 (885), bucket dump

1шт.

19

K772965

CONDUIT

STEEL PIPE - lower, LF12 (1212, 1210), bucket dump

1шт.

19

K773152

CONDUIT

STEEL PIPE - lower, LF9 (996-5, 990), bucket dump

1шт.

19

K773237

CONDUIT

STEEL PIPE - lower, LF8 (885), bucket dump

1шт.

20

K691847

FITTING

UNION, 1/2 BSP - 3/4 UNF

2шт.

K691882

SHIM

PACKING WASHER, 7/8 in.

1шт.

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING, 3/4 in. int. dia.

4шт.

21

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING, 1/2 BSP

2шт.

K945364

PIPE

EXTENSION, 3/4 UNF x 3 in., LF9 (996-5, 990), 996

6шт.
