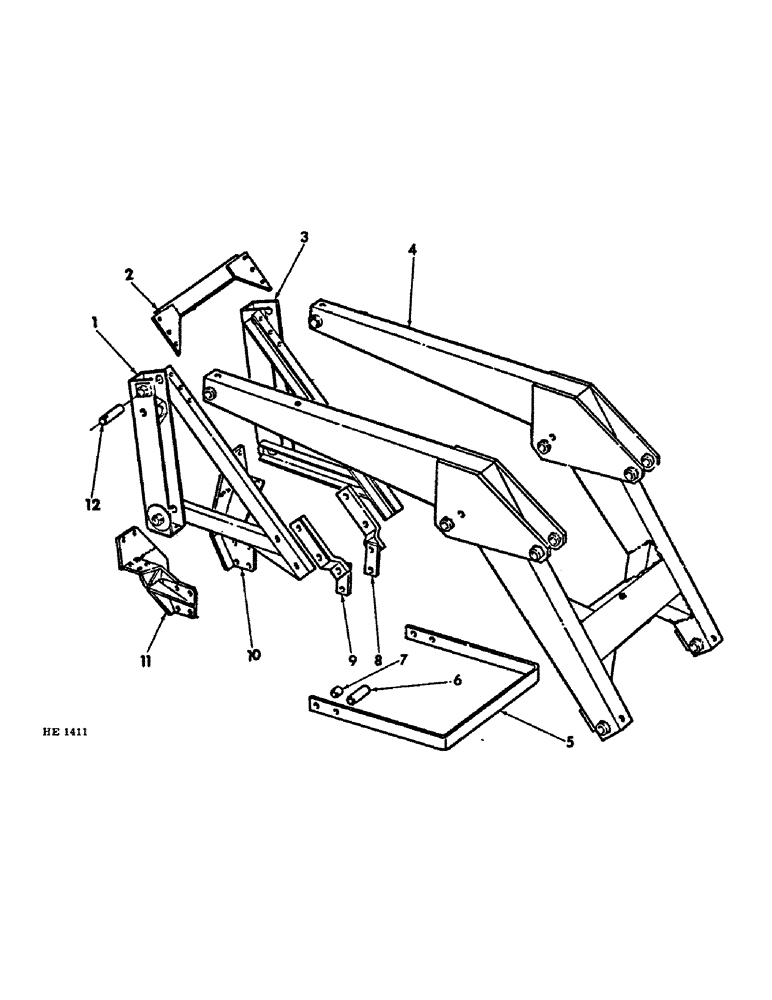

Запчасти Case IH 1850 (C-05) - 851644C1 SUB FRAME AND BOOM

1

851644C1

FRAME

sub RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

851638C1

MEMBER

CROSSMEMBER, sub-frame

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1"

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

3

851643C1

FRAME

sub LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

4

851433C1

BOOM

bucket loader

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

LUB-FITTING, 1/4" drive-type

4шт.

5

676530R1

GUARD

grille

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT, 3/4 x 3-3/4"

4шт.

6

676529R1

SPACER

grille guard mounting front

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT, 3/4 x 3-3/4"

2шт.

7

630281R1

SPACER, grille guard mounting rear

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT, 3/4 x 3-3/4"

2шт.

8

851649C1

SUPPORT

sub-frame front LH

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 1-3/8"

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2"

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

280954

NUT,3/4"-10, G5

2шт.

9

851650C1

SUPPORT

sub-frame front RH

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 1-3/8"

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2"

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

280954

NUT,3/4"-10, G5

2шт.

10

676511R92

SUPPORT

sub-frame rear LH

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4"

4шт.

11

676512R92

BRACKET

SUPPORT, sub-frame RH

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4"

4шт.

12

851506C1

PIN

BAR, loader boom pivot

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.
