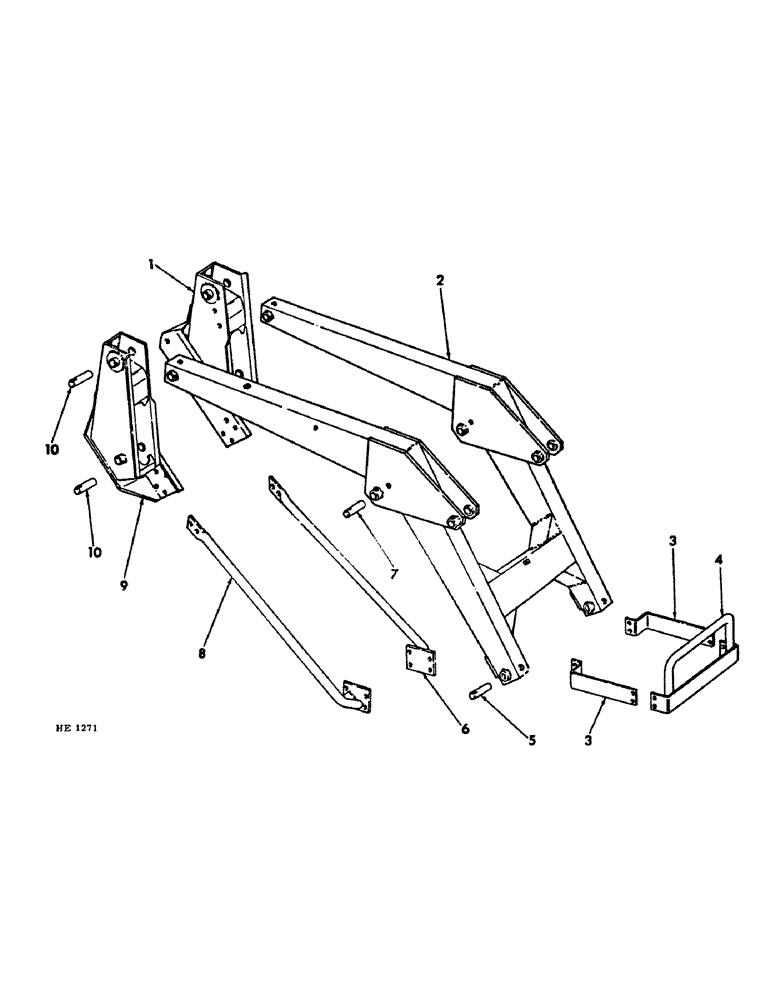

Запчасти Case IH 1850 (C-04) - SUB-FRAME AND BOOM
№
Артикул
Название
Примечание
Количество
1
851578C1
FRAME
sub LH
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2"
4шт.
NLS
NO LONGER SERVICED
5/8 x 1-1/2"
3шт.
21782R1
WASHER
.656 x 1.500 x .054" (as req'd)
1шт.
22197R1
WASHER
.531 x 1.750 x .054" (as req'd)
1шт.
2
851433C1
BOOM
loader
1шт.
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
LUB-FITTING, 1/4" drive type
4шт.
3
851590C1
SUPPORT
grille guard
2шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
BOLT, 5/8 x 1-3/4"
2шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
5/8 x 2-3/4"
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8"
2шт.
4
851591C1
GUARD
tractor grille
1шт.
467657R1
BOLT,Short NK, 5/8"-11 x 1 1/2", G5, Full Thd
5/8 x 1-1/2" crg
4шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8"
4шт.
5
851506C1
PIN
BAR, bucket pivot
2шт.
378484R1
HEADED PIN,5/16" x 2"
PIN, 5/16 x 2" headed dld
2шт.
12235R1
1/8" x 5/8" 1/8" x 5/8"
2шт.
6
851537C1
SUPPORT
diagonal frame LH
1шт.
271547
STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5
5/8 x 1-1/2"
3шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
5/8 x 2-1/4"
1шт.
88692
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd
2шт.
280954
NUT,3/4"-10, G5
2шт.
7
675264R1
SHAFT
BAR, lift cyl rod
2шт.
378480R1
HEADED PIN,5/16" x 1 7/8"
PIN, 5/16 x 1-7/8" headed-dld
4шт.
12235R1
1/8" x 5/8" 1/8" x 5/8"
4шт.
8
851538C1
SUPPORT
diagonal frame RH
1шт.
NLS
NO LONGER SERVICED
5/8 x 1-1/2"
3шт.
271724
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8 x 2-1/4"
1шт.
271737
CARRIER
BOLT, 3/4 x 1-1/2"
2шт.
280954
NUT,3/4"-10, G5
2шт.
9
851579C1
FRAME
sub RH
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2"
4шт.
271547
STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5
5/8 x 1-1/2"
3шт.
271782R1
WASHER, .656 x 1.500 x .054" (as req'd)
1шт.
22197R1
WASHER
.531 x 1.750 x .054" (as req'd)
1шт.
10
851506C1
PIN
BAR, boom pivot
2шт.
378480R1
HEADED PIN,5/16" x 1 7/8"
PIN, 5/16 x 1-7/8" headed dld
2шт.
478258R1
WASHER
1-5/32 x 1-3/4 x 11 ga
12шт.
12235R1
1/8" x 5/8" 1/8" x 5/8"
2шт.
Выбрано товаров: 39
