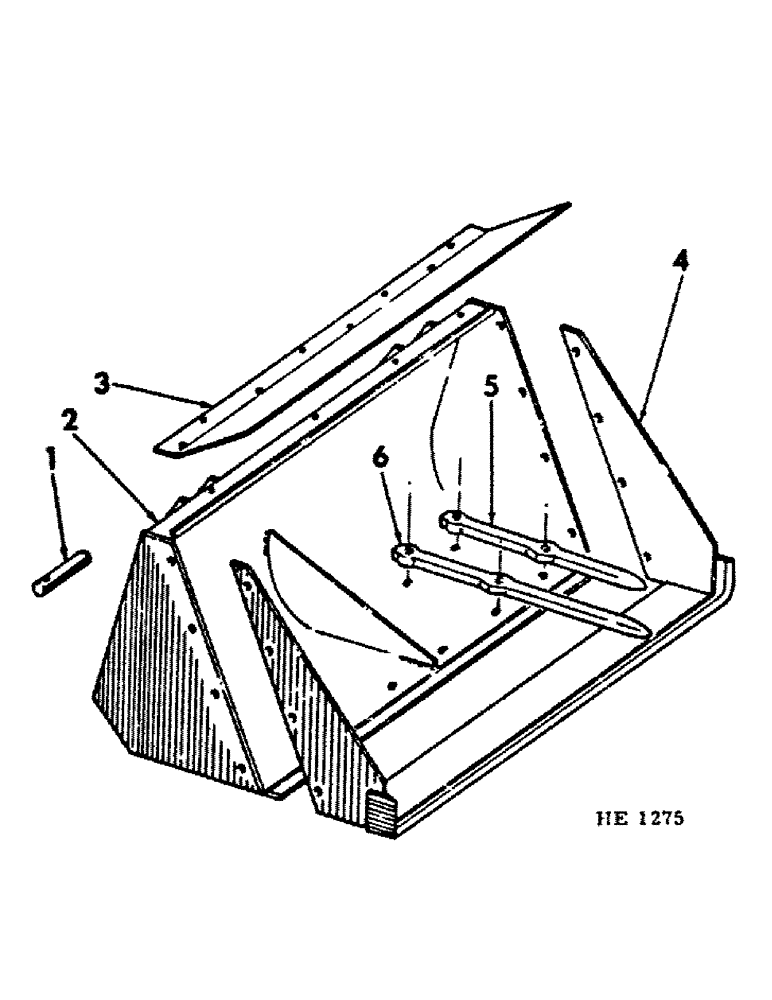

Запчасти Case IH 1850 (C-03) - MANURE BUCKET

1

851506C1

PIN

BAR, bucket pivot

2шт.

378484R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

2

BUCKET, 50 inch manure (order on machine order form)

1шт.

2

BUCKET, 60 inch manure (order on machine order form)

1шт.

3

851620C1

GUARD

manure bucket spill

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

851430C1

EXTENSION

50" manure bucket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

851421C1

EXTENSION, 60" manure bucket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

851426C1

TINE

FINGER, manure fork outer

2шт.

19063R1

BOLT,1/2"-13 x 2 1/4", G2

1/2 x 2-1/4" no. 3 plow bolt (2 used per finger)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 used per bolt) 1/2"-13, G5

1шт.

6

851425C1

TINE

FINGER, manure fork inner (4 used 50" bucket) (6 used 60 inch bucket)

1шт.

19063R1

BOLT,1/2"-13 x 2 1/4", G2

1/2 x 2-1/4" no. 3 plow (2 used per finger)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 used per bolt) 1/2"-13, G5

1шт.
