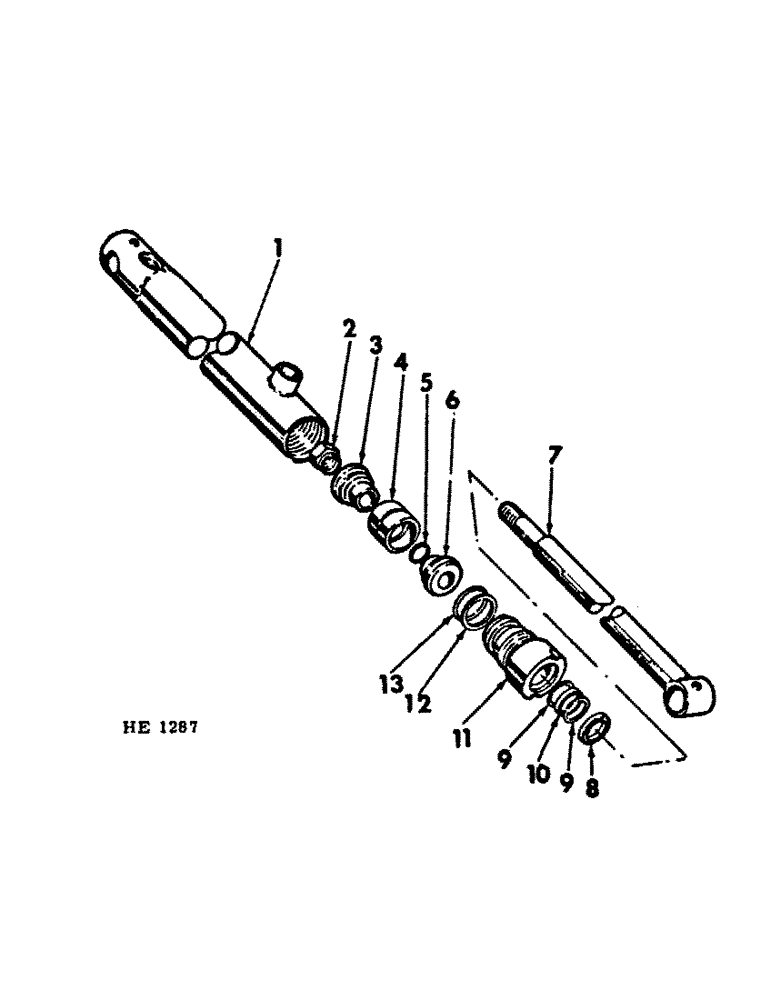

Запчасти Case IH 1850 (C-27) - BUCKET CONTROL HYDRAULIC CYLINDER

851568C91

CYLINDER

bucket control hyd (composed of all parts listed below) (illustration and copy is for one (1) hyd cyl)

2шт.

1

850598C1

BODY, bucket hyd cyl

1шт.

2

811850C1

NUT

7/8"-NF piston lk

1шт.

3

850580C1

PISTON

hyd cyl rear half

1шт.

4

SEAL, hyd cyl piston heavy duty (for service order 1-850601C91, kit) (NSS)

1шт.

5

O-RING, 7/8" dia piston half front (for service order 1-850601C91, kit) (NSS)

1шт.

6

850579C1

PISTON

hyd cyl front half

1шт.

7

850599C1

ROD

hyd cyl piston

1шт.

8

SEAL, piston rod dust (for service order 1-850601C91, kit) (NSS)

1шт.

9

RING, piston rod o-ring back-up (for service order 1-850601C91, kit) (NSS)

2шт.

10

SEAL, 1-1/8" dia quad (for service order 1-850601C91, kit) (NSS)

1шт.

11

850600C1

END

hyd cyl

1шт.

12

RING, cyl end o-ring back-up (for service order 1-850601C91, kit) (NSS)

1шт.

13

O-RING, 2" dia hyd cyl end (for service order 1-850601C91, kit) (NSS)

1шт.

850601C91

SEAL KIT

hyd cyl seal service composed of: (1) o-ring (NSS), (1) o-ring (NSS), (1) ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) seal (NSS), (1) seal (NSS)

1шт.
