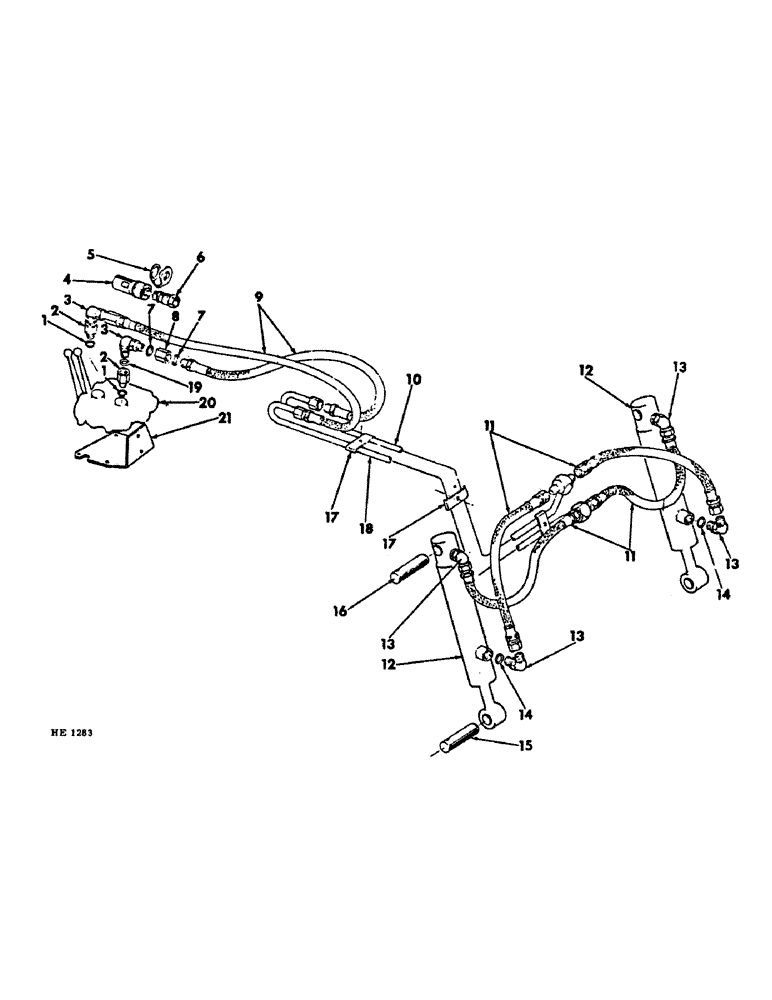

Запчасти Case IH 1850 (C-26) - BUCKET CONTROL HYDRAULIC SYSTEM

1

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

valve port reducer

2шт.

2

372852R1

ADAPTER

UNION, 7/8" to 3/4" valve port reducer

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

valve port reducer

2шт.

3

476940R1

ELBOW

7/8" - 90 deg. control valve port

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

control valve port elbow

2шт.

4

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female (when loader hydraulics equipped w/quick disconnect couplers)

2шт.

5

373220R1

PLUG

CAP, coupler dust (when loader hydraulics equipped w/quick disconnect couplers)

2шт.

6

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male (when loader hydraulics equipped w/quick disconnect couplers)

2шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd hose and elbow

4шт.

8

584802R1

CONNECTOR, ELEC

UNION, 7/8" hose adaptor (not applicable when hyds equipped w/hyd quick disconnect couplers)

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adaptor union

2шт.

9

851624C91

HOSE

hyd control valve to hyd tube

2шт.

10

851622C11

HYD TUBE,.5" OD

TUBE, hyd cyl bucket roll-back

1шт.

11

675846R91

HOSE ASSY.

HOSE, bucket hyd, Serial Range: cyl-tubes

4шт.

12

851568C91

CYLINDER

bucket control hyd (for component parts of this assembly, refer to "bucket control hydraulic cylinder" in section "C" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90 deg. elbow

4шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90 deg. hyd cyl port

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port elbow

4шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port elbow

4шт.

15

675264R1

SHAFT

BAR, bucket cyl rod or upper

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

16

851444C1

PIN

BAR, bucket cyl base or lower

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

17

379045R1

CLAMP

hyd, Serial Range: tube-boom

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

851623C11

HYD TUBE,.5" OD

TUBE, hyd cyl bucket dump

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

control valve port elbow

2шт.

20

851629C91

VALVE

hyd control (for component parts of this assembly refer to "hydraulic control valve" in section "C" of this catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

851621C1

SUPPORT

hyd control valve

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
