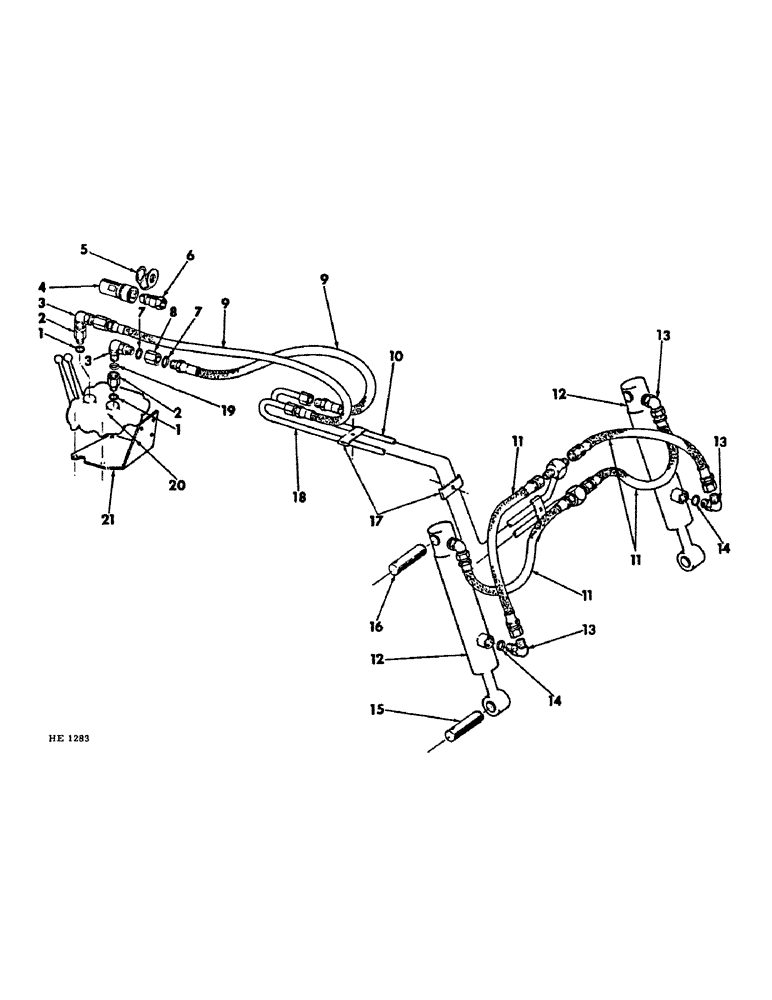

Запчасти Case IH 1850 (C-24) - BUCKET CONTROL HYDRAULIC SYSTEM

1

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

valve port reducer union

2шт.

2

372852R1

ADAPTER

UNION, 7/8" female to 3/4" male reducer

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

reducer union

2шт.

3

476940R1

ELBOW

7/8" - 90 deg. valve port

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve port elbow

2шт.

4

395150R1

COUPLING, QUICK, FEM

COUPLER, self-sealing female (when quick coupling required)

2шт.

5

373220R1

PLUG

CAP, self-sealing coupler dust (when quick coupling required)

2шт.

6

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male (when quick coupling required)

2шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adaptor union

4шт.

8

584802R1

CONNECTOR, ELEC

UNION, 7/8" hose adaptor (not applicable when quick-couplers installed)

2шт.

9

851624C91

HOSE

bucket control hyd tubes to hyd valve

2шт.

10

851622C11

HYD TUBE,.5" OD

TUBE, bucket control hyd cyl bucket roll-back

1шт.

11

675846R91

HOSE ASSY.

HOSE, hyd cyl to hyd tube

4шт.

12

851568C91

CYLINDER

bucket control hyd (for component parts of this assembly, refer to "bucket control hydraulic cylinder" in section "C" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90 deg. elbow

4шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90 deg. hyd cyl port

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

cyl port elbow

4шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl elbow

4шт.

15

675264R1

SHAFT

BAR, hyd cyl front or rod

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

16

851444C1

PIN

BAR, hyd cyl rear or base

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

17

379045R1

CLAMP

hyd tube dual

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

851623C11

HYD TUBE,.5" OD

TUBE, bucket control hyd cyl bucket dump

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve port elbow

2шт.

20

851629C91

VALVE

loader mounted hyd control (for component parts of this assembly, refer to "hydraulic control valve" in section "C" of this catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

851535C1

BRACKET

valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
