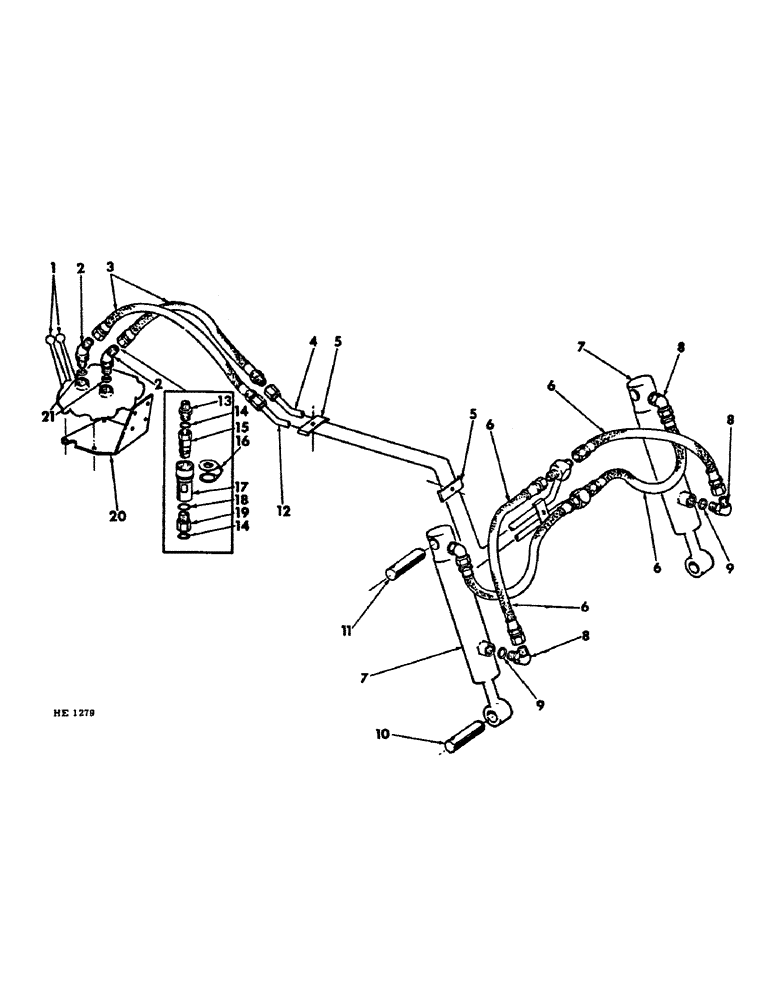

Запчасти Case IH 1850 (C-22) - BUCKET CONTROL HYDRAULIC SYSTEM

1

851629C91

VALVE

loader mounted hyd control (for component parts of this assembly, refer to "hydraulic control valve" in section "C" of this catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 45 deg. control valve ports

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

valve port elbow

2шт.

3

675297R92

HOSE

bucket control hyd tube to hyd valve

2шт.

4

851607C11

HYD TUBE,.5" OD

TUBE, bucket control hyd cyl bucket roll-back

1шт.

5

379045R1

CLAMP

hyd tube dual

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

675846R91

HOSE ASSY.

HOSE, hyd cyl to hyd tube

4шт.

7

851568C91

CYLINDER

bucket control hyd (for component parts of this assembly, refer to "bucket control hydraulic cylinder" in section C of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90 deg. elbow

4шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90 deg. hyd cyl port

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

cyl port elbow

4шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl elbow

4шт.

10

675264R1

SHAFT

BAR, hyd cyl front or rod

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

11

851444C1

PIN

BAR, hyd cyl rear or base

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

12

851606C11

TUBE

bucket control hyd cyl bucket dump

1шт.

13

407045R1

FITTING

UNION, 7/8" to 3/4" hyd cyl hoses (applicable when loader equipped w/hyd quick disconnect couplers)

2шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

quick coupler (applicable when loader equipped w/hyd quick disconnect couplers)

4шт.

15

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male (applicable when loader equipped w/hyd quick disconnect couplers)

2шт.

16

373220R1

PLUG

CAP, quick coupler dust (applicable when loader equipped w/hyd quick disconnect couplers)

2шт.

17

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female (applicable when loader equipped w/hyd quick disconnect couplers)

2шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

quick coupler (applicable when loader equipped w/hyd quick disconnect couplers)

2шт.

19

478754R1

ADAPTER

CONNECTOR, 7/8" to 3/4" control valve port (applicable when loader equipped w/hyd quick disconnect couplers)

2шт.

20

851535C1

BRACKET

valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

valve port elbow

2шт.
