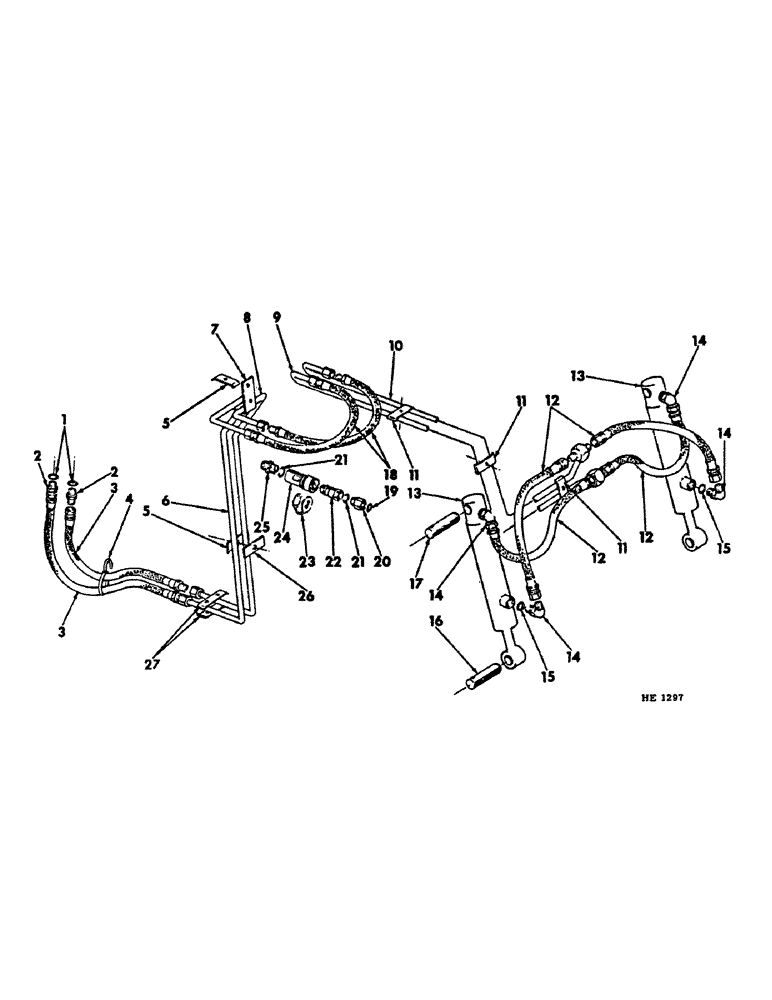

Запчасти Case IH 1850 (C-20) - BUCKET CONTROL HYDRAULIC SYSTEM

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

tractor valve reducer union

2шт.

2

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8" to 3/4" tractor valve port reducer

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

tractor reducer union

2шт.

3

675297R92

HOSE

bucket dump and roll back tubes to tractor valve

2шт.

4

816502C1

STRAP

hyd hose tie

1шт.

5

379045R1

CLAMP

upper and lower dual tube

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

(Upper clamp) Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

851641C11

TUBE,.5" OD

bucket dump boom jumper hose to tractor valve hose

1шт.

7

851515C1

ANGLE

clamp support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

851640C11

TUBE,.5" OD

bucket roll back boom jumper hose to tractor valve hose

1шт.

9

851623C11

HYD TUBE,.5" OD

TUBE, hyd cyl bucket dump

1шт.

10

851622C11

HYD TUBE,.5" OD

TUBE, hyd cyl bucket roll-back

1шт.

11

379045R1

CLAMP

hyd, Serial Range: tube-boom

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

675846R91

HOSE ASSY.

HOSE, bucket hyd, Serial Range: cyl-tubes

4шт.

13

851568C91

CYLINDER

bucket control hyd (for component parts of this assembly, refer to "bucket control hydraulic cylinder" in section "C" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90 deg. elbow

4шт.

14

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90 deg. hyd cyl port

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port elbow

4шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port elbow

4шт.

16

675264R1

SHAFT

BAR, bucket cyl rod or upper

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

17

851444C1

PIN

BAR, bucket cyl base or lower

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

18

851577C91

HOSE

boom pivot jumper

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl hoses (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

20

407045R1

FITTING

UNION, 7/8" to 3/4" reducer union (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducer union

2шт.

21

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

coupler reducer union and connector

4шт.

22

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

23

373220R1

PLUG

CAP, coupler dust (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

24

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

25

478754R1

ADAPTER

CONNECTOR, 7/8" to 3/4" reducing (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducing connector

2шт.

26

850585C1

BAR

dual tube lower clamp

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4"

1шт.

27

851602C1

CLAMP

hyd tube triple

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
