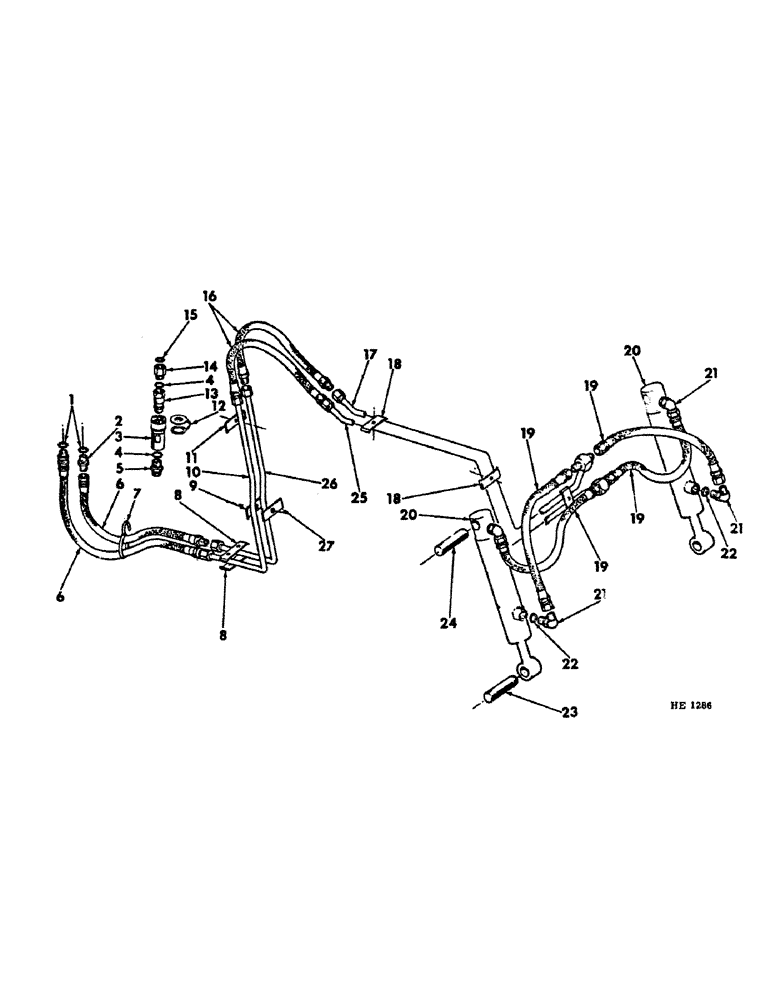

Запчасти Case IH 1850 (C-18) - BUCKET CONTROL HYDRAULIC SYSTEM

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

tractor valve reducer union

2шт.

2

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8" to 3/4" tractor valve port reducer

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

tractor reducer union

2шт.

3

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducer union and connector

4шт.

5

478754R1

ADAPTER

CONNECTOR, 7/8" to 3/4" reducing (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducing connector

2шт.

6

675297R92

HOSE

bucket dump and roll back tubes to tractor valve

2шт.

7

816502C1

STRAP

hyd hose tie

1шт.

8

851602C1

CLAMP

hyd tube triple

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

379045R1

CLAMP

lower dual tube

1шт.

10

850583C11

TUBE,12.70 mm OD x 42.4 mm L

bucket dump boom jumper hose to tractor valve hoses

1шт.

11

851448C1

CLAMP

upper dual tube

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

373220R1

PLUG

CAP, coupler dust (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

13

395149R1

QUICK MALE COUPLING

COUPLERS, self-sealing male (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

14

407045R1

FITTING

UNION, 7/8" to 3/4" reducer union (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducer union

2шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl hoses (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

16

851577C91

HOSE

boom pivot jumper

2шт.

17

851607C11

HYD TUBE,.5" OD

TUBE, hyd cyl bucket roll-back

1шт.

18

379045R1

CLAMP

hyd, Serial Range: tube-boom

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

675846R91

HOSE ASSY.

HOSE, bucket hyd, Serial Range: cyl-tubes

4шт.

20

851568C91

CYLINDER

bucket control hyd (for component parts of this assembly refer to "bucket control hydraulic cylinder" in section "C" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90 deg. elbow

4шт.

21

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90 deg. hyd cyl port

4шт.

570818R1

O-RING, hyd cyl port elbow

4шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port elbow

4шт.

23

675264R1

SHAFT

BAR, bucket cyl rod or upper

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

24

851444C1

PIN

BAR, bucket cyl boom or lower

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

25

851606C11

TUBE

hyd cyl bucket dump

1шт.

26

851469C11

TUBE

bucket roll back boom jumper hoses to tractor valve hose

1шт.

27

850585C1

BAR

dual tube lower clamp

1шт.

180089

SPRING

5/16 x 2-1/4"

1шт.
