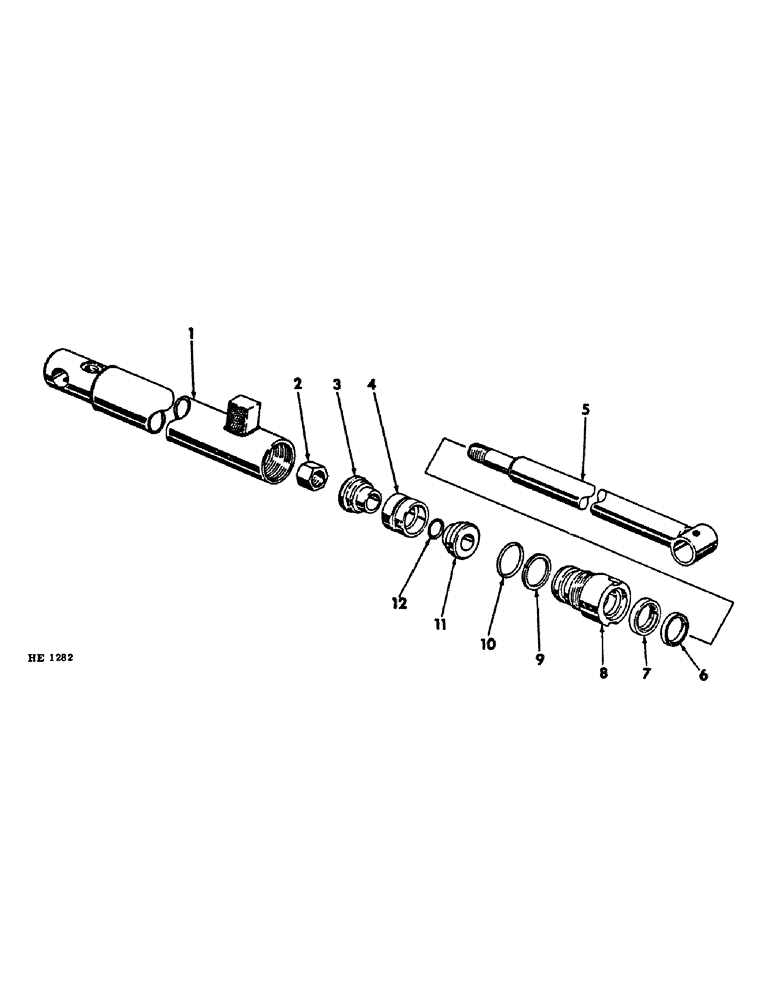

Запчасти Case IH 1850 (C-17) - BOOM LIFT HYDRAULIC CYLINDER, 2 X 25.70 DOUBLE ACTING

851495C91

CYLINDER

boom or loader lift hyd (composed of all parts listed below) (listing is for (1) one hyd cyl)

2шт.

1

850595C1

BODY, hyd cyl

1шт.

2

811850C1

NUT

7/8"-NF special hex-lk

1шт.

3

850580C1

PISTON

hyd cyl rod rear half

1шт.

4

SEAL, 2" hv-duty gland (for service order 1-850581C91, kit) (NSS)

1шт.

5

850596C1

ROD

hyd cyl piston

1шт.

6

SEAL, 1-1/2" dia cyl head dust (for service order 1-850581C91, kit) (NSS)

1шт.

7

SEAL, 1-1/2" dia gland (for service order 1-850581C91, kit) (NSS)

1шт.

8

850597C1

END

hyd cyl

1шт.

9

RING, 2" dia back-up (for service order 1-850581C91, kit) (NSS)

1шт.

10

O-RING, 2" dia (for service order 1-850581C91, kit) (NSS)

1шт.

11

850579C1

PISTON

hyd cyl rod front half

1шт.

12

O-RING, 7/8" dia hyd cyl piston (for service order 1-850581C91, kit) (NSS)

1шт.

850581C91

SEAL KIT

hyd cyl seal service composed of: (1) o-ring (NSS), (1) o-ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) seal (NSS)

1шт.
