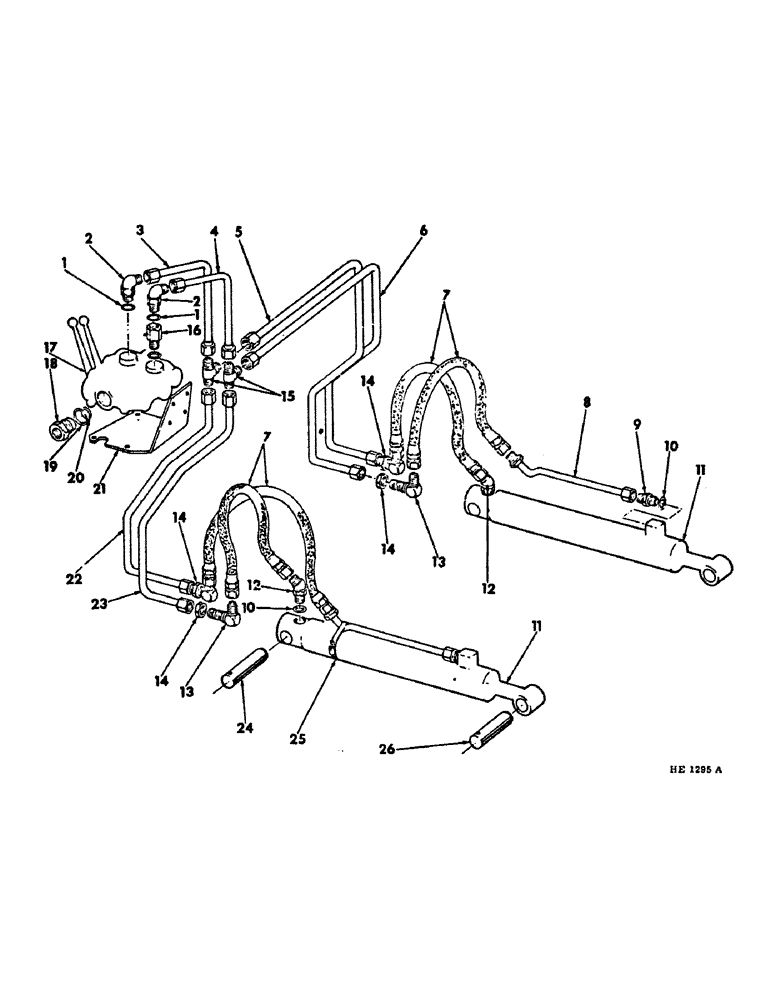

Запчасти Case IH 1850 (C-14) - BOOM LIFT HYDRAULIC SYSTEM

1

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

control valve elbow

3шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90deg. control valve lower circuit port & raise circuit restrictor

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

control valve elbow

2шт.

3

851511C11

HYD TUBE,.5" OD x 6", 2.4" L

TUBE, tee to control valve lower circuit port

1шт.

4

851507C11

TUBE,.5" OD x 5.2", 3.6" L

tee to control valve raise circuit port

1шт.

5

851510C11

TUBE,.5" OD

bulkhead to tee lower circuit LH

1шт.

6

851509C11

TUBE,.5" OD

bulkhead to tee raise circuit LH

1шт.

7

675846R91

HOSE ASSY.

HOSE, lift hyd cyl raising & lowering circuit

4шт.

8

851608C11

TUBE,.5" OD

hyd cyl front port to hose lower circuit

2шт.

9

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4" hyd cyl front port

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port union

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

boom lift hyd cyl port

4шт.

11

851495C91

CYLINDER

loader lift hyd (for component parts of this assembly, refer to "boom lift hydraulic cylinder" in section "C" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90deg. elbow

4шт.

12

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 45deg. hyd cyl rear port

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl rear port elbow

2шт.

13

469997R1

ELBOW

3/4" - 90deg. sub-frame bulkhead union

4шт.

14

9403294

NUT

3/4" bulkhead union lk

4шт.

15

9402982

TEE,3/4"-16, 37 Degree

3/4" three-way

2шт.

16

675453R91

VALVE

RESTRICTOR, control valve raise port

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

raise port restrictor

1шт.

17

851629C91

VALVE

hyd control (for component parts of this assembly, refer to "hydraulic control valve" in section "C" of this catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

SLEEVE, control valve power beyond (for service order 1-851635C91, kit) (NSS)

1шт.

19

850249C1

SEAL

control valve power beyond port

1шт.

20

666218R1

SEAL

SEAL, control valve power beyond port

1шт.

21

851535C1

BRACKET

hyd control valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

851512C11

TUBE,.5" OD

bulkhead to tee lower circuit RH

1шт.

23

851508C11

TUBE,.5" OD

bulkhead to tee raise circuit RH

1шт.

24

851506C1

PIN

BAR, hyd cyl base or rear

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

25

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hyd cyl lower circuit tube

2шт.

26

675264R1

SHAFT

BAR, hyd cyl rod or front

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

851635C91

KIT

power beyond conversion composed of: (1) sleeve (NSS), (1) seal 850249C1, (1) seal 666218R1

1шт.
