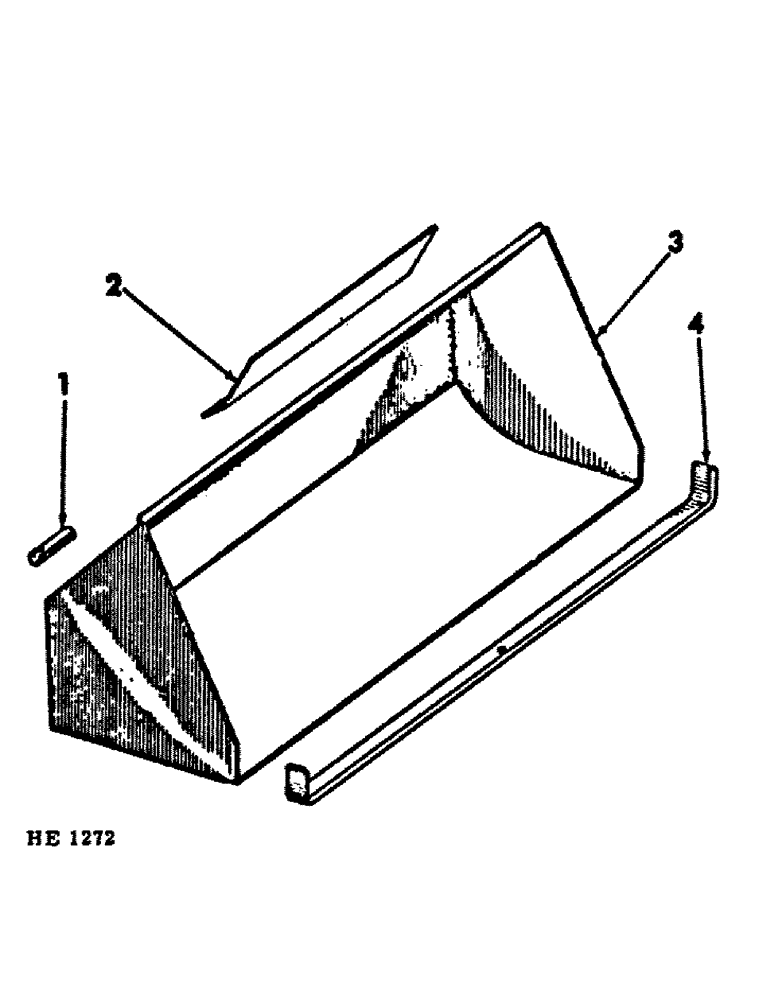

Запчасти Case IH 1850 (C-09) - SNOW BUCKET

1

851506C1

PIN

BAR, bucket pivot

2шт.

378484R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

2

851628C1

GUARD

spill

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3

BUCKET, 84" snow (order on machine order form)

1шт.

4

851612C1

BLADE

EDGE, snow bucket cutting (welded)

1шт.
