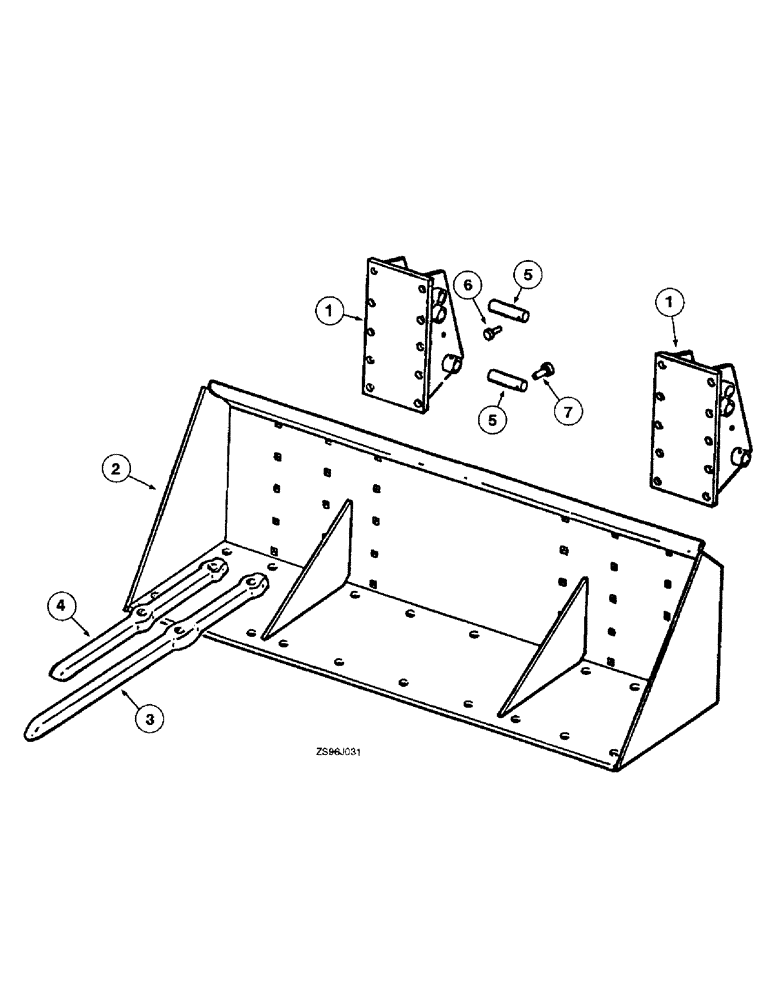

Запчасти Case IH 1850 (7-10) - MANURE BUCKET, WITH TWO PIECE MOUNTING BRACKETS

1

REF

INSTRUCTION

SUPPORT ASSEMBLY - bucket mounting, serviced only as a machine attachment

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (replaces 180175)

20шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch (replaces 607895R1)

20шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

20шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

20шт.

2

REF

INSTRUCTION

BUCKET - 60 inch manure, serviced only as a machine attachment

1шт.

2

REF

INSTRUCTION

BUCKET - 72 inch manure, serviced only as a machine attachment

1шт.

3

851425C1

TINE

- inner, 60 inch, manure fork

6шт.

3

851817C1

TINE

- inner, 72 inch, manure fork

8шт.

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch (replaces 19064R1)

12-16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

12-16шт.

4

851426C1

TINE

- outer, 60 inch, manure fork

2шт.

4

851818C1

TINE

- outer, 72 inch, manure fork

2шт.

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch (replaces 19064R1)

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

8шт.

5

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket (replaces 851771C1)

4шт.

6

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

7

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

851483C1

SUPPORT

ASSEMBLY - bucket hinge, LH, inner, order for service for left-hand side

1шт.

851484C1

SUPPORT

ASSEMBLY - bucket hinge, LH, outer, order for service for left-hand side

1шт.

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

- 35/64 ID x 4-11/16 inch, cylinder stop, order for service for left-hand side

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch (replaces 485734R1), order for service for left-hand side

6шт.

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch (replaces 20546R1), order for service for left-hand side

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378), Order for service for LH side 1/2"-13, G5

1шт.

851925C2

SUPPORT

ASSEMBLY - bucket hinge, RH, inner, order for service for right-hand side

1шт.

851926C2

SUPPORT

ASSEMBLY - bucket hinge, RH, outer, order for service for right-hand side

1шт.

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

- 35/64 ID x 4-11/16 inch, cylinder stop, order for service for right-hand side

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch (replaces 485734R1), order for service for right-hand side

6шт.

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch (replaces 20546R1), order for service for right-hand side

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378), Order for service for RH side 1/2"-13, G5

1шт.
