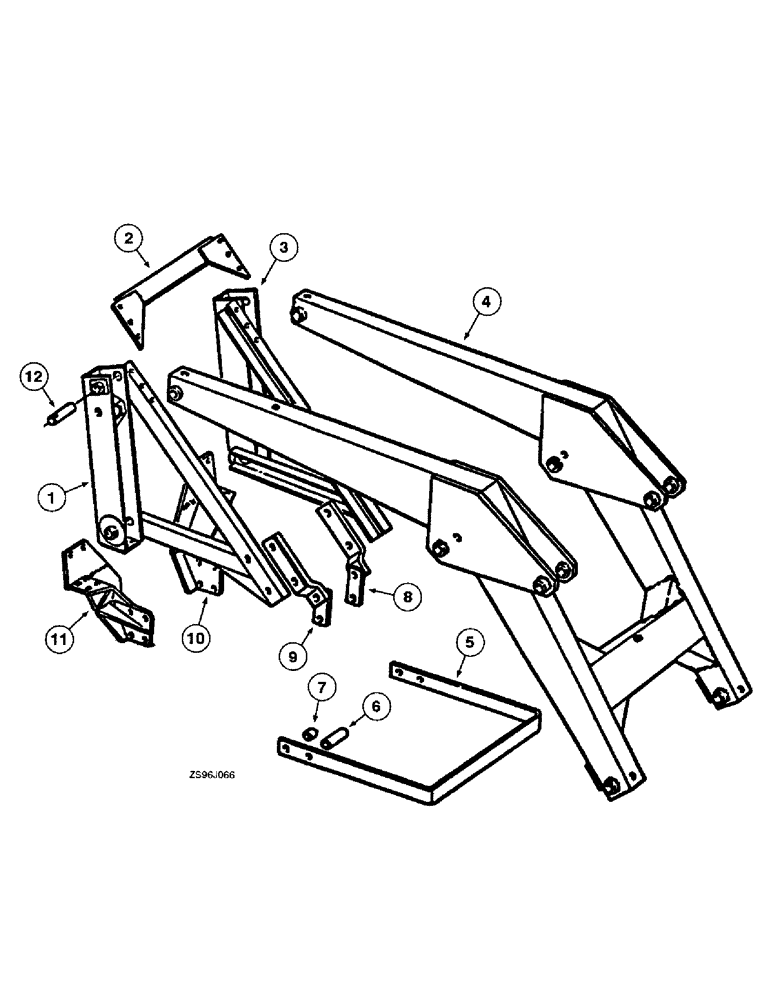

Запчасти Case IH 1850 (7-06) - SUB-FRAME AND BOOM

1

851644C1

FRAME

- sub RH

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (replaces 180175)

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

2

851638C1

MEMBER

CROSSMEMBER - sub-frame

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 180145) Hex, 7/16"-14 x 1", G5, Full Thd

6шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces 271501)

6шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces 120383) 7/16"

6шт.

3

852967C91

FRAME

- sub LH, with decals (replaces 851643C1)

1шт.

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual, (replaces 1254170C1)

1шт.

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (replaces 180175)

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

4

851433C1

BOOM

- loader

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch (replaces 273355)

4шт.

5

676530R1

GUARD

- grille

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch (replaces 271779)

4шт.

6

676529R1

SPACER

- grille guard mounting front

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch (replaces 271779)

2шт.

7

630281R1

SPACER - grille guard mounting rear (replaces 630281C1), no longer available

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch (replaces 271779)

2шт.

8

851649C1

SUPPORT

- sub-frame front, LH

1шт.

9

851650C1

SUPPORT

- sub-frame front, RH

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch (replaces 271776)

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Replaces 271771)

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (replaces 271773)

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

4шт.

10

676511R92

SUPPORT

- sub-frame rear, LH

1шт.

11

676512R92

BRACKET

SUPPORT - sub-frame rear, RH

1шт.

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

(Replaces 271546) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

8шт.

12

851506C1

PIN

- loader boom pivot

2шт.

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.
