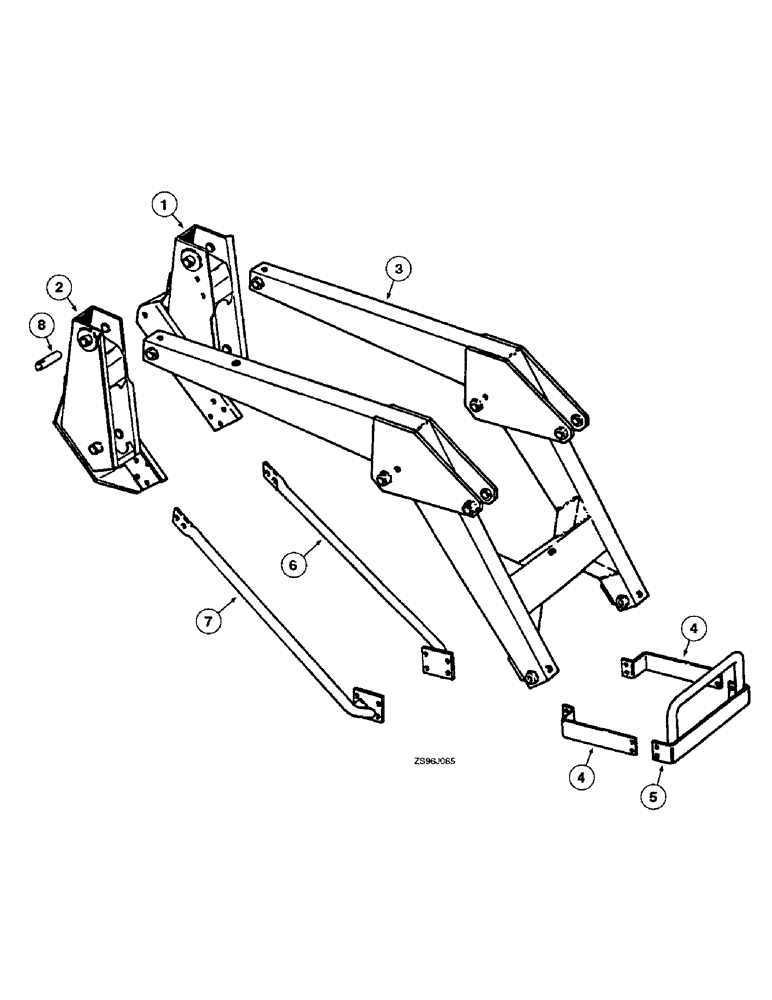

Запчасти Case IH 1850 (7-04) - SUB-FRAME & BOOM, FOR INTERNATIONAL 1850 LOADER MOUNTED TO AN INTERNATIONAL 624, 724 & 824 TRACTORS

1

851578C1

FRAME

- sub LH, with decals

1шт.

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual (replaces 1254170C1)

1шт.

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

2

851579C1

FRAME

- sub RH, no longer available

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch (replaces 21782R1)

1шт.

495-81165

WASHER,17/32" x 1 3/4" x .060"

- flat, 17/32 x 1-3/4 x 35/64 inch (replaces 22197R1)

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch (replaces 464623R1)

2шт.

3

851433C1

BOOM

- loader

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch (replaces 273355)

4шт.

4

851590C1

SUPPORT

- grille guard, no longer available

2шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548)

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch (replaces 271726)

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

2шт.

5

851591C1

GUARD

- tractor grille, no longer available

1шт.

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - carriage, 5/8 NC x 1-1/2 inch (replaces 467657R1)

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

6

851537C1

SUPPORT

- diagonal frame, LH

1шт.

7

851538C1

SUPPORT

- diagonal frame, RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (replaces 271724)

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch (replaces 271767)

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

4шт.

8

851506C1

PIN

- boom pivot

2шт.

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

495-81289

WASHER,1.25" ID x 2.75" OD x 0.16" Thk

- flat 1-5/32 x 1-3/4 x 7/64 inch (replaces 478258R1)

12шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.
