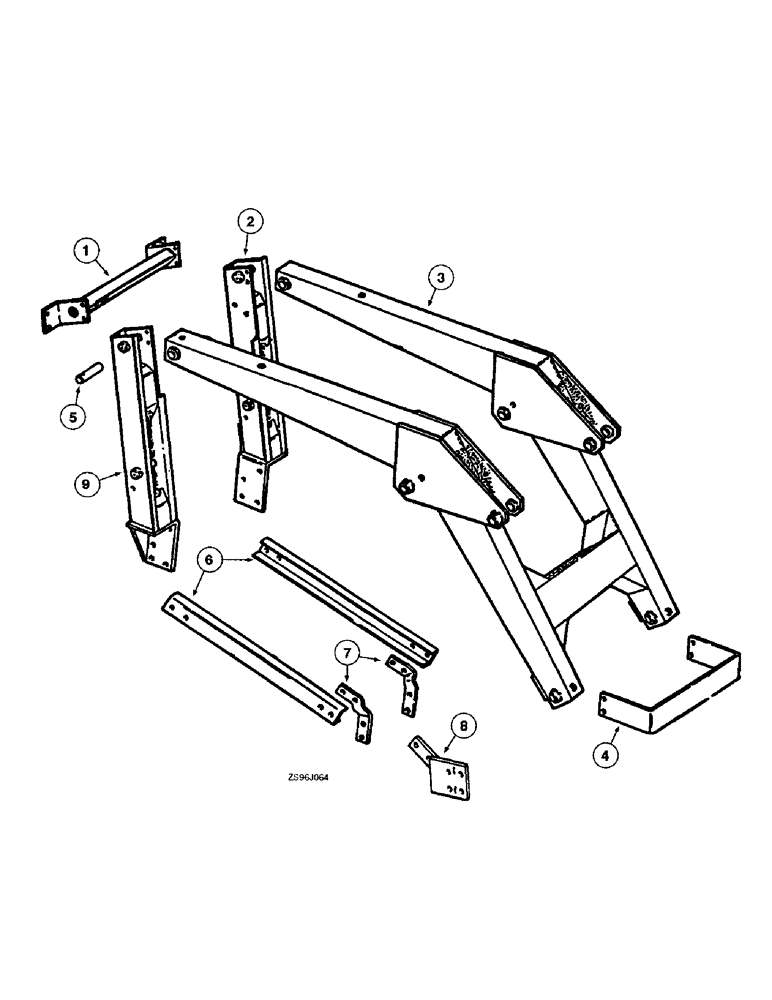

Запчасти Case IH 1850 (7-02) - SUB-FRAME & BOOM, FOR INTL LOADER MOUNTED TO AN INTL 454, 464, 474, 574, 674, 2400B & 2500B TRACS.

1

851565C1

MEMBER

CROSSMEMBER - sub-frame

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch (replaces 598813R1)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

8шт.

2

852966C91

FRAME

- sub LH, with decals (replaces 851550C2)

1шт.

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual, caution, (replaces 1254170C1)

1шт.

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

1334171C1

DECAL

- warning (replaces 852125C2)

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch (replaces 271767)

4шт.

3

851433C1

BOOM

- loader bucket

1шт.

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch (replaces 273355)

4шт.

4

851528C1

GUARD

- tractor grille, no longer available

1шт.

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch (replaces 271765)

4шт.

5

1329594C1

PIN,28.57mm OD x 195mm L

- boom pivot (replaces 851771C1)

2шт.

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

6

851517C1

CHANNEL

TUBE ASSEMBLY - diagonal support, 39.11 inch for use with loaders built 1972 on 454 tractors, for use with loader built 1972 and since on 454, 464, 474, 574, 674, 2400B and 2500B tractors

2шт.

6

851522C1

CHANNEL

- diag support, LH, 41.11 inch, for loader built 1972 on 574 tractor for service order 1, 851517C1 channel and 1, 850730C1 support

1шт.

6

851523C1

CHANNEL

- diag support, RH, 41.11 inch, for loader built 1972 on 574 tractor, for service order 1, 851517C1 channel and 1, 850731C1 support

1шт.

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch (replaces 271765)

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch (replaces 271767)

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (replaces 271769)

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

8шт.

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch (replaces 23245R1)

6шт.

7

851513C1

SUPPORT

- channel front end, LH, for 454 tractor order 1, 850730C1 support, for 574 tractor order 1, 850730C1 support and 1, 851517C1 channel

1шт.

7

851514C1

SUPPORT

- channel front end, RH, for 454 tractor order 1, 850731C1 support, for 574 tractor order 1, 850731C1 support and 1, 851517C1 channel

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (replaces 271769)

8шт.

8

850730C1

SUPPORT

- channel front end LH, 1972 and after, no longer available

1шт.

8

850731C1

SUPPORT

- channel front end RH, 1972 and after, no longer available

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (replaces 271769)

4шт.

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch (replaces 23245R1)

4шт.

9

851551C2

FRAME

- sub RH, no longer available

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch (replace 271767)

4шт.
