Запчасти Case IH 1850 (7-74) - DECALS

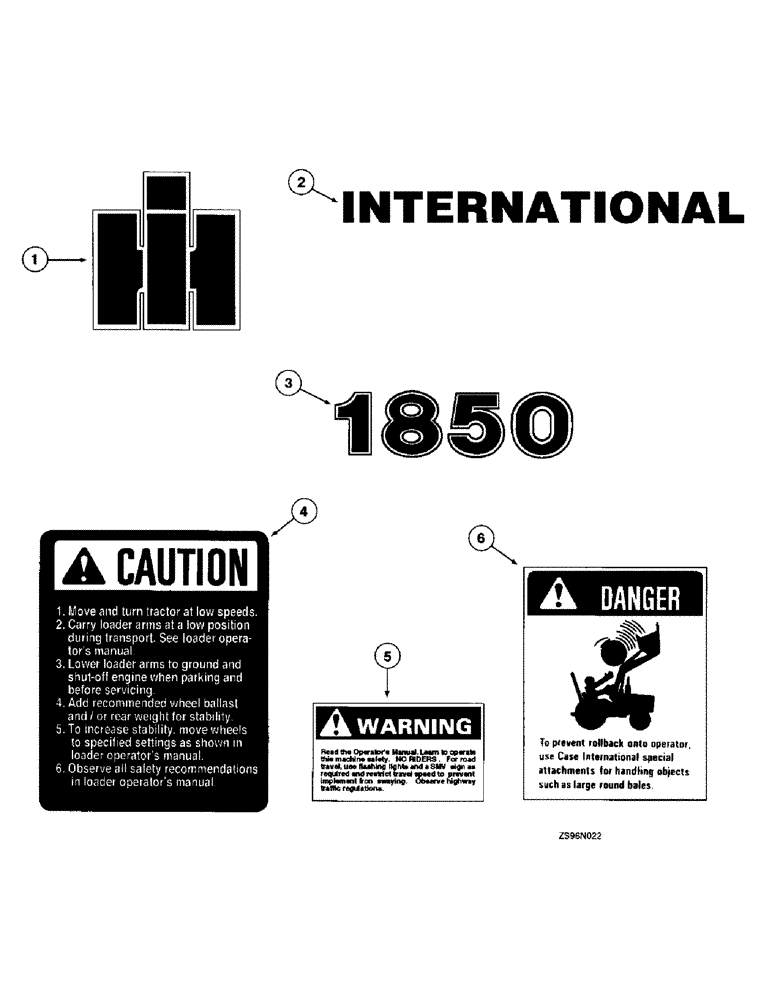

Схема запчастей Case IH 1850 - (7-74) - DECALS
3
5
2
1
4
6

Артикул

Название

Примечание

Количество

77583C91

PACKAGE

KIT - decal, CASE-IH trademark, large size, no longer available, order as needed the following below

1шт.

1

27775R1

PRODUCT GRAPHIC

DECAL - CASE-IH trademark, 6-37/64 x 7-3/32 inch

2шт.

1

27776R1

DECAL

- CASE-IH trademark, 7-11/16 x 8-17/64 inch

2шт.

1

27777R1

DECAL

- CASE-IH trademark, 10-15/64 x 11-1/32 inch

2шт.

77582C91

PACKAGE

KIT - decal, IH trademark, medium size, no longer available, order as needed the following below

1шт.

1

27772R1

DECAL

- CASE-IH trademark, 3-21/32 x 3-15/16 inch

2шт.

1

27773R1

PRODUCT GRAPHIC

DECAL - CASE-IH trademark, 4-25/64 x 4-23/32 inch

2шт.

1

27774R1

DECAL

- CASE-IH trademark, 5-31/64 x 5-29/32 inch

2шт.

77581C91

PRODUCT GRAPHIC

KIT - decal, IH trademark, small size, no longer available, order as needed the following below

1шт.

1

27769R1

DECAL

- CASE-IH trademark, 1-15/32 x 1-37/64 inch

2шт.

1

27770R1

PRODUCT GRAPHIC

DECAL - CASE-IH trademark, 2-3/16 x 2-23/64 inch

2шт.

1

27771R1

DECAL

- CASE-IH trademark, 2-15/16 x 3-5/32 inch

2шт.

547495R92

DECAL KIT

KIT - decal, International, name, no longer available, order as needed the following below

1шт.

2

2752306R1

DECAL

- Case International, 9/16 x 8-9/16 inch

2шт.

2

2752308R1

DECAL

- Case International, 15/16 x 14-1/16 inch

2шт.

2

2752311R1

DECAL

- Case International, 1-1/2 x 23-1/8 inch

2шт.

2

2752315R1

DECAL

- Case International, 2-1/4 x 35-1/8 inch

2шт.

547497R92

DECAL

KIT - decal - service, model numbers, no longer available, order as needed the following below

1шт.

3

71810C1

DECAL

- model numbers, 1-1/16 inch, white with black border

2шт.

3

71811C1

DECAL

- model numbers, 2 inch, white with black border

2шт.

3

71812C1

DECAL

- model numbers, 3-1/2 inch, white with black border

2шт.

3

71813C1

DECAL

- model numbers, 3-1/2 inch, solid black

2шт.

4

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

5

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual, caution (replaces 1254170C1)

1шт.

6

1334171C1

DECAL

- warning, rollback prevention (replaces 852125C2)

1шт.

Выбрано товаров: 25
