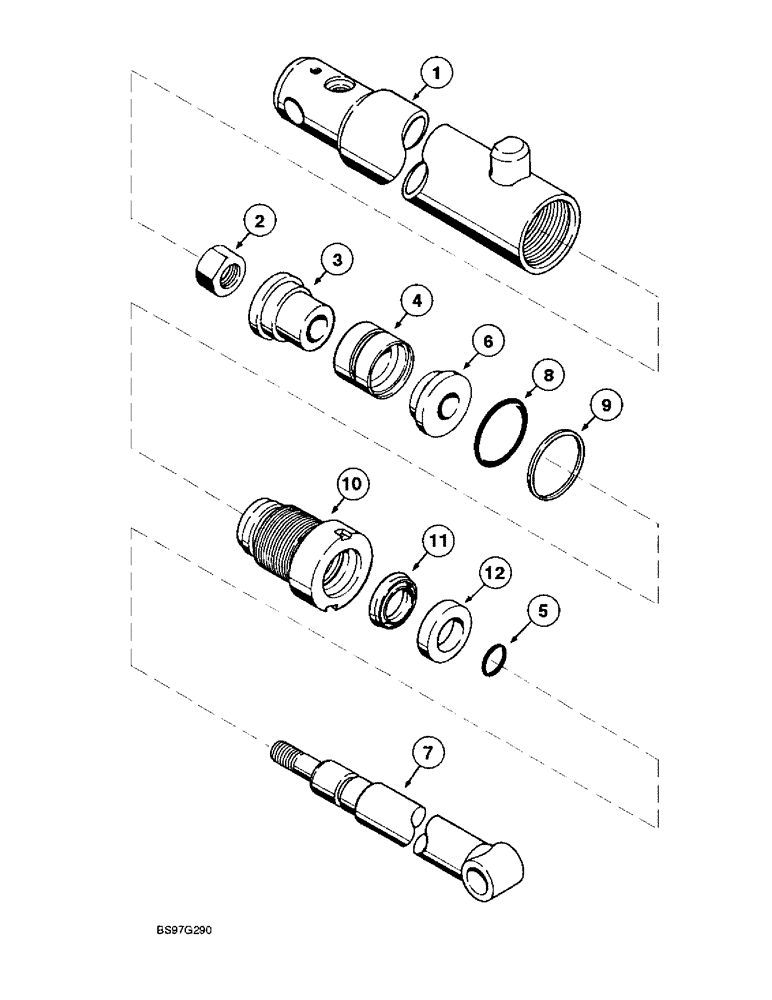

Запчасти Case IH 1850 (7-68) - BOOM LIFT HYDRAULIC CYLINDER, 2 X 25.70 INCH STROKE, ALCO EQUIPMENT

851495C91

CYLINDER

ASSEMBLY - 2 ID x 25.70 inch stroke, boom lift hydraulic.., Includes: Ref. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

811850C1

NUT

- hex, 7/8 inch NF

1шт.

3

850580C1

PISTON

- rear half

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, - 2 inch, heavy duty gland

1шт.

Part of seal kit P/N 850581C91

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID, hydraulic cylinder piston

1шт.

Part of seal kit P/N 850581C91

1шт.

6

850579C1

PISTON

- front half, no longer available

1шт.

7

850596C1

ROD

ASSEMBLY - piston

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 2 inch dia.

1шт.

Part of seal kit P/N 850581C91

1шт.

9

NSS

NOT SOLD SEPARAT

RING - 2 inch dia.

1шт.

Part of seal kit P/N 850581C91

1шт.

10

850597C1

END

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - 1-1/2 inch dia cylinder head dust

1шт.

Part of seal kit P/N 850581C91

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - 1-1/2 inch dia gland

1шт.

Part of seal kit P/N 850581C91

1шт.

850581C91

SEAL KIT

- seal, Includes: Ref. 4, 5, 8, 9, 11 and 12

1шт.
