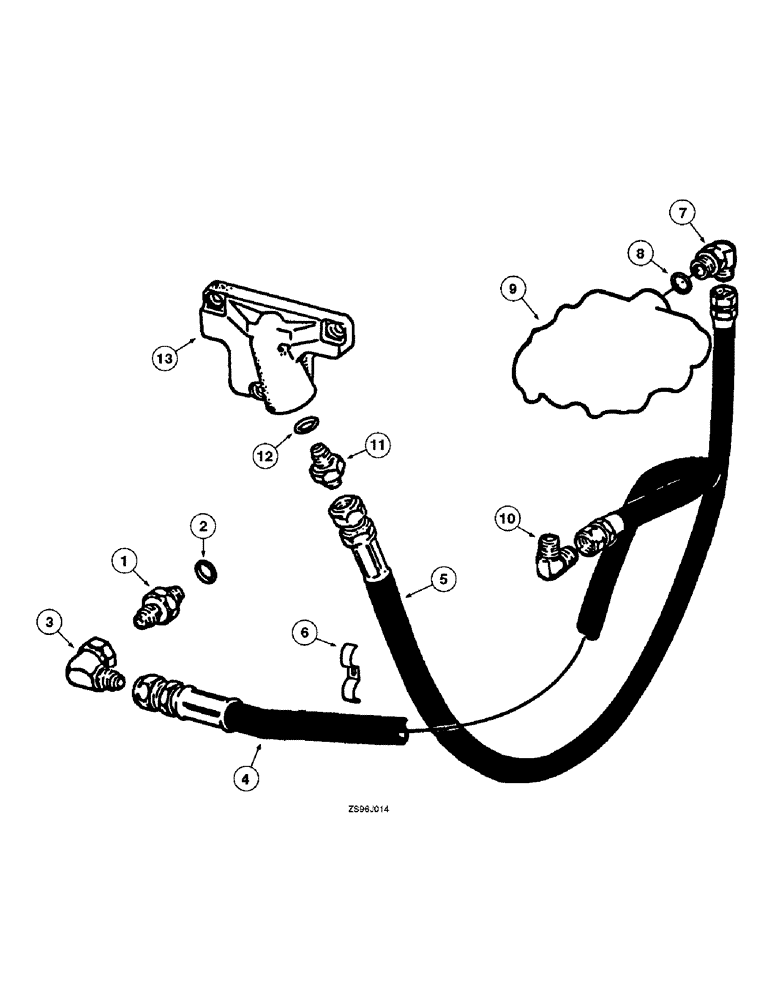

Запчасти Case IH 1850 (7-62) - TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss (replaces 222648H1)

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (replaces 296247R1)

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel (Replaces 9410282)

1шт.

4

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

5

851625C91

HOSE

- tractor to control valve pressure line, 58 inch long

1шт.

6

379045R1

CLAMP

- hose, hydraulic, dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978)

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

10

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- flared tube, 90 degree (replaces 9402866)

1шт.

11

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

CONNECTOR - reducing

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk (Replaces 297459R1)

1шт.

13

470603R4

MANIFOLD

- power beyond, tractor valve bank cover

1шт.
