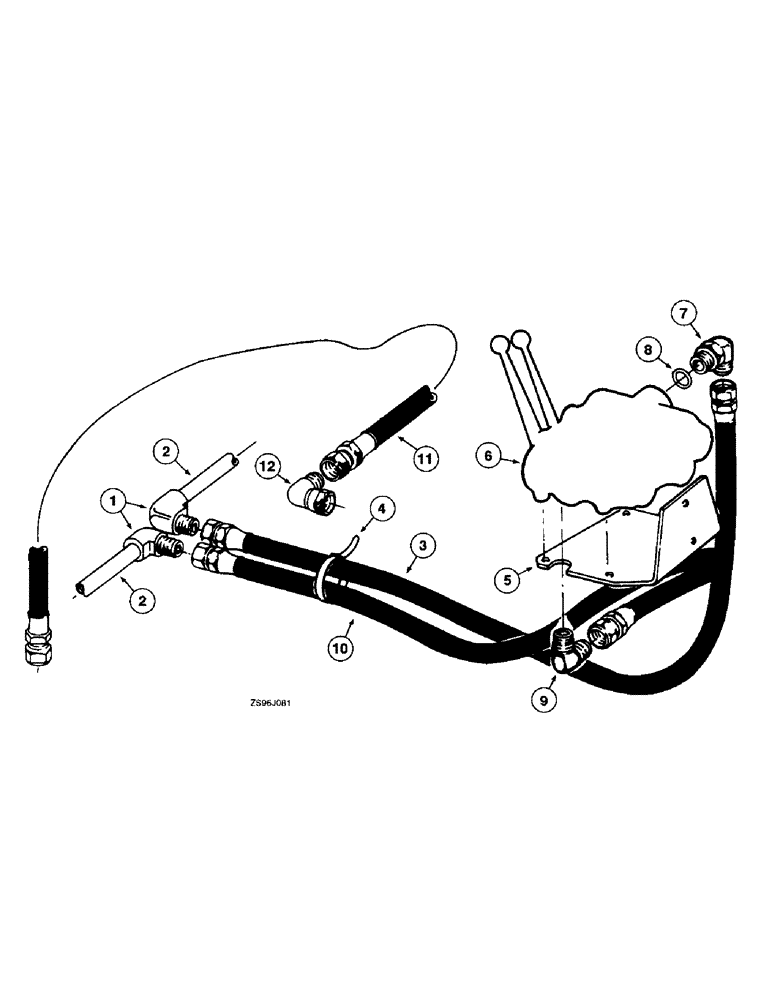

Запчасти Case IH 1850 (7-60) - TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

851631C1

FITTING

- hydraulic valve control, no longer available

2шт.

2

REF

INSTRUCTION

TUBE, tractor hydraulic return, refer to TC-135 for 454 or TC-136 for 574 tractor catalog

1шт.

3

850738C91

HOSE

- tractor return tube to control valve pressure, 66 inch long

1шт.

4

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hydraulic hose

1шт.

5

851621C1

SUPPORT

- hydraulic valve control, no longer available

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces 180079)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

6

REF

INSTRUCTION

VALVE - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

9

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- flared tube, 90 degree (replaces 9402866)

1шт.

10

851625C91

HOSE

- tractor return tube to control valve return, 58 inch long

1шт.

11

675974R91

HOSE ASSY.

HOSE ASSEMBLY - tractor flow control valve housing, elbow to tractor variable valve, 40-1/2 inch long

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel (Replaces 9410281)

1шт.
