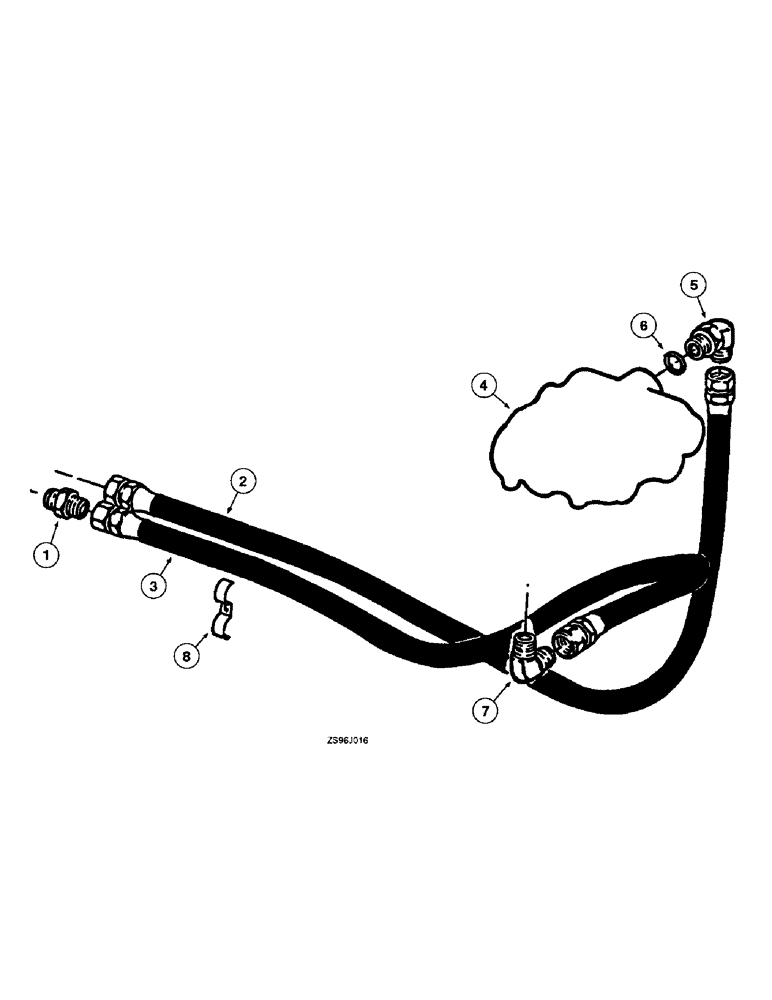

Запчасти Case IH 1850 (7-58) - TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - flared, 5/8-16 inch (replaces 9402788)

1шт.

2

851625C91

HOSE

- tractor to control valve pressure line, 58 inch long

1шт.

3

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

7

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- flared tube, 90 degree (replaces 9402866)

1шт.

8

379045R1

CLAMP

- hose, hydraulic hose dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.
