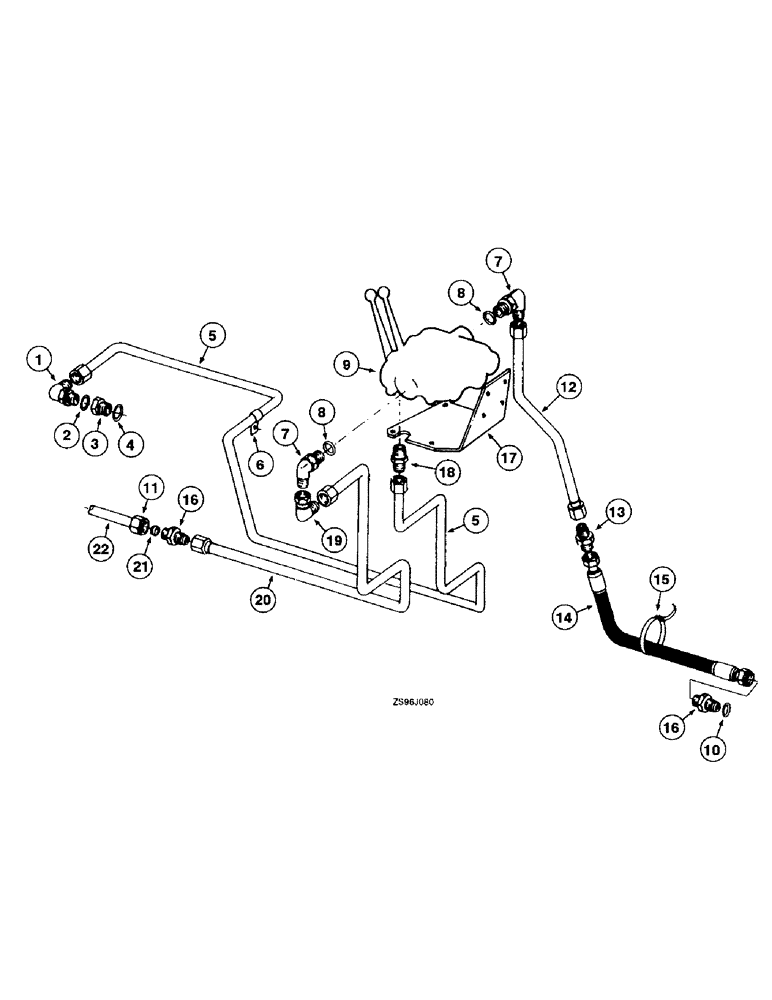

Запчасти Case IH 1850 (7-56) - TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

3

851530C1

ADAPTER

ADAPTOR - tractor drain hole

1шт.

4

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Adaptor packing M26 x 31 x 2

1шт.

5

851516C11

TUBE,.5" OD

- valve outlet to tractor drain return

1шт.

6

213932H1

CLAMP

- tractor hitch cylinder cap, no longer available

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

2шт.

9

REF

INSTRUCTION

VALVE, hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

10

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Hydraulic pump oil filter packing M18 x 24 x 1.5

1шт.

11

3143333R1

TUBE NUT,Coupling, M22 x 1.5

NUT - tractor hitch hydraulic pressure

1шт.

12

851487C11

HYD TUBE,15.88 mm OD x 18 mm L

TUBE - pressure valve inlet

1шт.

13

851479C1

CONNECTOR, ELEC

CONNECTOR - hose pressure inlet and power beyond tube, no longer available

2шт.

14

3058711R92

HOSE

- tractor hydraulic pump pressure, 25-3/8 inch long

1шт.

15

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, pressure hose

1шт.

16

3225748R1

HYD CONNECTOR,M18 x 1.5 x M22 x 1.5

CONNECTOR - pressure hose to hydraulic pump filter, 624 serial no. 819219 and above, 724 serial no. 2368 and above (replaces 3058415R1)

1шт.

17

851535C1

BRACKET

- valve support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

18

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 1/2-20 flare x 1/2-20 inch O-ring boss (replaces 255678C1)

1шт.

19

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel (Replaces 9410282)

1шт.

20

851470C11

TUBE,15.88 mm OD x 18 mm L

- power beyond port to tractor hitch pressure tube

1шт.

21

851504C1

FERRULE

SLEEVE - tractor hitch pressure tube

1шт.

22

REF

INSTRUCTION

TUBE - tractor hitch pressure, to make this tube order 1, 3131035R91 tube and refer to setting-up instructions for rework diagram

1шт.
