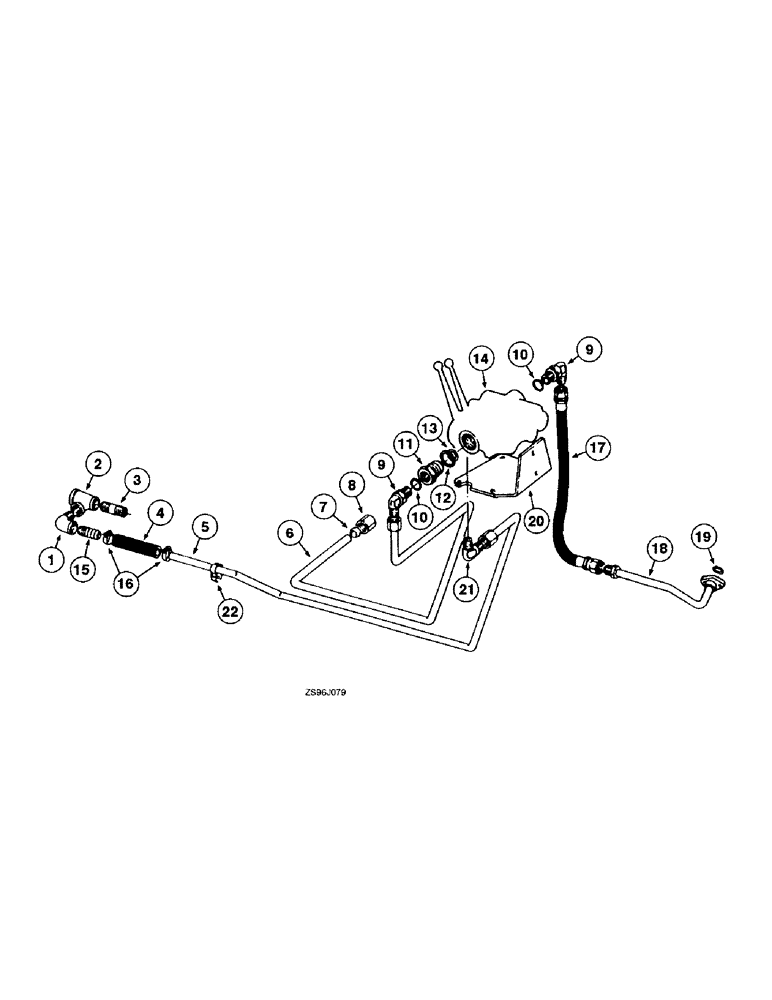

Запчасти Case IH 1850 (7-54) - TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree, 1/2 inch PT (replaces 108686)

1шт.

2

218-246

TEE - reducing, pipe to tube hydraulic return, no longer available

1шт.

3

219-658

NIPPLE - tee, reducing pipe

1шт.

4

6626C1

HOSE - return, 7 inch long, no longer available

1шт.

5

851548C11

TUBE,.625" OD

- hydraulic return

1шт.

6

851556C11

HYD TUBE,.5" OD

TUBE - power beyond to tractor hitch

1шт.

7

705519R1

RING

- 1/2 inch tube nut sealing

1шт.

8

705520R1

NUT,0.69" Length

- 1/2 inch tube nut

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adjustable (replaces 936450R91), Includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

851635C91

KIT

- power beyond port conversion, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - hydraulic control valve, order kit 851635C91

1шт.

12

D48086

SEAL,1.358" ID

SEAL - power beyond port (replaces 850249C1)

1шт.

13

666218R1

SEAL

SEAL - plug valve assembly

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

15

675307R1

FITTING

- hydraulic return hose

1шт.

16

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Hydraulic return hose (Replaces 122316R91) #12, 0.69/1.25 Type F Worm

2шт.

17

131129H1

HOSE

- tractor hydraulic pump pressure, 24 inch long (replaces 675846R91)

1шт.

18

1334018C1

TUBE

- tractor to hydraulic pump pressure (replaces 850326C1)

1шт.

19

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

Square section (Replaces 352221R1) -113, 70 Duro, .549" ID x .103" Thk

1шт.

20

851621C1

SUPPORT

- hydraulic control valve, no longer available

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces 180079)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120376) 5/16"

2шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- flared tube, 90 degree (replaces 9402866)

1шт.

22

676045R1

CLAMP

- hydraulic return tube

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (replaces 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Replaces 180024) Hex, 1/4"-20 x 1 1/4", G5

2шт.
