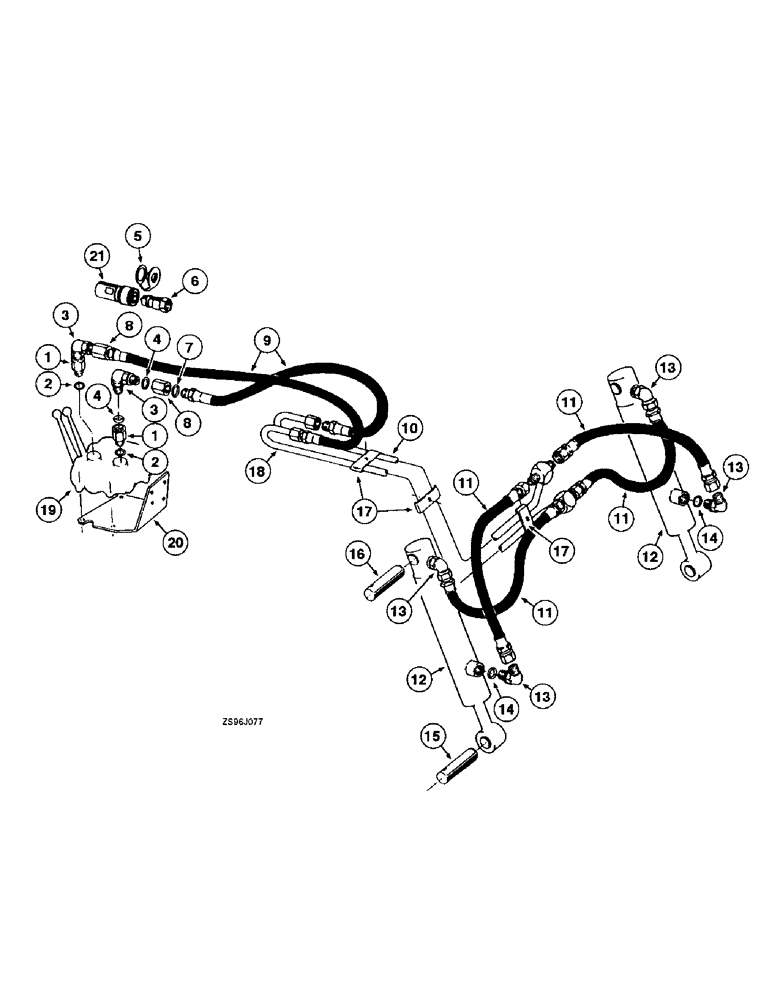

Запчасти Case IH 1850 (7-48) - BUCKET CONTROL HYDRAULIC SYSTEM

1

372852R1

ADAPTER

UNION - valve assembly, hydraulic control, Includes: Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

3

D48874

ELBOW

- valve assembly, hydraulic control (replaces 196973C1), Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

5

373220R1

PLUG

- dust, plastic

2шт.

5

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

2шт.

6

1272399C2

QUICK MALE COUPLING

COUPLER - self-sealing, male, 7/8 inch NF, ISO standard (replaces 385149R1)

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

6шт.

8

584802R1

CONNECTOR, ELEC

UNION - straight

2шт.

9

851624C91

HOSE

- bucket control, hydraulic tubes to hydraulic valve, 27 inch long

1шт.

10

851622C11

HYD TUBE,.5" OD

TUBE - bucket control, hydraulic cylinder bucket roll-back

1шт.

11

131129H1

HOSE

- hydraulic cylinder to tube, 24 inch long (replaces 675846R91)

4шт.

12

853613C92

CYLINDER

ASSEMBLY - bucket hydraulics parts list Figure 7-70, no longer available, order 1272452C1 cylinder, see below

2шт.

12

1272452C1

CYLINDER,Double Acting, 28.57mm Rod, 466.73mm Stroke

ASSEMBLY - bucket hydraulics, parts list Figure 7-70

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch (replaces 109462)

4шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 14

4шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

15

REF

INSTRUCTION

PIN - bucket cylinder rod and boom, for service, Serial Range: refer-buckets

4шт.

16

851444C1

PIN

- pivot, hydraulic cylinder base

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

12шт.

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

17

379045R1

CLAMP

- hose, hydraulic tube dual

3шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (replaces 180077)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

3шт.

18

851623C11

HYD TUBE,.5" OD

TUBE - bucket control, cylinder bucket dump

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

20

851535C1

BRACKET

- valve support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

21

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with1272399C2 (replaces 395150R91)

2шт.
