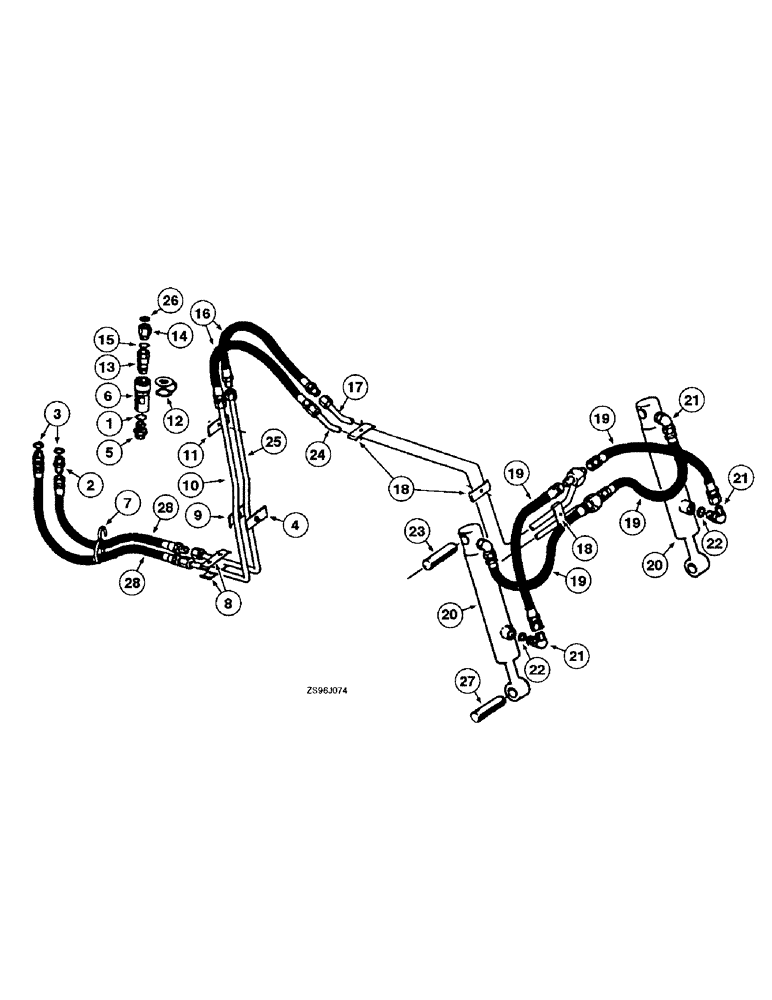

Запчасти Case IH 1850 (7-38) - BOOM CONTROL HYDRAULIC SYSTEM

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

4шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss (Replaces 481352R1), Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

4

850585C1

BAR

- dual tube lower clamp

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (replaces 180089)

1шт.

5

218-430

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - straight, 7/8-14 flare x 3/4-16 inch (replaces 478754R1)

2шт.

6

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with1272399C2 (replaces 395150R91)

2шт.

7

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hydraulic hose

1шт.

8

851602C1

CLAMP

- hydraulic tube triple, no longer available

2шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (replaces 180081)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

9

379045R1

CLAMP

- hose, lower dual tube

1шт.

10

850583C11

TUBE,12.70 mm OD x 42.4 mm L

- bucket dump boom jumper hose to tractor valve hoses, no longer available

1шт.

11

851448C1

CLAMP

- upper dual tube

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (replaces 180081)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

1шт.

12

373220R1

PLUG

- dust, plastic

2шт.

12

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

2шт.

13

1272399C2

QUICK MALE COUPLING

COUPLER - self-sealing, male, 7/8 inch NF, ISO standard (replaces 385149R1)

2шт.

14

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

- straight, 7/8-14 male, O-ring boss x 3/4 inch female (replaces 407045R1), Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

16

851577C92

HOSE

- 30 inch, lift cylinder, raise and lower

2шт.

17

851607C11

HYD TUBE,.5" OD

TUBE - hydraulic cylinder bucket roll-back

1шт.

18

379045R1

CLAMP

- hose, hydraulic, Serial Range: tube-boom

3шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (replaces 180077)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

3шт.

19

131129H1

HOSE

- 24 inch, bucket hydraulic, Serial Range: cylinder-tubes

4шт.

20

853613C92

CYLINDER

ASSEMBLY - bucket hydraulics, parts list Figure 7-70, no longer available, order 1272452C1 cylinder, see below

2шт.

20

1272452C1

CYLINDER,Double Acting, 28.57mm Rod, 466.73mm Stroke

ASSEMBLY - bucket hydraulics, parts list Figure 7-70

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch (replaces 109462)

4шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 22

4шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

23

851444C1

PIN

- pivot, bucket cylinder boom

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

12шт.

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

24

851606C11

TUBE

- hydraulic cylinder, bucket dump, no longer available

1шт.

25

851469C11

TUBE

- bucket roll back, boom jumper hose to tractor valve hose

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

27

REF

INSTRUCTION

PIN, bucket cylinder rod and boom, for service, Serial Range: refer-buckets

4шт.

28

675297R92

HOSE

- bucket dump and roll back tubes to tractor valve, 30 inch long

2шт.
