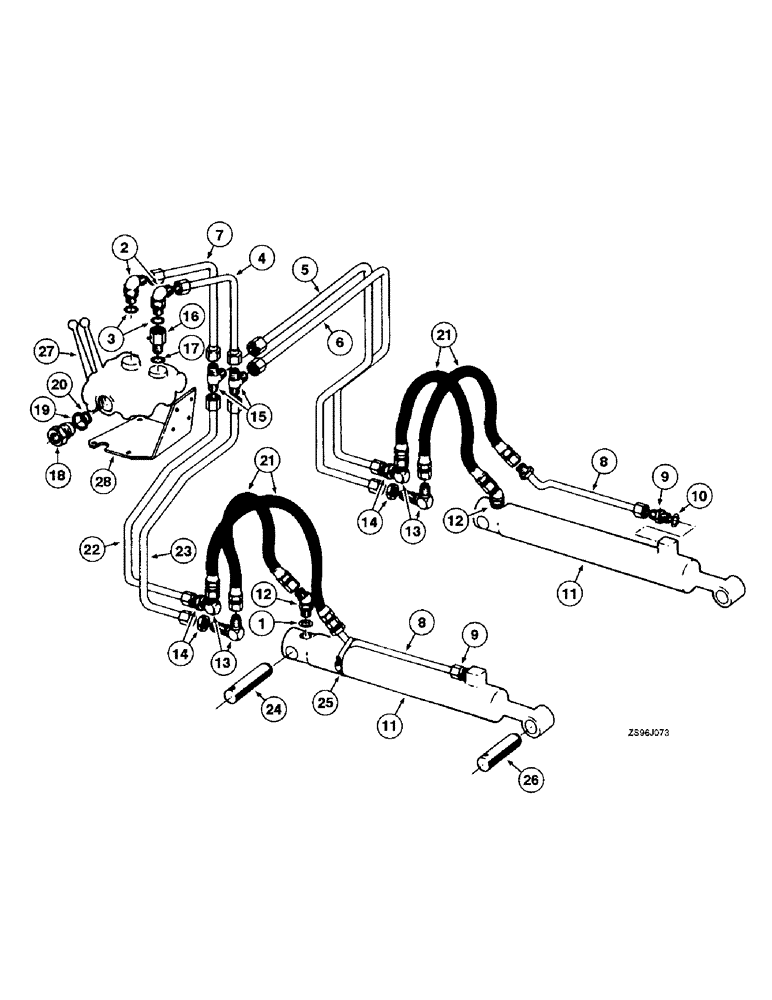

Запчасти Case IH 1850 (7-36) - BOOM LIFT HYDRAULIC SYSTEM

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

4

851507C11

TUBE,.5" OD x 5.2", 3.6" L

- tee to control valve port, raise

1шт.

5

851510C11

TUBE,.5" OD

- bulkhead to tee LH, lower, no longer available

1шт.

6

851509C11

TUBE,.5" OD

- bulkhead to tee LH, raise

1шт.

7

851511C11

HYD TUBE,.5" OD x 6", 2.4" L

TUBE - tee to control valve port lower

1шт.

8

851608C11

TUBE,.5" OD

- hydraulic cylinder front port to hose, lower, no longer available

2шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

11

851495C91

CYLINDER

ASSEMBLY - boom lift, hydraulic cylinder, parts list Figure 7-69.

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch (replaces 109462)

4шт.

12

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, 45 degree adjustable 1/2 inch tube 3/4-16 thread (Replaces 9411105)

2шт.

13

469997R1

ELBOW

- bulkhead

4шт.

14

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, (Replaces 9403294) Blkhd, 3/4"-16

4шт.

15

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare branch x flare (replaces 9402982)

2шт.

16

675453R91

VALVE

RESTRICTOR ASSEMBLY - control valve, raise port, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

851635C91

KIT

- power beyond conversion, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - control valve, order kit 851635C91

1шт.

19

D48086

SEAL,1.358" ID

SEAL - conversion plug (replaces 850249C1)

1шт.

20

666218R1

SEAL

SEAL - sleeve

1шт.

21

131129H1

HOSE

- lift hydraulic cylinder, raise and lower, 24 inch long, (replaces 875846C91)

4шт.

22

851512C11

TUBE,.5" OD

- bulkhead to tee, lower RH, no longer available

1шт.

23

851508C11

TUBE,.5" OD

- bulkhead to tee, raise RH, no longer available

1шт.

24

851444C1

PIN

- pivot, hydraulic cylinder base

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

12шт.

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

25

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, hydraulic cylinder lower tube (replaces 279029R91)

2шт.

26

675264R1

SHAFT

PIN - hydraulic cylinder rod

2шт.

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

27

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

28

851535C1

BRACKET

- hydraulic control valve support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.
