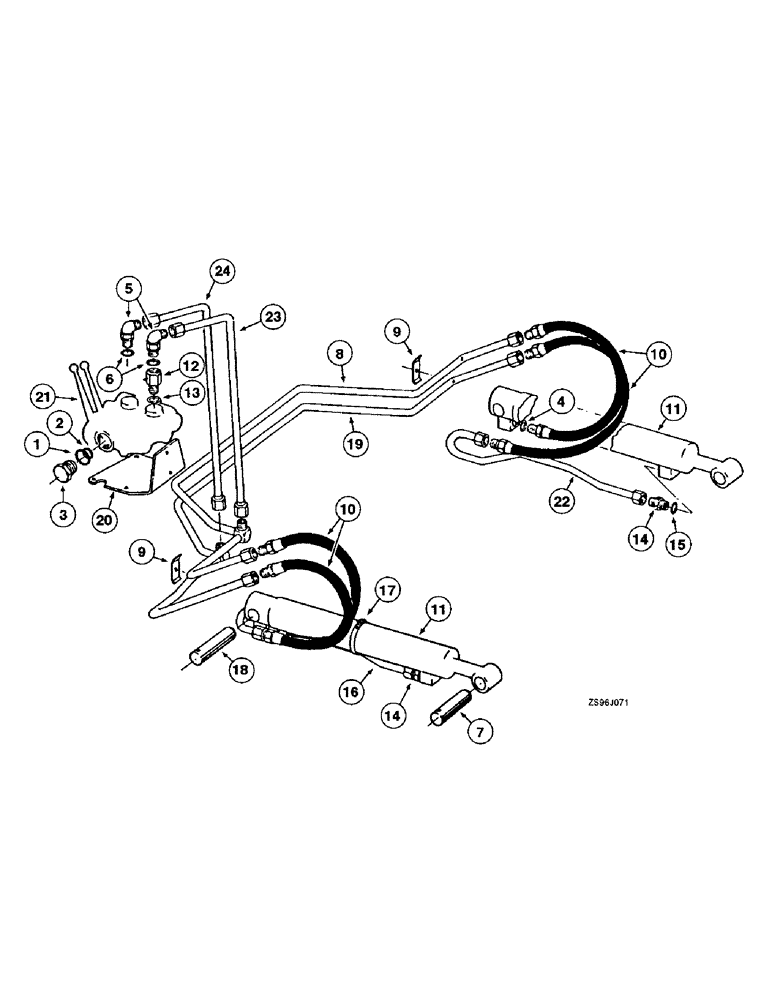

Запчасти Case IH 1850 (7-32) - BOOM LIFT HYDRAULIC SYSTEM

851636C91

KIT

- power beyond port convesion, Includes: Ref. 1 - 3

1шт.

1

D48086

SEAL,1.358" ID

SEAL - conversion plug valve assembly (replaces 850249C1)

1шт.

2

666218R1

SEAL

SEAL - plug valve assembly

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - valve power beyond port, order kit 851636C91

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570885R1)

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570885R1)

1шт.

7

675264R1

SHAFT

PIN - hydraulic cylinder rod

2шт.

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

8

851616C11

TUBE,.5" OD

- hydraulic lift cylinder cross-over, raise

1шт.

9

379045R1

CLAMP

- hose, cross-over tube, dual

2шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (replaces 180081)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

10

851577C92

HOSE

- 30 inch, lift cylinder, raise and lower

4шт.

11

850782C92

CYLINDER

ASSEMBLY - 2 ID x 28-11/16 stroke, parts list Figure 7-72, no longer available, order 1272453C1 cylinder, see below

2шт.

11

1272453C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 ID x 28-11/16 stroke, parts list Figure 7-72

2шт.

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

12

675453R91

VALVE

RESTRICTOR ASSEMBLY - raise, hydraulic valve port, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570885R1)

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 15

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570885R1)

1шт.

16

851614C11

HYD TUBE

TUBE - RH, hydraulic cylinder front port to hose lower

1шт.

17

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, hydraulic cylinder lower tube (replaces 279029R91)

2шт.

18

851444C1

PIN

- pivot, hydraulic cylinder base

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

12шт.

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

19

851617C11

HYD TUBE,.5" OD

TUBE - hydraulic lift cylinder cross-over, lower

1шт.

20

851621C1

SUPPORT

- hydraulic control valve, no longer available

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces 180079)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

22

851613C11

HYD TUBE,.5" OD

TUBE - LH, hydraulic cylinder front to hose, lower

1шт.

23

851619C11

TUBE,12.70 mm OD x 13.7, 5.7 mm L

- cross-over tube to control valve, raise

1шт.

24

851618C11

TUBE,12.70 mm OD x 13.7, 5.7 mm L

- cross-over tube to control valve, lower

1шт.
