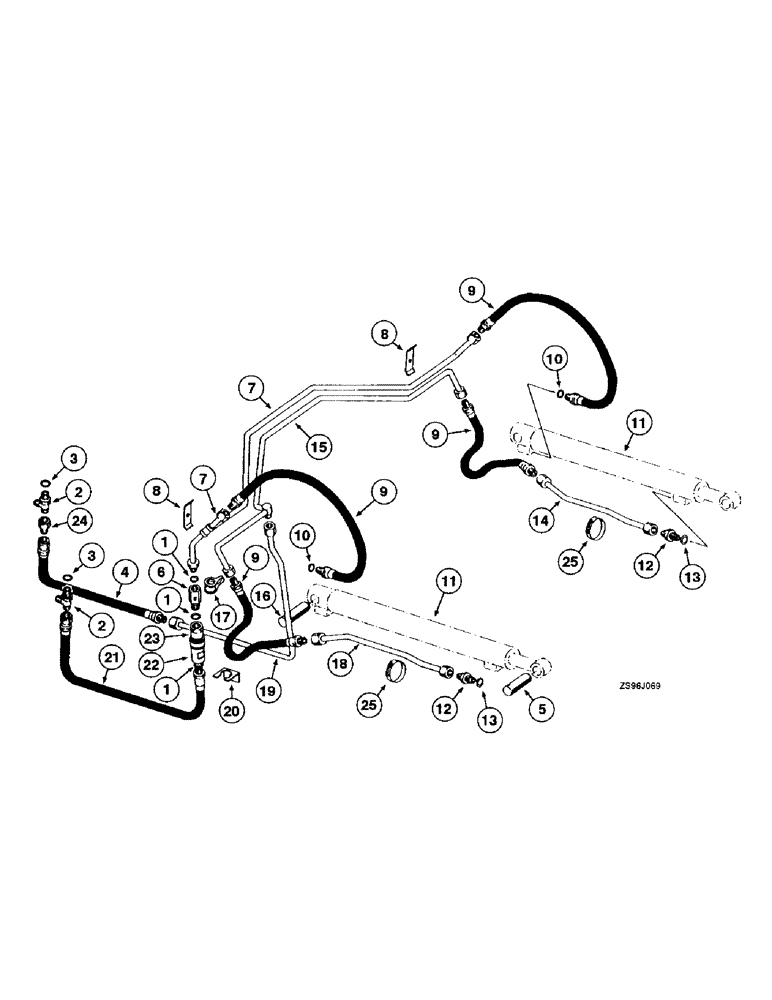

Запчасти Case IH 1850 (7-28) - BOOM LIFT HYDRAULIC SYSTEM

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

3шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss (replaces 9411132), Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

4

675297R92

HOSE

- boom lift cylinder tube to tractor valve, 30 inch long

1шт.

5

675264R1

SHAFT

PIN - cylinder rod

2шт.

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

6

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - raising cross over hydraulic tube flow

1шт.

7

851467C11

HYD TUBE,.5" OD

TUBE - boom lift, hydraulic cylinder cross-over raising

1шт.

8

379045R1

CLAMP

- hose, cross-over hydraulic tubes dual

2шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Replaces 180181) Hex, 1/2"-13 x 2", G5

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

9

851577C92

HOSE

- hydraulic cylinder raise and lower, 30 inch long

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

2шт.

11

850782C92

CYLINDER

ASSEMBLY - 2 ID x 28-11/16 stroke, parts list Figure 7-72, no longer available, order 1272453C1 cylinder, see below

2шт.

11

1272453C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 ID x 28-11/16 stroke, parts list Figure 7-72

2шт.

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

14

851554C11

TUBE

- LH, hydraulic cylinder front port to hydraulic hose lowering, no longer available

1шт.

15

851468C11

TUBE,.5" OD

- boom lift, hydraulic cylinder cross-over lowering, no longer available

1шт.

16

851444C1

PIN

- pivot, hydraulic cylinder base

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

12шт.

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

17

373220R1

PLUG

- dust, plastic

1шт.

17

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

1шт.

18

851555C11

TUBE

- RH, hydraulic cylinder front port to hose lowering, no longer available

1шт.

19

851466C11

TUBE,.5" OD

- boom lift hydraulic cylinder cross-over lowering to tractor valve hose, no longer available

1шт.

20

851569C1

ANGLE

- circuit disconnect retaining coupler

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

21

D37343

HOSE

- lift cylinder raise coupler to tractor valve, 43 inch long (replaces 850584C91), no longer available

1шт.

22

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (replaces 395150R91)

1шт.

23

1272399C2

QUICK MALE COUPLING

COUPLER - self-sealing, male, 7/8 inch NF, poppet type (replaces 395149R1)

1шт.

24

851442C1

CONNECTOR, ELEC

CONNECTOR - hose boom lift

1шт.

25

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, hydraulic cylinder lowering tube (replaces 279029R91)

2шт.
