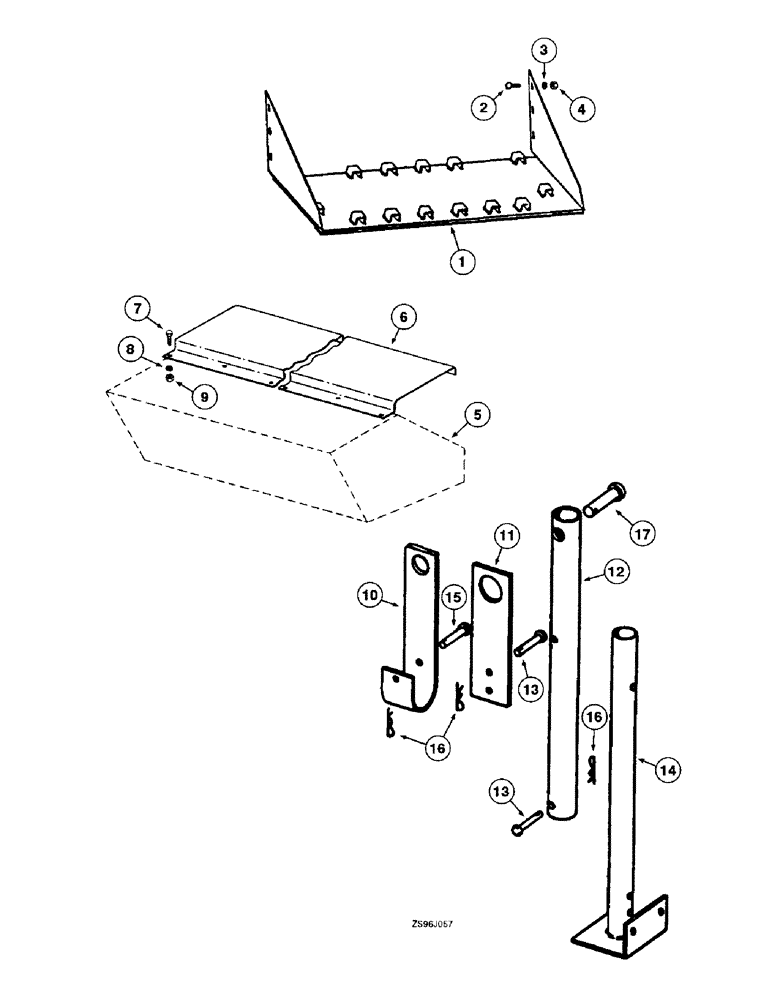

Запчасти Case IH 1850 (7-24) - TINE COVER

1

REF

INSTRUCTION

COVER ASSEMBLY - tine, 72 inch, manure fork and general purpose bucket, for service order on machine order form

1шт.

1

REF

INSTRUCTION

COVER ASSEMBLY - tine, 72 inch, manure fork and general purpose bucket, for service order on machine order form

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch (replaces 598813R1)

6шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

6шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

5

REF

INSTRUCTION

BUCKET - 60 or 72 inch manure fork, spillguard

1шт.

5

REF

INSTRUCTION

BUCKET - 65, 72 or 84 inch material, spillguard

1шт.

6

REF

INSTRUCTION

GUARD - bucket spill, serviced only as a machine attachment

1шт.

7

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

SCREW - hex washer head, self-tapping, 3/8 x 7/8 inch (replaces 850680C1), spillguard

9шт.

8

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377), Spillguard 3/8"-16, G5

9шт.

9

492-11038

LOCK WASHER,3/8"

(Replaces 120382), Spillguard 3/8"

9шт.

10

851637C1

SUPPORT

- hydraulic lift cylinder lock, for retaining cylinders when loader is disconnected, parking stand attachment

2шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch (replaces 189295), parking stand attachment

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377), Parking stand attachment 3/8"-16, G5

2шт.

11

851343C1

BAR

- stand brace, parking attachment

2шт.

12

851599C1

PIPE

- stand extension, parking attachment

2шт.

13

597078R1

PIN

- headed, 3/8 x 2-1/4 inch, parking stand attachment

4шт.

14

851595C1

STAND

- boom parking, stand attachment

2шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch (replaces 851843C1), parking stand attachment

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214), parking stand attachment 5/16"

2шт.

15

189654C1

PIN

- 3/8 x 3-1/4 plain, hydraulic type 1 (replaces Q595), parking stand attachment

2шт.

16

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - locking, cotter, parking stand attachment

6шт.

17

22980R1

HEADED PIN,3/4" x 4 1/2"

PIN - 3/4 x 4-1/2 inch type 1, parking stand attachment

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (Replaces 103420), parking stand attachment

2шт.
