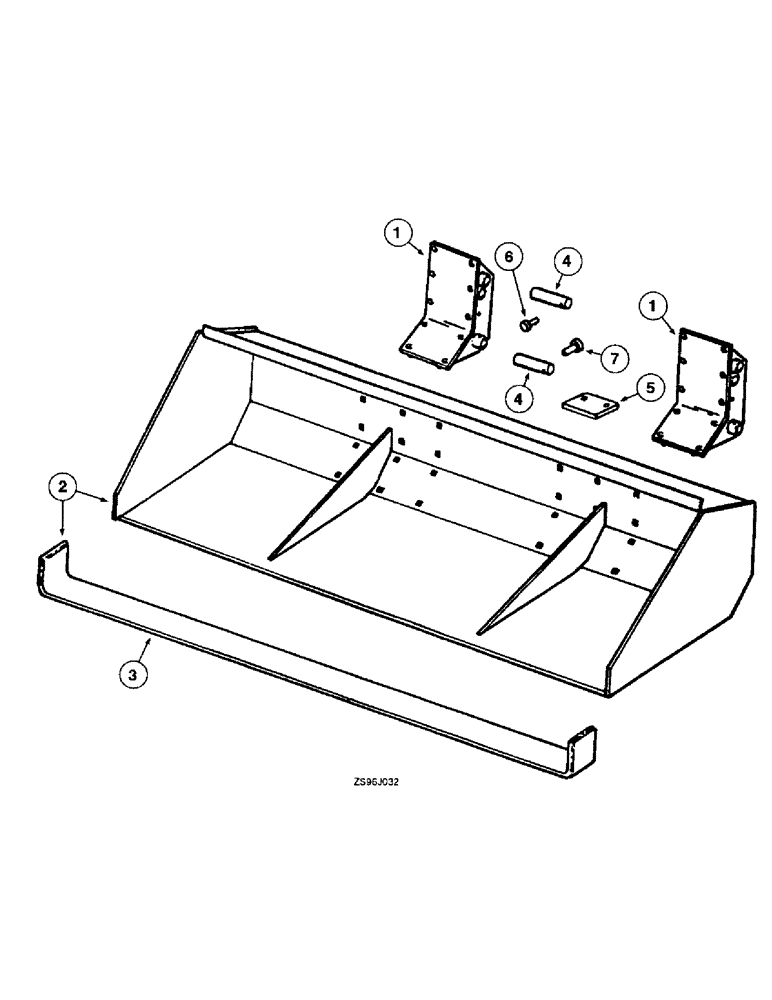

Запчасти Case IH 1850 (7-18) - MATERIAL BUCKET, WITH TWO PIECE MOUNTING BRACKETS

1

REF

INSTRUCTION

SUPPORT ASSEMBLY - bucket mounting, serviced only as a machine attachment

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

2

REF

INSTRUCTION

BUCKET - 84 inch, material, serviced only as a machine attachment

1шт.

3

851806C1

BLADE

EDGE - cutting, 84 inch

1шт.

4

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket (replaces 851771C1)

4шт.

5

851841C1

BAR

- cylinder stop, no longer available

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

6

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch, bucket pivot (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

7

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch, cylinder pivot (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

851476C1

SUPPORT

- bucket hinge, LH, inner, order for service for left-hand side

1шт.

851477C1

SUPPORT

- bucket hinge, LH, outer, order for service for left-hand side

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch (replaces 485734R1), order for service for left-hand side

6шт.

851922C1

CHANNEL

- bucket stop, bucket stop, order for service for left-hand side

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124), order for service for left-hand side

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377), Order for service for LH side 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382), Order for service for LH side 3/8"

4шт.

851918C2

SUPPORT

- bucket hinge, RH, inner, order for service for right-hand side

1шт.

851919C2

SUPPORT

- bucket hinge, RH, outer, order for service for right-hand side

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch (replaces 485734R1), order for service for right-hand side

6шт.

851922C1

CHANNEL

- bucket stop, order for service for right-hand side

1шт.
