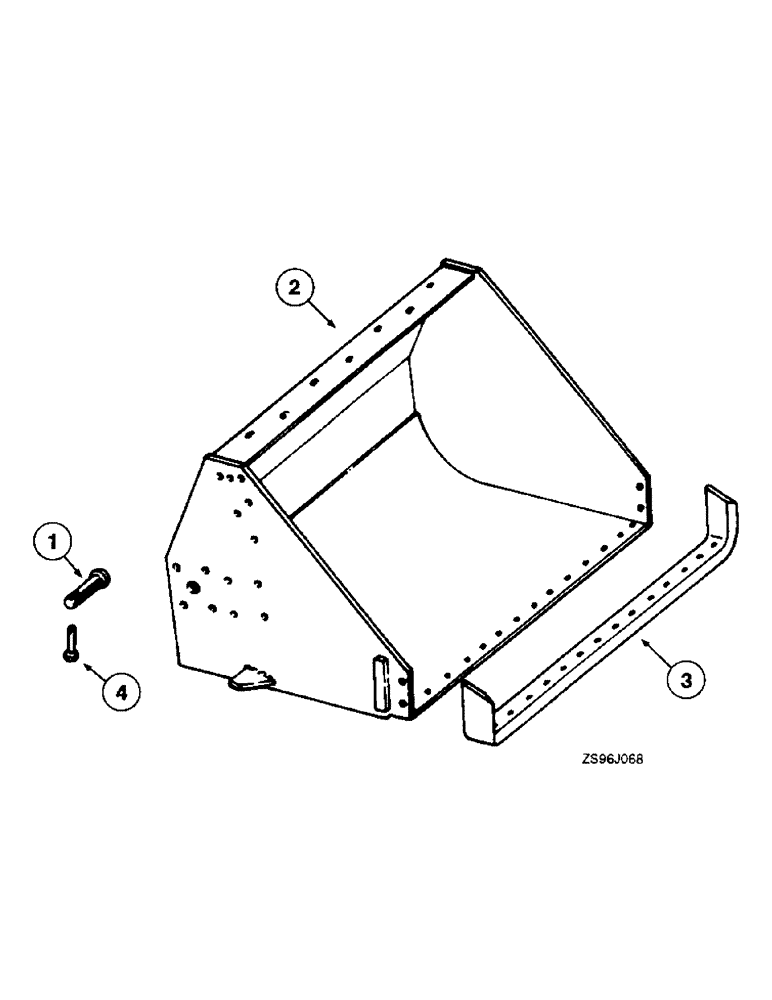

Запчасти Case IH 1850 (7-16) - MATERIAL BUCKET, WITH WELDED MOUNTING BRACKETS

1

851506C1

PIN

- bucket, cylinder rod and boom

4шт.

2

REF

INSTRUCTION

BUCKET - 65 inch material, serviced only as a machine attachment

1шт.

3

851475C1

BLADE

- 65 inch cutting, no longer available

1шт.

4

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch, bucket pivot (replaces 378480R1)

2шт.

4

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch, cylinder pivot (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.
