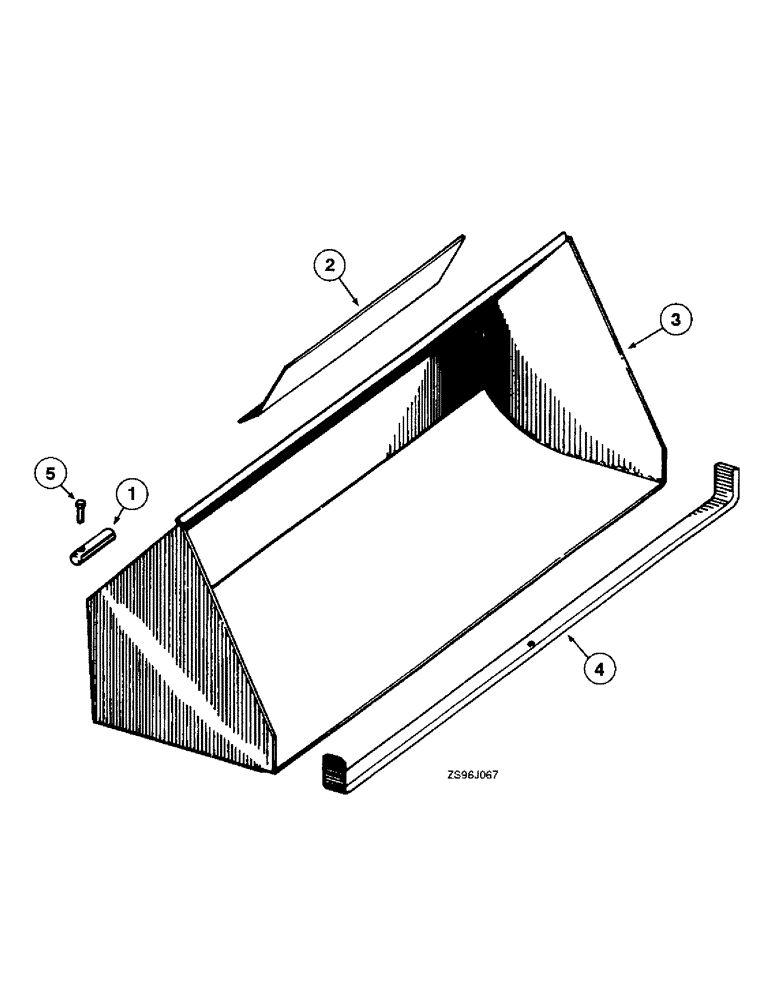

Запчасти Case IH 1850 (7-14) - SNOW BUCKET, WITH WELDED MOUNTING BRACKETS

1

851506C1

PIN

- bucket, cylinder rod and boom

4шт.

2

851628C1

GUARD

- spill, no longer available

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces 180121) Hex, 3/8"-16 x 7/8", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

12шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

12шт.

3

REF

INSTRUCTION

BUCKET - 84 inch snow, serviced only as a machine attachment

1шт.

4

851612C1

BLADE

- snow bucket cutting

1шт.

5

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

5

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.
