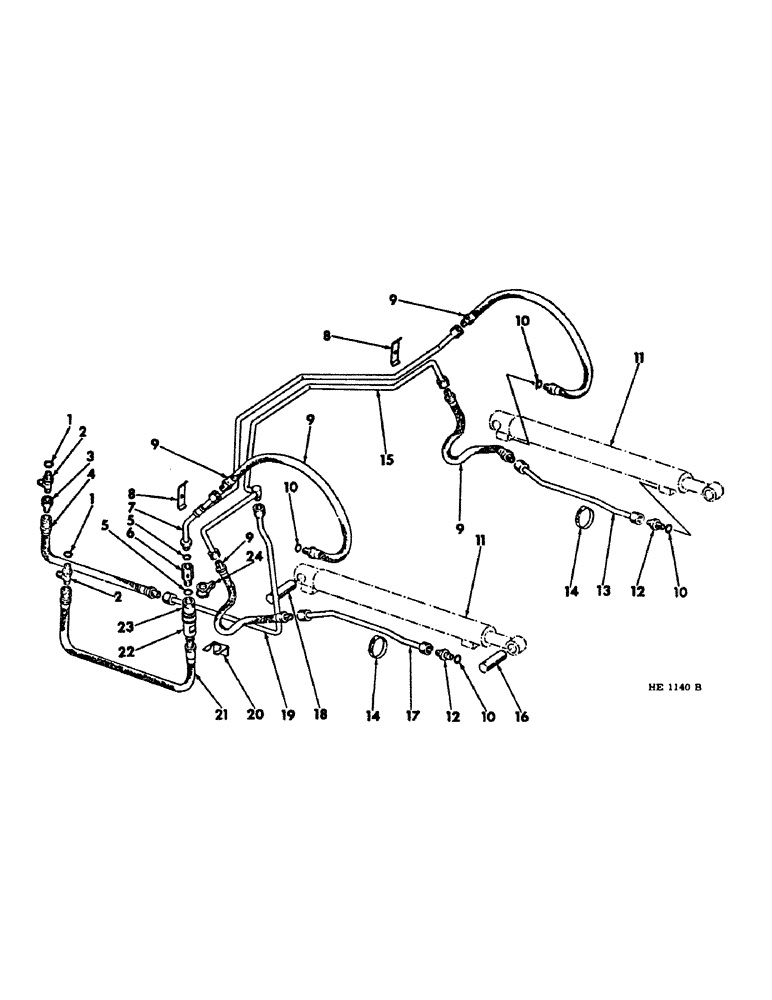

Запчасти Case IH 1550 (B-06) - BOOM LIFT HYDRAULIC SYSTEM

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

tractor valve tee

2шт.

2

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8" - 90deg. tractor valve ports

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve port tee

2шт.

3

851442C1

CONNECTOR, ELEC

CONNECTOR, 7/8" to 3/4" on tee in tractor valve port lowering circuit reducing

1шт.

4

675297R92

HOSE

hyd lift cyl lowering circuit hyd tube to tractor hyd valve

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

raise circuit restrictor

1шт.

6

851594C91

CHECK VALVE

RESTRICTOR, raising circuit cross-over tube flow

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

flow restrictor

1шт.

7

851467C11

HYD TUBE,.5" OD

TUBE, hyd lift cyl raising circuit cross-over

1шт.

8

379045R1

CLAMP

hyd cross-over tube dual

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

851577C91

HOSE

hyd lift cyl raising & lowering circuit

4шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

boom lift hyd cyl front and rear port

4шт.

11

851505C91

CYLINDER

boom lift hyd (for component parts of this assembly refer to "boom lift hydraulic cylinder" in section "B" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90 deg. elbow

4шт.

12

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4" hyd lift cyl front port

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

front port union

2шт.

13

851554C11

TUBE

LH hyd lift cyl front port to hyd hose lowering circuit

1шт.

14

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, lowering circuit hyd tube

2шт.

15

851468C11

TUBE,.5" OD

hyd lift cyl lowering circuit cross-over

1шт.

16

675264R1

SHAFT

BAR, lift hyd cyl rod or front

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

17

851555C11

TUBE

RH hyd lift cyl front port to hyd hose lowering circuit

1шт.

18

851506C1

PIN

BAR, lift hyd cyl base or rear

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

12шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

19

851466C11

TUBE,.5" OD

hyd lift cyl cross-over lowering circuit to tractor valve hose

1шт.

20

851569C1

ANGLE

circuit disconnect retaining coupler

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

850584C91

HOSE ASSY.

HOSE, hyd lift cyl raising circuit coupler to tractor valve

1шт.

22

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female hyd

1шт.

23

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male hyd

1шт.

24

373220R1

PLUG

CAP, quick-disconnect coupler dust

1шт.
