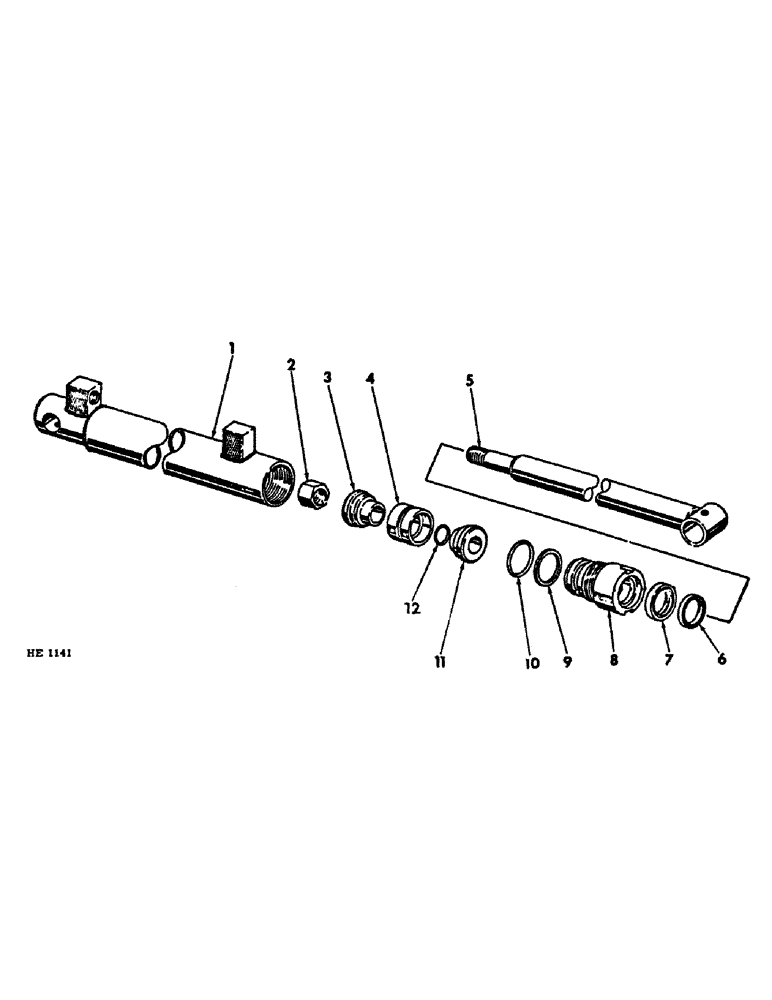

Запчасти Case IH 1550 (B-05) - BOOM LIFT HYDRAULIC CYLINDER

851505C91

CYLINDER

boom lift hyd (composed of all parts listed below) (illustration and listing is for one (1) hyd cyl - 2 cyls required per loader)

2шт.

1

850576C1

BODY

hyd cyl

1шт.

2

811850C1

NUT

7/8" - NF special hex-lk

1шт.

3

850580C1

PISTON

hyd cyl rod rear half

1шт.

4

SEAL, 2" hv-duty gland (for service order 1-850581C91, kit) (NSS)

1шт.

5

850577C1

ROD

hyd cyl piston

1шт.

6

SEAL, 1-1/2" dia cyl head dust (for service order 1-850581C91, kit) (NSS)

1шт.

7

SEAL, 1-1/2" dia gland (for service order 1-850581C91, kit) (NSS)

1шт.

8

850578C1

HEAD, boom lift hyd cyl

1шт.

9

RING, 2" dia hyd cyl back-up (for service order 1-850581C91, kit) (NSS)

1шт.

10

O-RING, 2" dia (for service order 1-850581C91, kit) (NSS)

1шт.

11

850579C1

PISTON

hyd cyl rod front half

1шт.

12

O-RING, 7/8" dia hyd cyl piston (for service order 1-850581C91, kit)

1шт.

850581C91

SEAL KIT

boom lift hyd cyl seal & o-ring service composed of: (1) o-ring (NSS), (1) o-ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) seal (NSS), (1) seal (NSS)

1шт.
