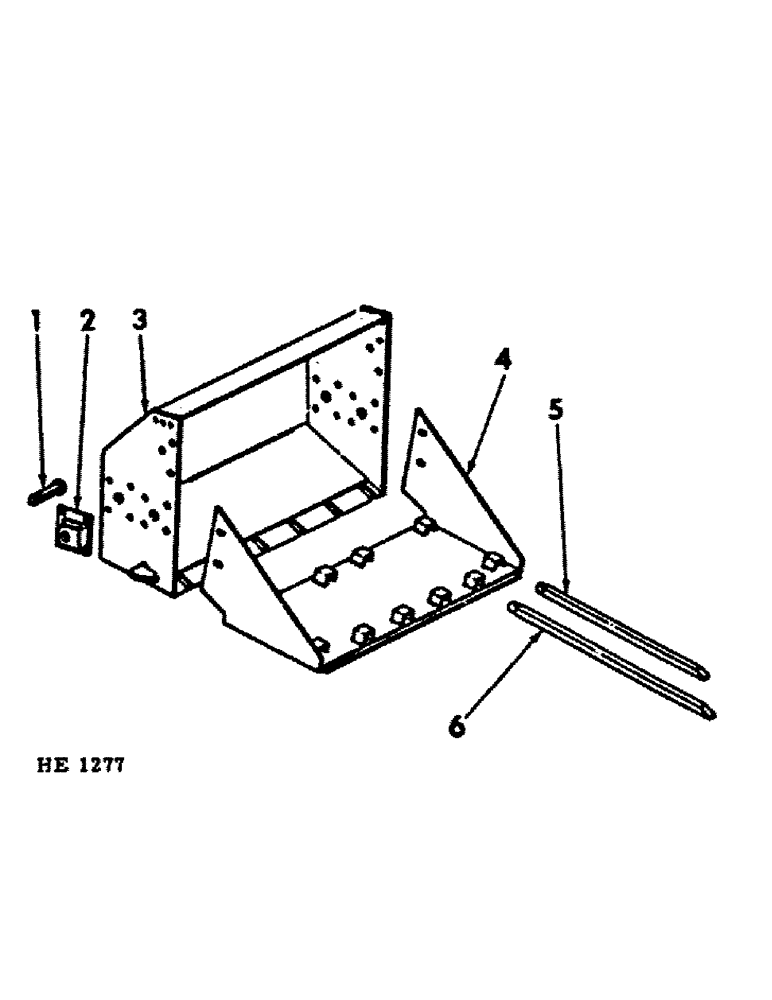

Запчасти Case IH 1550 (B-03) - MANURE BUCKET AND TINE COVER

1

468234R1

PIN

manure bucket pivot

2шт.

446284

WASHER, 1-3/16 x 2-1/2" x .165"

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

2

467248R11

BRACKET, manure bucket pivot

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

BUCKET, 40" manure hyd control (order on machine order form)

1шт.

3

BUCKET, 40" manure mechanical control (order on machine order form)

1шт.

4

851534C1

COVER, manure bucket tine

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4" crg (when loader equpped w/mechanical bucket control)

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(when loader equipped w/hyd bucket control) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

851558C1

FINGER

TINE, manure fork outer

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

6

851557C1

FINGER

TINE, manure fork inner

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

4шт.
