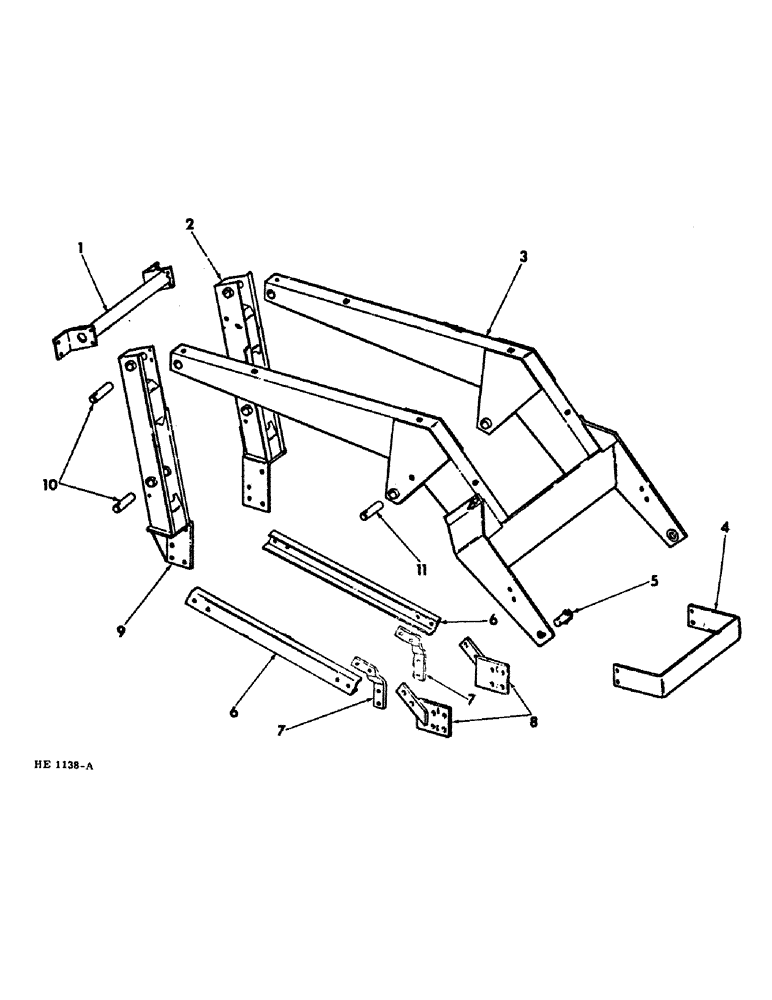

Запчасти Case IH 1550 (B-02) - SUB-FRAME AND BOOM

1

851565C1

MEMBER

CROSSMEMBER, sub-frame

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

851550C1

FUNNEL

FRAME, sub LH

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

4шт.

3

851492C1

BOOM, loader bucket

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" drive-type lub

2шт.

4

851528C1

GUARD

tractor grille

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

4шт.

5

468234R1

PIN

bucket pivot

2шт.

446284

WASHER, 1-3/16 x 2-1/2 x .165"

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

6

851517C1

CHANNEL

diagonal support (2) (for use w/loader built 1971-72 season on 454 tractor) (for use w/loader built 1972 season & since on 454 & 574 tractors)

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

271766

TUBE

BOLT, 3/4 x 1-3/8"

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

23245R1

WASHER

.781 x 1.750 x .164"

6шт.

280954

NUT,3/4"-10, G5

8шт.

6

851522C1

CHANNEL

diagonal support LH (for loader built 1971-72 season on 574 tractor) (when service stock is exhausted, order 1 - 851517C1 channel & 1 - 850730C1, support)

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

280954

NUT,3/4"-10, G5

4шт.

6

851523C1

CHANNEL

diagonal support RH (for loader built 1971-72 season on 574 tractor) (when service stock is exhausted, order 1-851517C1, channel & 1 - 850731C1, support)

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

280954

NUT,3/4"-10, G5

4шт.

7

851513C1

SUPPORT

channel front end LH (when service stock is exhausted, for 454 tractor order 1 - 850730C1, support; for 574 tractor order 1 - 850730C1, support, & 1 - 851517C1, channel)

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

7

851514C1

SUPPORT

channel front end RH (when service stock is exhausted, for 454 tractor order 1 - 850731C1, support; for 574 tractor order 1 - 850731C1, support & 1 - 851517C1, channel)

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

8

850730C1

SUPPORT

channel front end LH (1972 season & since)

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

23245R1

WASHER

.781 x 1.750 x .164"

2шт.

8

850731C1

SUPPORT

channel front end RH (1972 season & since)

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

23245R1

WASHER

.781 x 1.750 x .164"

2шт.

9

851551C1

FRAME

sub-frame RH

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

4шт.

10

851506C1

PIN

BAR, boom pivot & hyd lift cyl rear

4шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

4шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

4шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

4шт.

11

378479R1

SHAFT

PIN, lift cyl rod

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.
