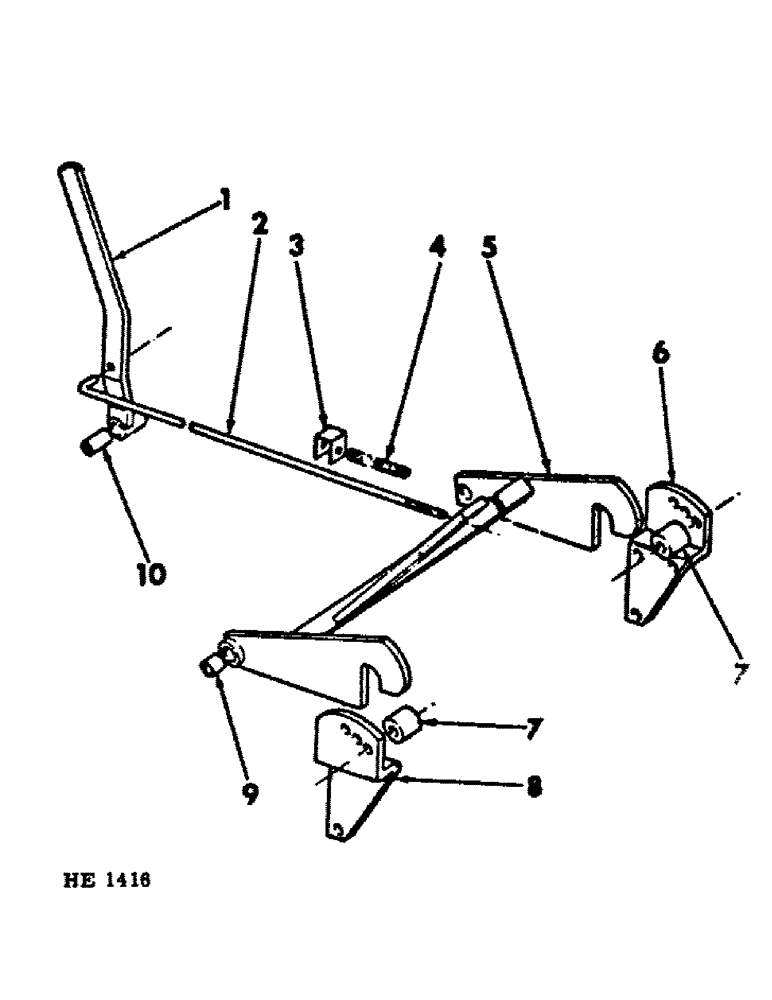

Запчасти Case IH 1550 (B-26) - MECHANICAL LATCH TRIP BUCKET CONTROL

1

675290R11

HANDLE, bucket release

1шт.

2

675287R1

ROD, bucket latch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065"

4шт.

17044R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8"

1шт.

3

652583R1

CLIP, latch rod

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

134572

BRAKE FLUID TANK

NUT, 3/8" sq

2шт.

4

450637R2

SPRING, latch rod

2шт.

5

675288R91

LATCH, bucket

1шт.

6

652437R1

BRACKET, bucket latch LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

7

450596R1

SPACER

ROLLER, latch

2шт.

650945R1

PIN

1/2 x 2-5/8" std-hd-dld

2шт.

599744R1

AXLE PIN

C-PIN, quick-attachable

2шт.

8

652438R1

BRACKET, bucket latch RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

9

600728R1

BUSHING

SPACER, bucket latch

2шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8"

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

10

635308R2

BUSHING, handle

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

3шт.
