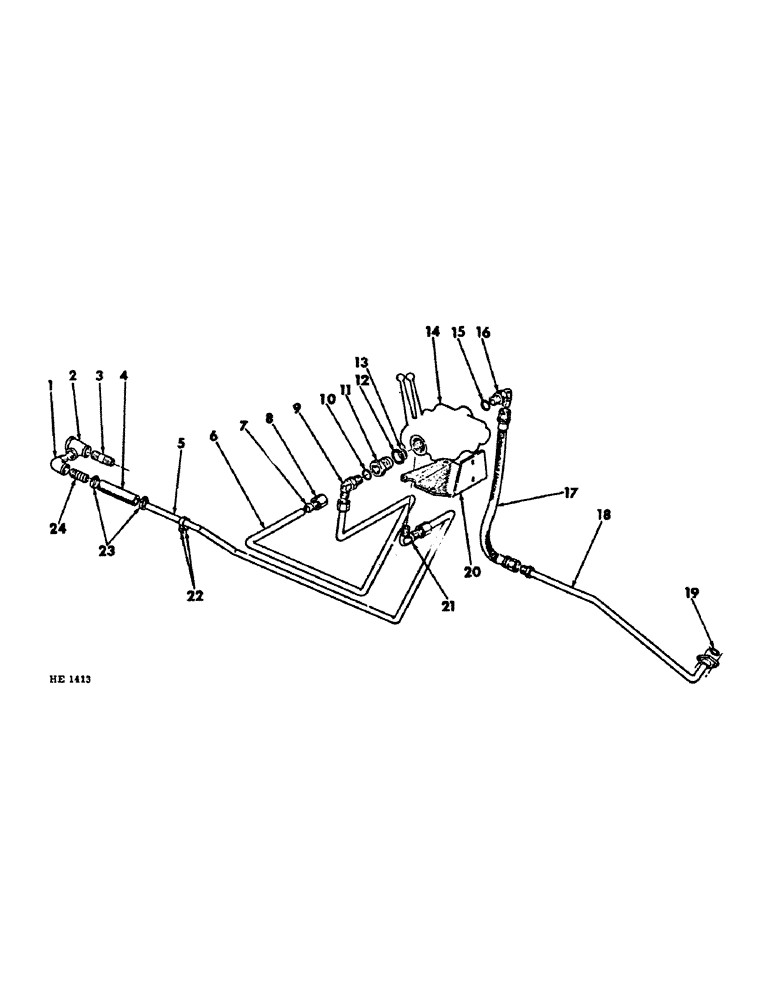

Запчасти Case IH 1550 (B-24) - 108686 TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" - 90 deg. street

1шт.

2

218246

BOLT

tractor hyd lift housing reducing

1шт.

3

192083

NIPPLE, 3/4 x 1-3/4" hyd lift housing

1шт.

4

319617R1

HOSE, hyd return

1шт.

5

851548C11

TUBE,.625" OD

hyd return

1шт.

6

851556C11

HYD TUBE,.5" OD

TUBE, power beyond port to tractor hitch

1шт.

7

705519R1

RING

1/2" tube nut sealing

1шт.

8

705520R1

NUT,0.69" Length

1/2" power beyond tube

1шт.

9

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8" - 90 deg. valve outlet power beyond port

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve port elbow

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

power beyond port elbow

1шт.

11

SLEEVE, hyd control valve power beyond port (for service order 1-851635C91. kit) (NSS)

1шт.

12

850249C1

SEAL

power beyond port

1шт.

13

616218R1

SEAL, control valve power beyond port

1шт.

14

851629C91

VALVE

hyd control (for component parts of this assembly, refer to "hydraulic control valve" in section B of this catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve inlet port elbow

1шт.

16

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8" - 90 deg. valve inlet port

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve inlet port elbow

1шт.

17

675846R91

HOSE ASSY.

HOSE, tractor hyd pump pressure

1шт.

18

850326C1

TUBE

tractor hyd pump pressure

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pressure tube

1шт.

19

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

hyd pump pressure tube

1шт.

20

851621C1

SUPPORT

hyd control valve

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

120376 5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

7/8" - 90 deg. valve outlet port

1шт.

22

676045R1

CLAMP

hyd return tube

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hyd return hose

2шт.

24

675307R1

FITTING

hyd return hose

1шт.

851635C91

KIT

hyd control valve power beyond conversion composed of (1) sleeve (NSS), (1) seal 850249C1, (1) seal 666218R1

1шт.
