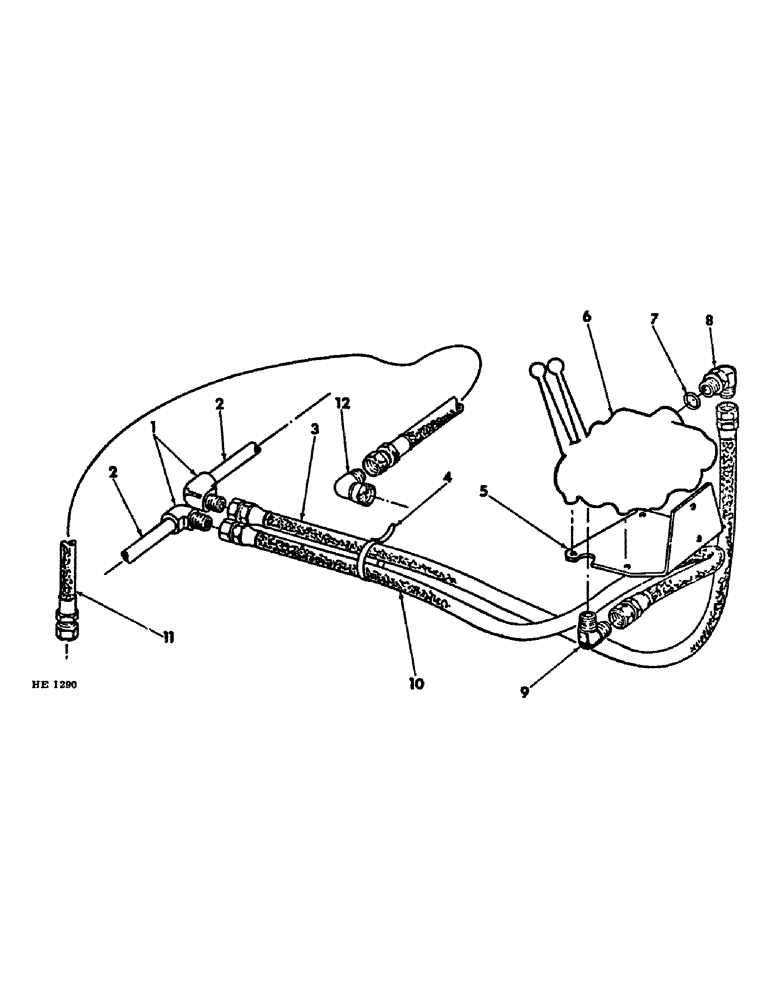

Запчасти Case IH 1550 (B-23) - TRACTOR TO LOADER VALVE HYDRAULIC SYSTEM

1

851631C1

FITTING

7/8" braze (to be brazed by dealer to existing tractor return tubes)

2шт.

2

TUBE, tractor hyd return (refer to TC-135 (454) or TC 136 (574) tractor catalog)

1шт.

3

851625C91

HOSE

tractor return tube to control valve return

1шт.

4

816502C1

STRAP

hyd hose tie

1шт.

5

851621C1

SUPPORT

hyd control valve

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

851629C91

VALVE

hyd control (for component parts of this assembly, refer to "hydraulic control valve" in section "B" of this catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve inlet port elbow

1шт.

8

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8" - 90deg. control valve inlet port

1шт.

9

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

7/8" - 90deg. return line control valve outlet port

1шт.

10

851625C91

HOSE

tractor return tube to control valve inlet pressure

1шт.

11

675974R91

HOSE ASSY.

HOSE, 40-1/2" in length tractor flow control valve housing elbow to tractor variable valve

1шт.

12

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2" - 90 deg. tractor flow control valve housing

1шт.
